Overview

Summary

• High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
• Cooling capacity: 18,000 BTU/H with 19 SEER2 / 9.4 EER2 efficiency
• Heating capacity: 19,000 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

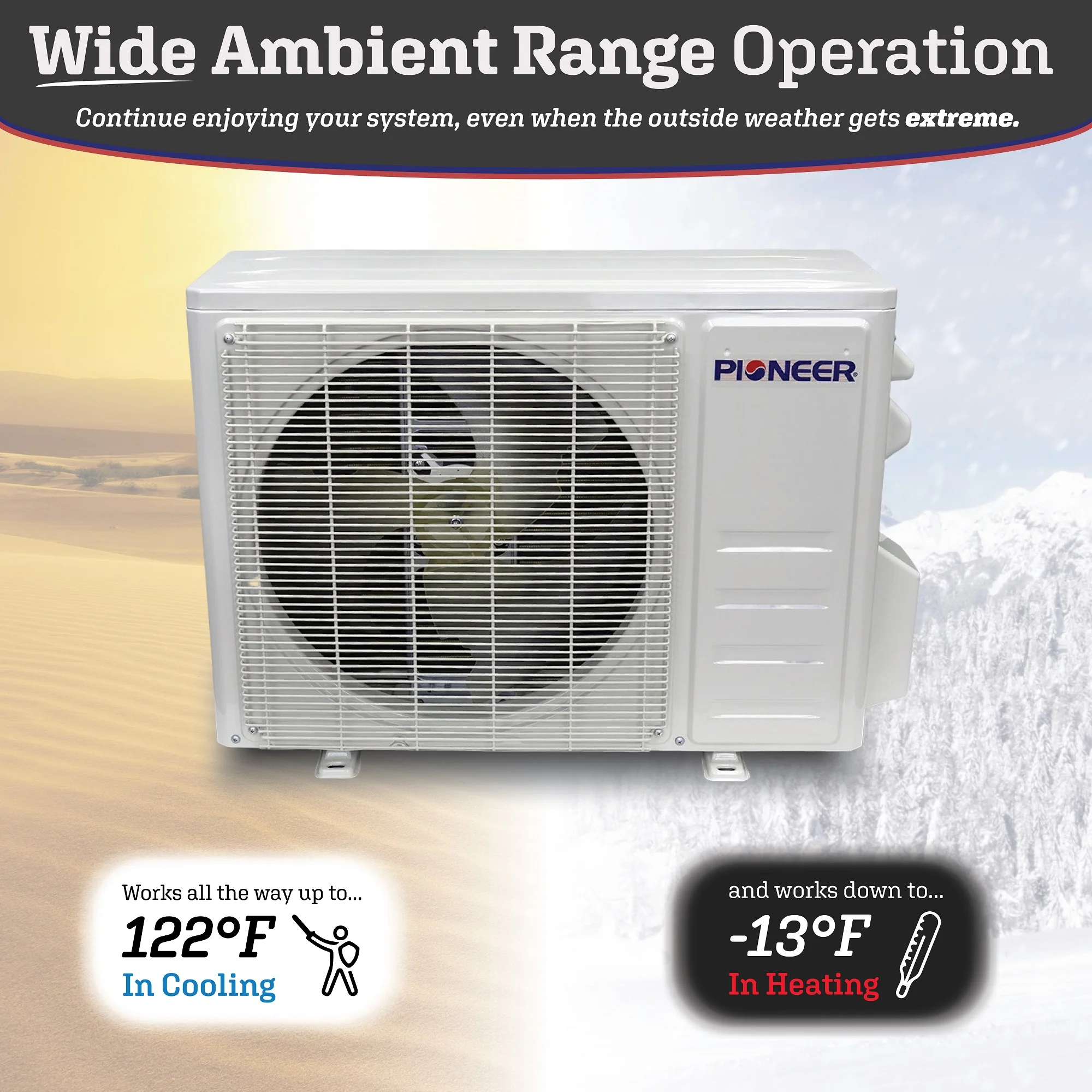

• Low Ambient Unit (-13°F)
• AHRI Estimated Annual Operating Costs:
• Cooling: $125.00
• Heating: $402.00

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control (with wall holder and batteries)
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Our Guarantee

• 5 years Warranty for Parts
• 5 years Warranty for Compressor

Features

[[FEATURES]]

Technical Information

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 18,000 BTU/h
• Cooling Capacity Range: 5,400~19,800 BTU/h
• Cooling SEER2: 19.0 BTU/W.h
• Cooling EER2: 9.4 BTU/W.h
• Heating Rated Capacity: 19,600 BTU/h
• Heating Capacity Range: 5,880~21,560 BTU/h
• Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
• Refrigerant Type: R410A/44
• Suitable Area: 350~650 Sq.F

Indoor Unit Data

• Part Number: WT018GLFI19HLE
• Air Flow (Hi/Med/Lo): 606 / 465 / 429 CFM
• Sound Level (Hi/Med/Lo): 45 / 40 / 35 dB(A)
• Net Dimensions (WDH): 39-3/4 x 8-5/8 x 12-3/8 Inches
• Carton Dimensions (WDH): 43-1/8 x 11-7/8 x 15-3/8 Inches
• Net / Gross Weight: 28.7 / 35.3 lbs

Outdoor Unit Data

• Part Number: YN018GLFI19RPE

• Breaker Needed: 20A (double-pole)
• Sound Level: 52 dB(A)
• Net Dimensions (WDH): 30-3/4 x 13-3/4 x 23-7/8 Inches
• Carton Dimensions (WDH): 35-3/8 x 15-7/8 x 25-3/4 Inches
• Net / Gross Weight: 73.8 / 84.9 lbs

Manuals & Documents

• Technical Brochure
• User & Installation Manual
• Service Manual

• AHRI Certificate

• Energy Guide
