Pioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V

Product image 1
1 / 6
+1

Pioneer® 48,000 BTU 18.9 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

  • Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
  • Cooling capacity: 48,000 BTU/H with 18.9 SEER2 / 9.3 EER2 efficiency
  • Heating capacity: 50,000 BTU/H with 10.0 HSPF2 / 2.5 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Floor/Ceiling Flex Mount Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Energy-Star Cold-Climate Certified
  • Customizable length copper line set with flare connections
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $352.00
    • Heating: $961.00
[[SERIES]]

What's Included

  • Indoor Unit

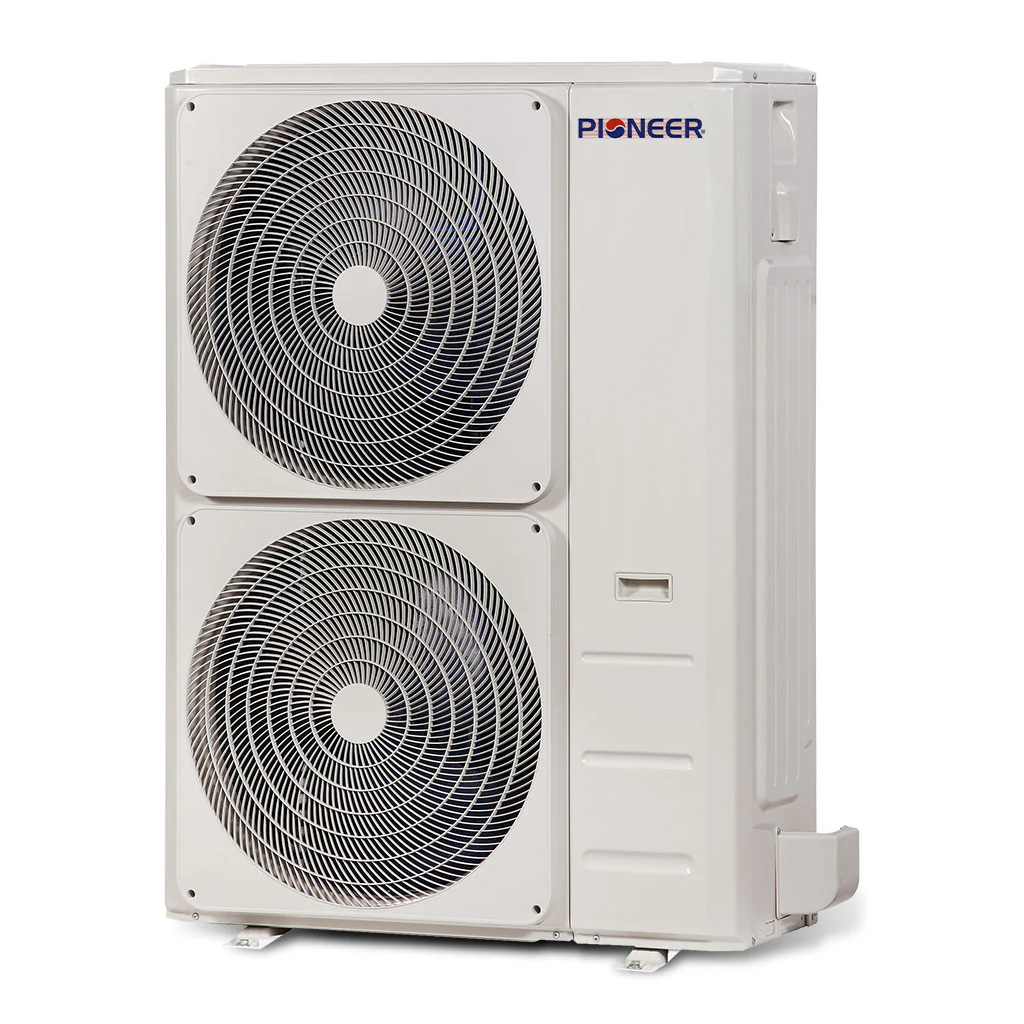

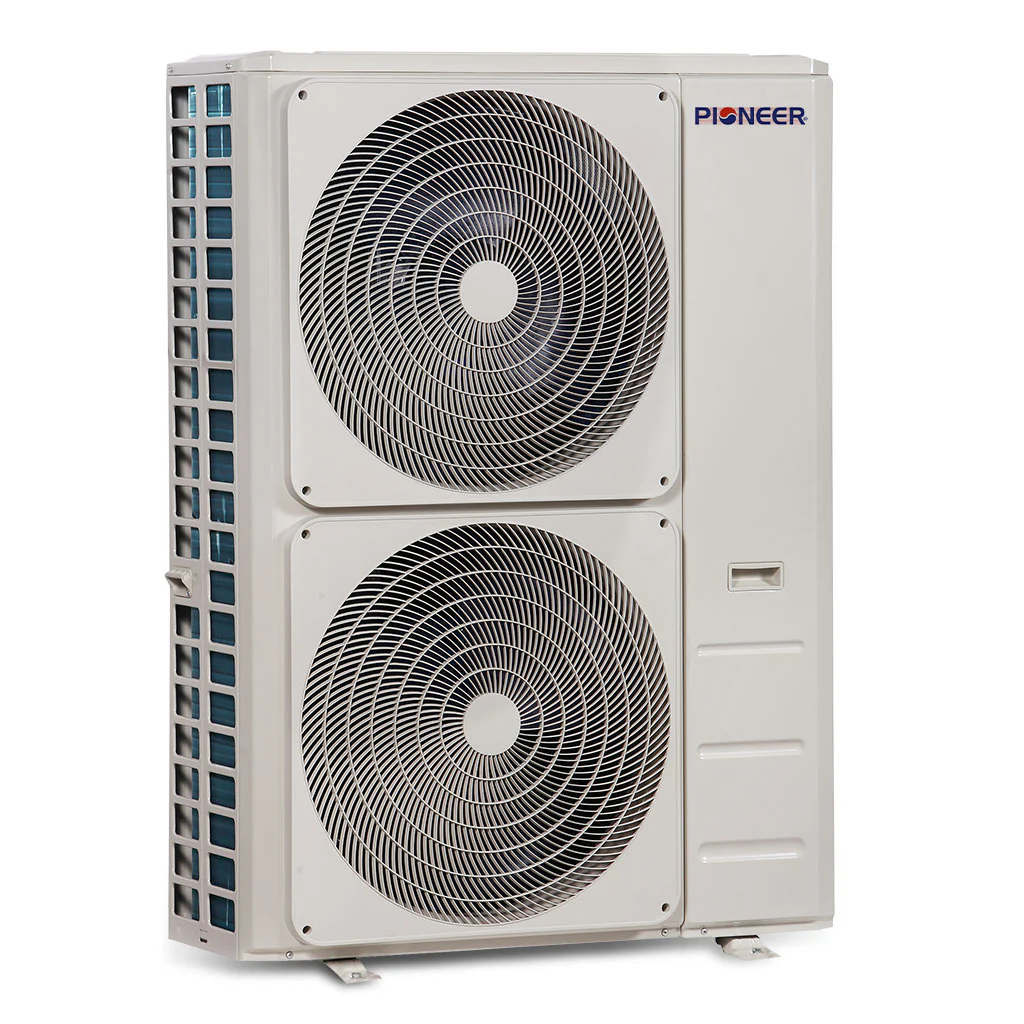

  • Outdoor Unit

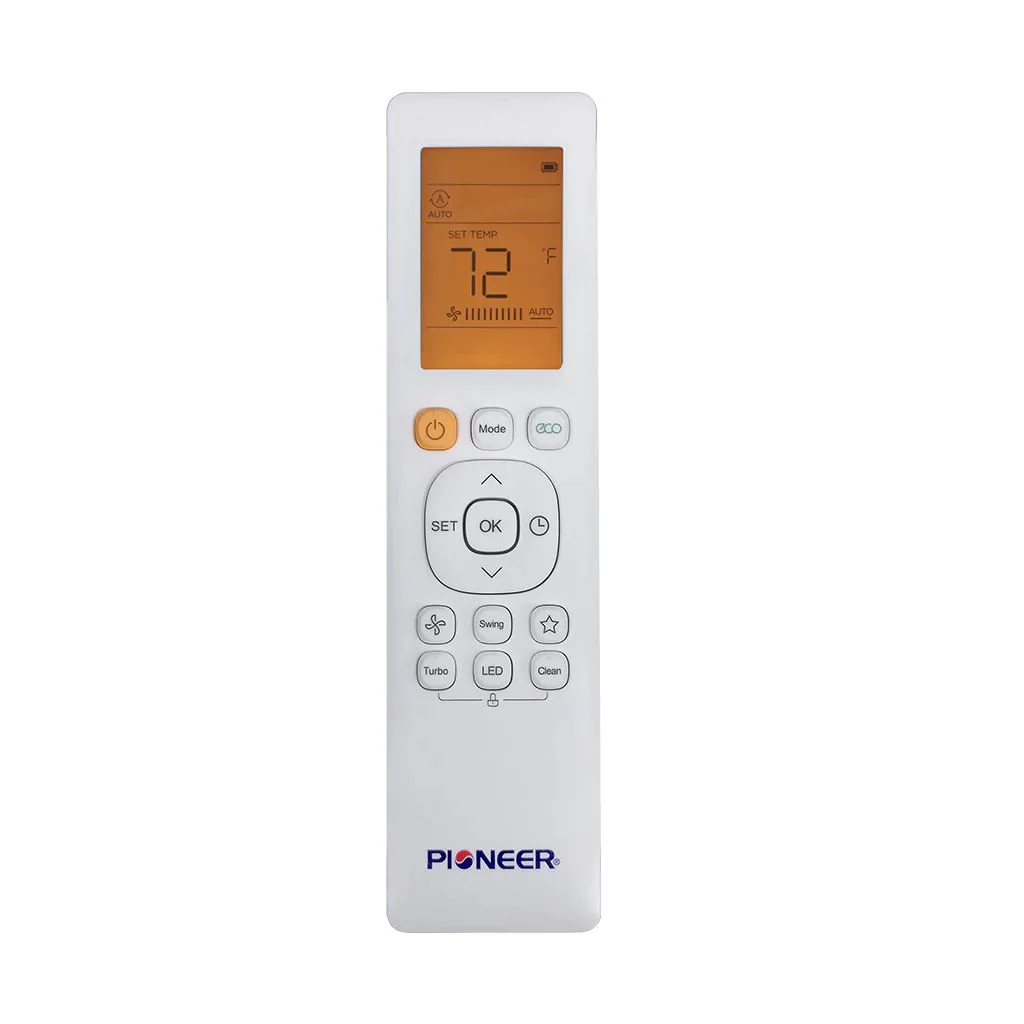

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 48,000 BTU/h
  • Cooling Capacity Range: 15,861~48,000 BTU/h
  • Cooling SEER2: 18.9 BTU/W.h
  • Cooling EER2: 9.3 BTU/W.h
  • Heating Rated Capacity: 50,000 BTU/h
  • Heating Capacity Range: 21,780~57,300 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 7.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 2.5 / 1.85 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 1,350~1,800 Sq.F

Indoor Unit Data

  • Model: UB048GMFILCFHD
  • Air Flow (Hi/Med/Lo): 1,320 / 1,200 / 1,120 CFM
  • Sound Level (Hi/Med/Lo): 55.0 / 49.5 / 44.5 dB(A)
  • Net Dimensions (WDH): 65.0 x 26.5 x 9.3 Inches
  • Carton Dimensions (WDH): 68.0 x 29.8 x 12.4 Inches
  • Net / Gross Weight: 87.7 / 102.3 Lbs

Outdoor Unit Data

  • Model: YN048GMFI18RUE
  • Breaker Needed: 40A (double-pole)
  • Sound Level: 65.0 dB(A)
  • Net Dimensions (WDH): 37.5 x 16.4 x 52.5 Inches
  • Carton Dimensions (WDH): 43.2 x 19.8 x 58.5 Inches
  • Net / Gross Weight: 219.1 / 249.1 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Series User Manual
  • Series Installation Manual
  • Series Service Manual
  • UYB048GMFILCBD Submittal Sheet
  • AHRI Certificate
  • Energy Guide
