Pioneer® EStar™ 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Product image 1
1 / 7
+2

Pioneer® EStar™ 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

  • Ultra-High Efficiency Inverter++ ductless mini split heat pump system
  • Cooling capacity: 12,000 BTU/H with 23.1 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 12,000 BTU/H with 9.3 HSPF2 / 3.5 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $72.00
    • Heating: $235.00

[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,536~12,931 BTU/h
  • Cooling SEER2: 23.1 BTU/w
  • Cooling EER2: 12.5 BTU/w
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 3,747~12,550 BTU/h
  • Heating HSPF2 (Region IV/V): 9.3 / 7.1 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.50 / 2.24 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 200~450 Sq.F

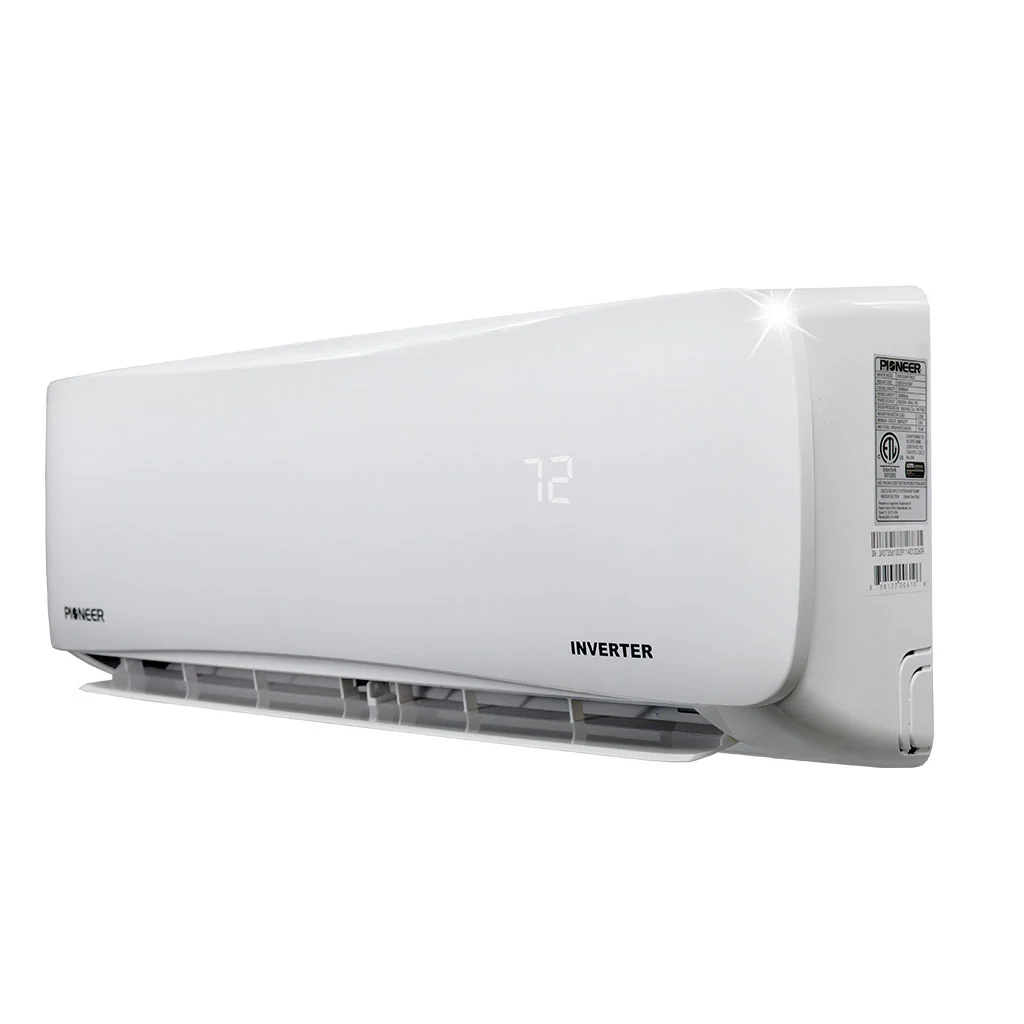

Indoor Unit Data

  • Part Number: WS012GMFI22HLE
  • Air Flow (Turbo/Hi/Med/Lo): 323 / 306 / 212 / 147 CFM
  • Sound Level (Hi/Med/Lo): 37.5 / 30.0 / 21.5 dB(A)
  • Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8
  • Carton Dimensions (WDH): 34"1/2 x 11"-1/4 x 15"
  • Net / Gross Weight: 19 / 24 Lbs

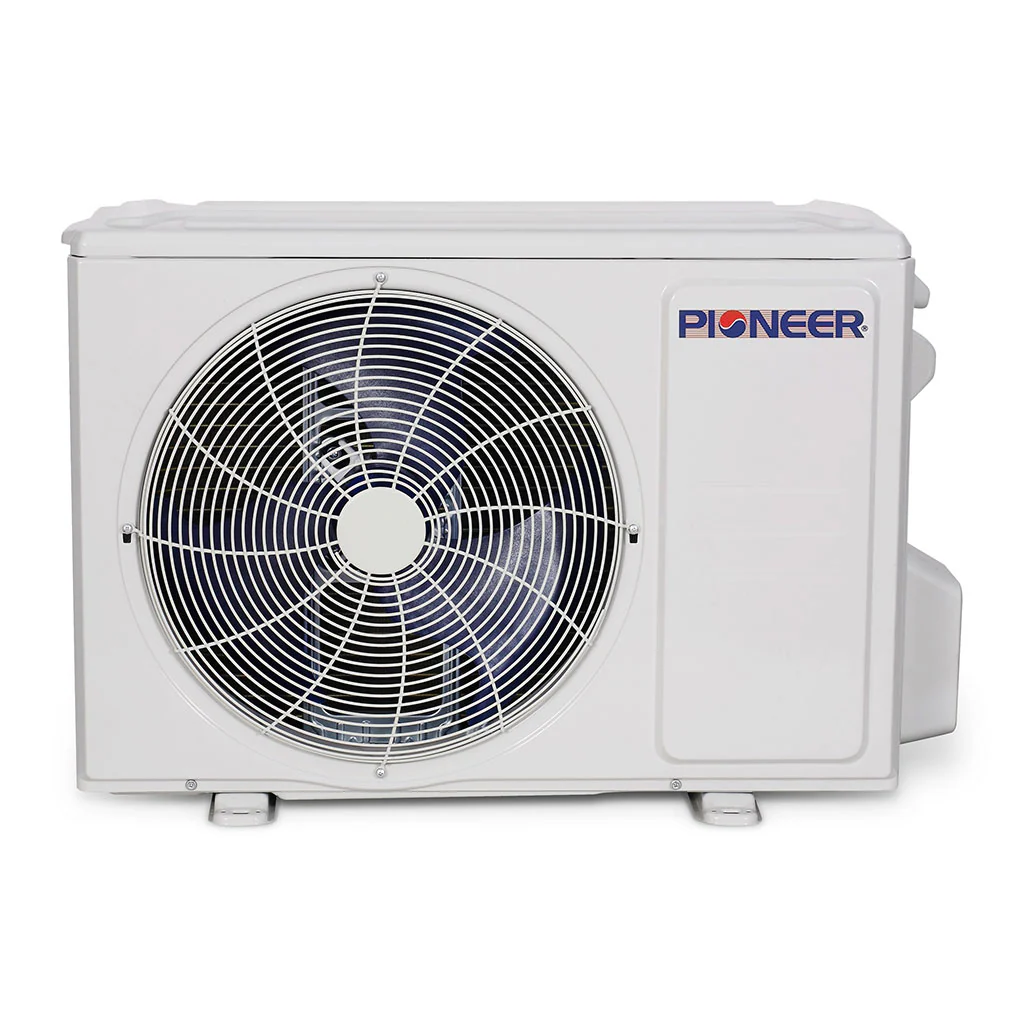

Outdoor Unit Data

  • Part Number: YN012GMFI22RPE
  • Sound Level: 53.5 dB(A)
  • Breaker Needed: 15A (double-pole)
  • Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
  • Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
  • Net / Gross Weight: 63.7 / 69 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Series User Manual
  • Series Installation Manual
  • Series Service Manual
  • Disassembly Guide
  • AHRI Certificate
  • Energy Guide

Overview

Summary

  • Ultra-High Efficiency Inverter++ ductless mini split heat pump system
  • Cooling capacity: 12,000 BTU/H with 23.1 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 12,000 BTU/H with 9.3 HSPF2 / 3.5 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $72.00
    • Heating: $235.00

[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,536~12,931 BTU/h
  • Cooling SEER2: 23.1 BTU/w
  • Cooling EER2: 12.5 BTU/w
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 3,747~12,550 BTU/h
  • Heating HSPF2 (Region IV/V): 9.3 / 7.1 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.50 / 2.24 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 200~450 Sq.F

Indoor Unit Data

  • Part Number: WS012GMFI22HLE
  • Air Flow (Turbo/Hi/Med/Lo): 323 / 306 / 212 / 147 CFM
  • Sound Level (Hi/Med/Lo): 37.5 / 30.0 / 21.5 dB(A)
  • Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8
  • Carton Dimensions (WDH): 34"1/2 x 11"-1/4 x 15"
  • Net / Gross Weight: 19 / 24 Lbs

Outdoor Unit Data

  • Part Number: YN012GMFI22RPE
  • Sound Level: 53.5 dB(A)
  • Breaker Needed: 15A (double-pole)
  • Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
  • Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
  • Net / Gross Weight: 63.7 / 69 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Series User Manual
  • Series Installation Manual
  • Series Service Manual
  • Disassembly Guide
  • AHRI Certificate
  • Energy Guide
Select Installation Kit Options
From $352.80

Original: $1,008.00

-65%
Pioneer® EStar™ 12,000 BTU 23.1 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V—

$1,008.00

$352.80

Description

Overview

Summary

  • Ultra-High Efficiency Inverter++ ductless mini split heat pump system
  • Cooling capacity: 12,000 BTU/H with 23.1 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 12,000 BTU/H with 9.3 HSPF2 / 3.5 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $72.00
    • Heating: $235.00

[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,536~12,931 BTU/h
  • Cooling SEER2: 23.1 BTU/w
  • Cooling EER2: 12.5 BTU/w
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 3,747~12,550 BTU/h
  • Heating HSPF2 (Region IV/V): 9.3 / 7.1 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.50 / 2.24 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 200~450 Sq.F

Indoor Unit Data

  • Part Number: WS012GMFI22HLE
  • Air Flow (Turbo/Hi/Med/Lo): 323 / 306 / 212 / 147 CFM
  • Sound Level (Hi/Med/Lo): 37.5 / 30.0 / 21.5 dB(A)
  • Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8
  • Carton Dimensions (WDH): 34"1/2 x 11"-1/4 x 15"
  • Net / Gross Weight: 19 / 24 Lbs

Outdoor Unit Data

  • Part Number: YN012GMFI22RPE
  • Sound Level: 53.5 dB(A)
  • Breaker Needed: 15A (double-pole)
  • Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
  • Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
  • Net / Gross Weight: 63.7 / 69 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Series User Manual
  • Series Installation Manual
  • Series Service Manual
  • Disassembly Guide
  • AHRI Certificate
  • Energy Guide
