Pioneer® 24,000 BTU 21.2 SEER2 Floor/Ceiling Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Product image 1
1 / 5

Pioneer® 24,000 BTU 21.2 SEER2 Floor/Ceiling Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

  • Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
  • Cooling capacity: 24,000 BTU/H with 21.2 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 24,000 BTU/H with 10.3 HSPF2 / 3.66 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Floor/Ceiling Flex Mount Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $158.00
    • Heating: $453.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit

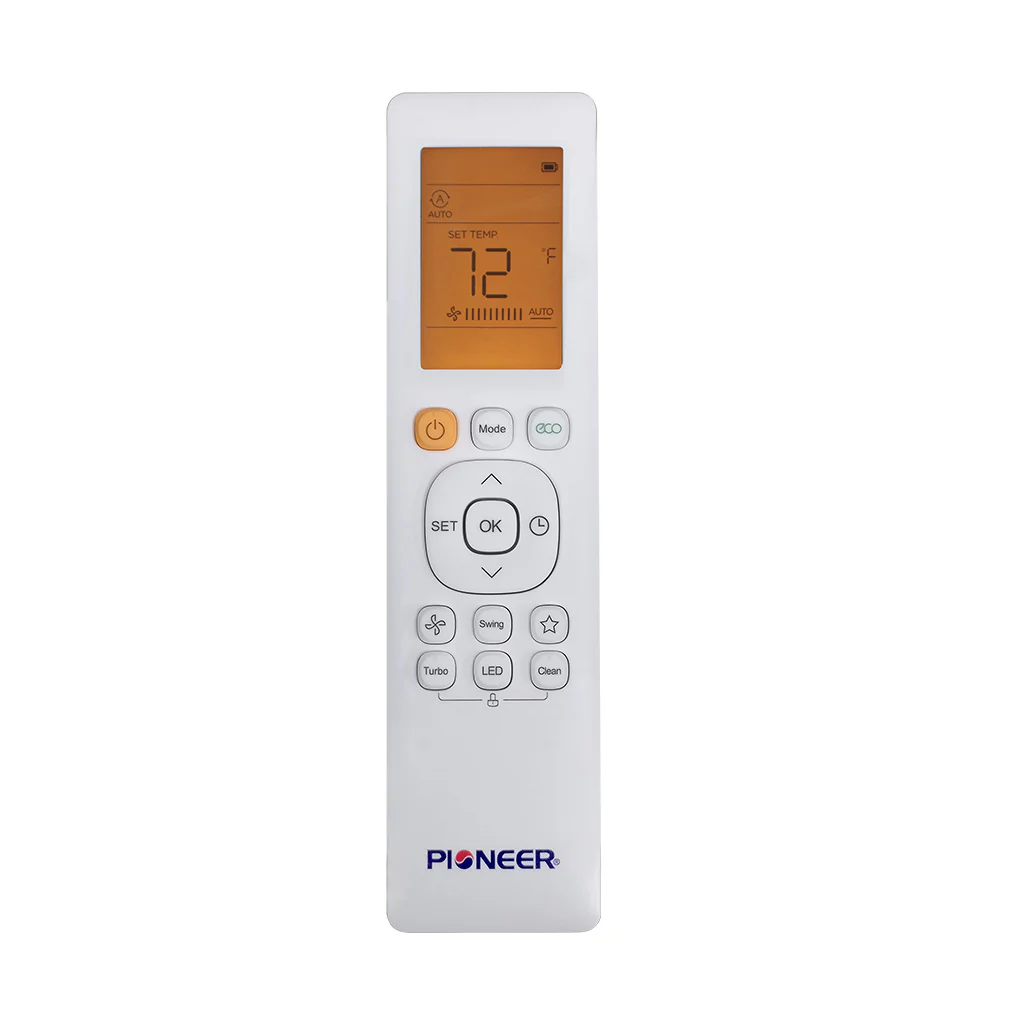

  • Wireless Remote Control

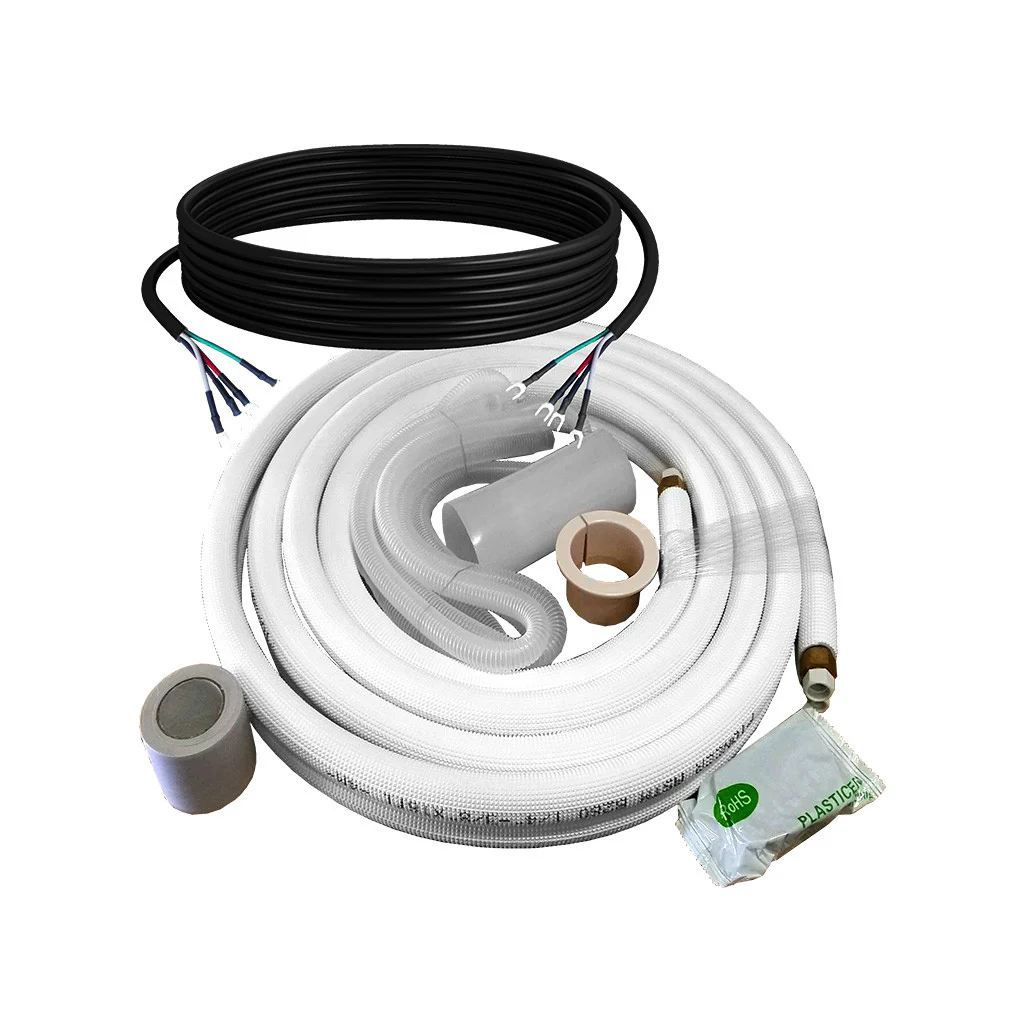

  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 7,700~25,500 BTU/h
  • Cooling SEER2: 21.2 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 24,000 BTU/h
  • Heating Capacity Range: 7,800~31,240 BTU/h
  • Heating HSPF2 (Region IV/V): 10.3 / 7.8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.66 / 2.2 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 650~900 Sq.F

Indoor Unit Data

  • Part Number: UB024GMFILCFHD
  • Air Flow (Hi/Med/Lo): 759 / 708 / 598 CFM
  • Sound Level (Hi/Med/Lo): 51.0 / 47.0 / 42.0 dB(A)
  • Net Dimensions (WDH): 42.0 x 26.5 x 9.3 Inches
  • Carton Dimensions (WDH): 45.0 x 29.8 x 12.4 Inches
  • Net / Gross Weight: 60.6 / 72.0 Lbs

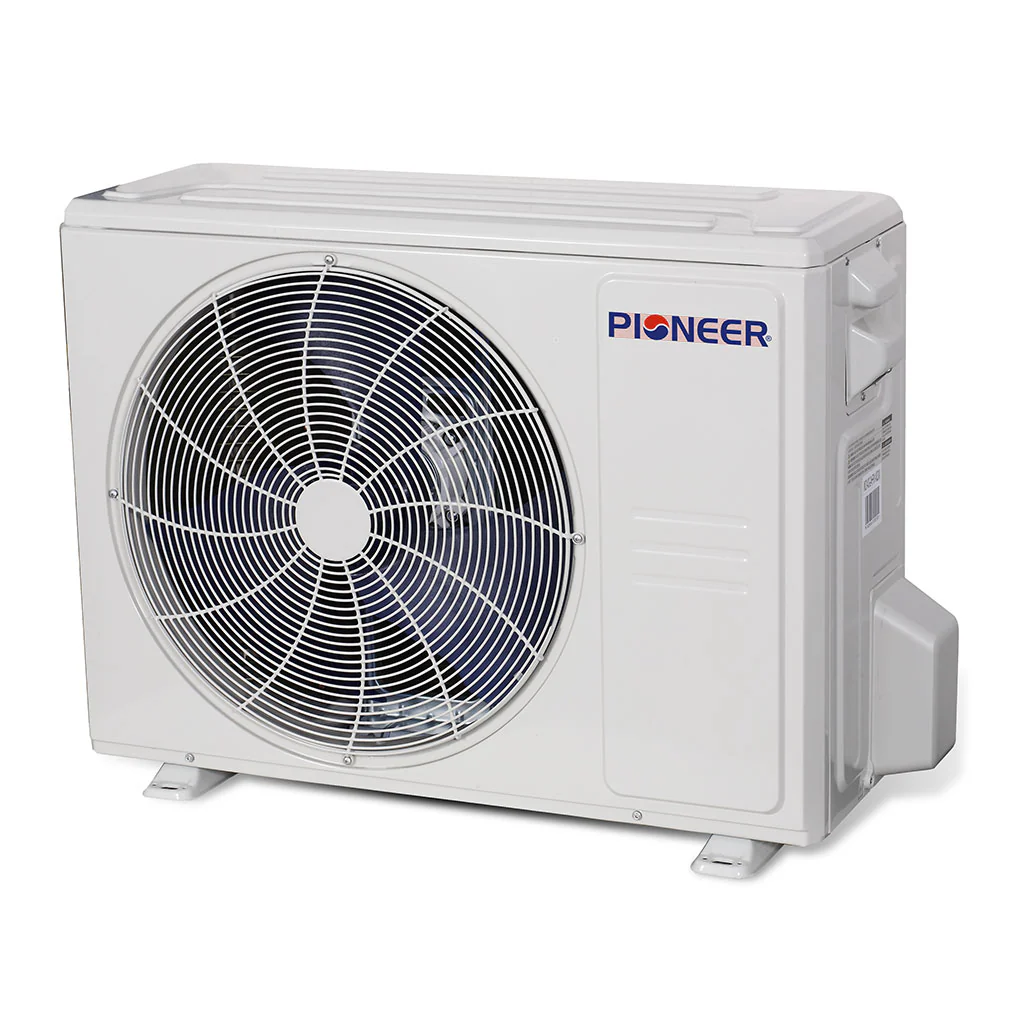

Outdoor Unit Data

  • Part Number: YN024GMFI22RPE
  • Breaker Needed: 25A (double-pole)
  • Sound Level: 61.0 dB(A)
  • Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
  • Carton Dimensions (WDH): 42.8 x 19.6 x 34.8 Inches
  • Net / Gross Weight: 124.8 / 134.9 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Series User Manual
  • Series Installation Manual
  • Series Service Manual
  • UYB024GMFILCAD Submittal Sheet
  • AHRI Certificate
  • Energy Guide
