Pioneer® EStar™ 18,000 BTU 23.7 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Product image 1
1 / 7
+2

Pioneer® EStar™ 18,000 BTU 23.7 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

  • Ultra High Efficiency Inverter++ ductless mini split heat pump system
  • Cooling capacity: 18,000 BTU/H with 23.7 SEER2 / 13.5 EER2 efficiency
  • Heating capacity: 18,000 BTU/H with 10.3 HSPF2 / 3.74 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $110.00
    • Heating: $366.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 18,000 BTU/h
  • Cooling Capacity Range: 9,935~20,000 BTU/h
  • Cooling SEER2: 23.7 BTU/W.h
  • Cooling EER2: 13.5 BTU/W.h
  • Heating Rated Capacity: 18,000 BTU/h
  • Heating Capacity Range: 6,615~21,000 BTU/h
  • Heating HSPF2 (Region IV/V): 10.3 / 7.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.74 / 2.39 W/W
  • Refrigerant Type: R410a/56.4 oz.
  • Suitable Area: 400~650 Sq.F

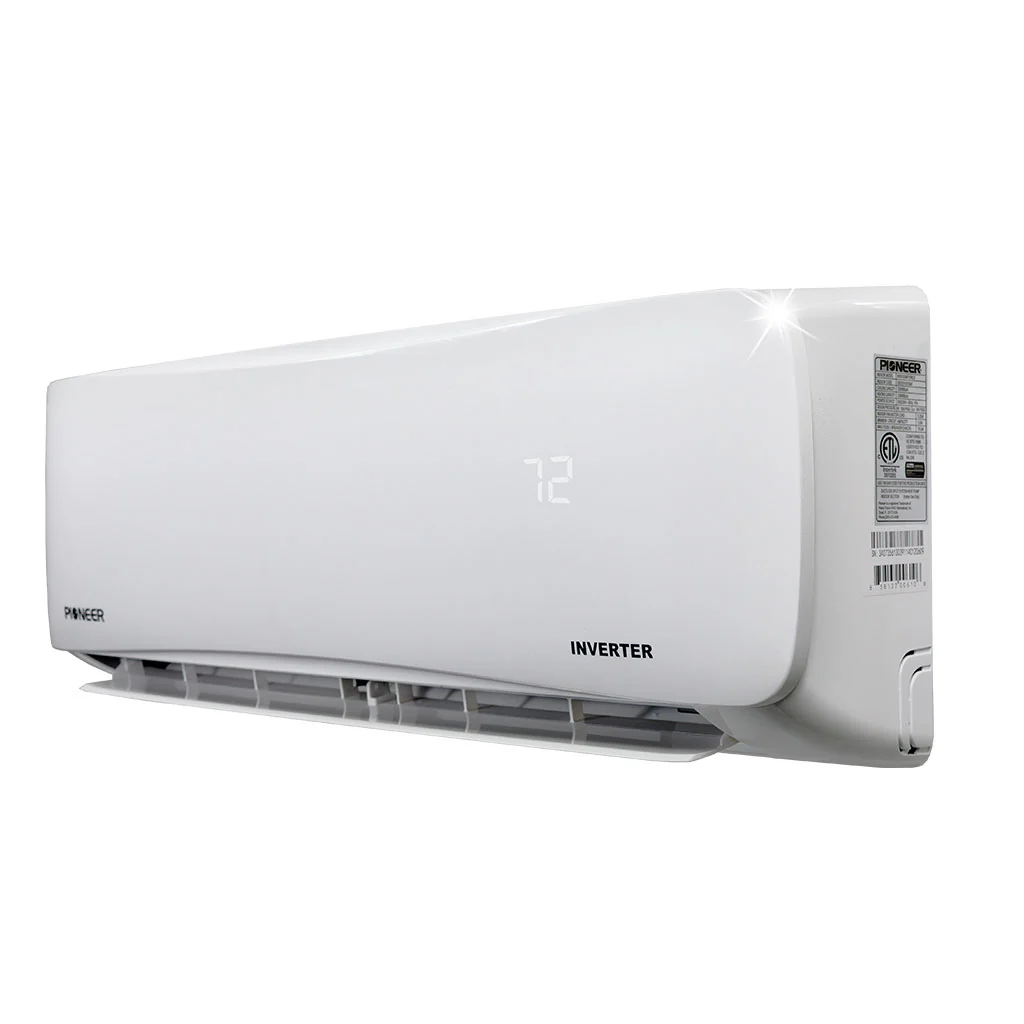

Indoor Unit Data

  • Model Number: WS018GMFI22HLE
  • Air Flow (Turbo/Hi/Med/Lo): 706 / 470 / 353 / 294 CFM
  • Sound Level (Hi/Med/Lo): 43 / 35 / 30 dB(A)
  • Net Dimensions (WDH): 42.5 x 8.9 x 13.2 Inches
  • Carton Dimensions (WDH): 45.5 x 12.6 x 16.3 Inches
  • Net / Gross Weight: 29.5 / 37.5 Lbs

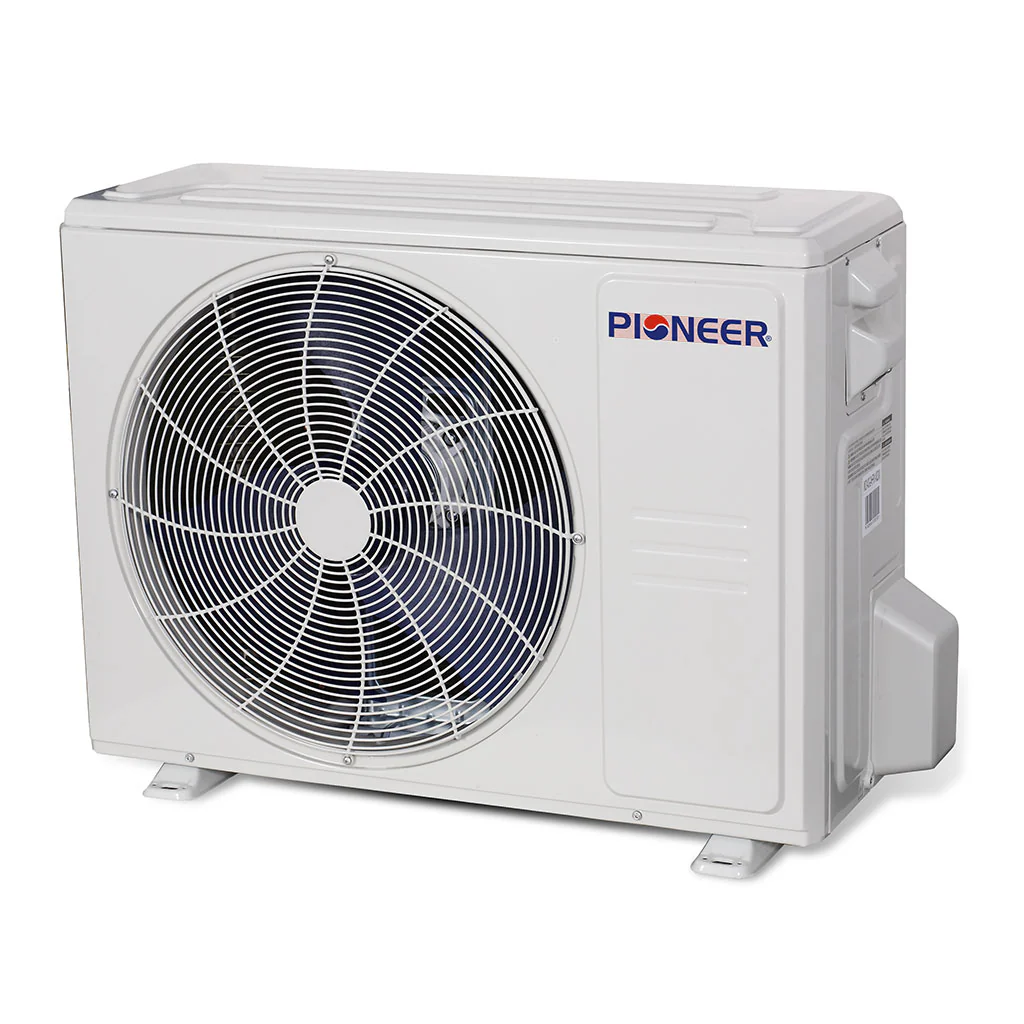

Outdoor Unit Data

  • Model Number: YN018GMFI22RPE
  • Sound Level: 59.0 dB(A)
  • Electrical Circuit Size: 20A (double-pole)
  • Net Dimensions (WDH): 35 x 13.5 x 26.5 Inches
  • Carton Dimensions (WDH): 39.2 x 15.7 x 29.1 Inches
  • Net / Gross Weight: 94.5 / 101 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Series User Manual
  • Series Installation Manual
  • Series Service Manual
  • Disassembly Guide
  • AHRI Certificate
  • Energy Guide
