Overview

Summary

• Ultra High Efficiency Inverter++ floor console split heat pump system
• Cooling capacity: 12,000 BTU/H with 22.7 SEER2 / 13.0 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 10.2 HSPF2 / 3.52 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor Console Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $74.00
• Heating: $254.00

[[SERIES]]

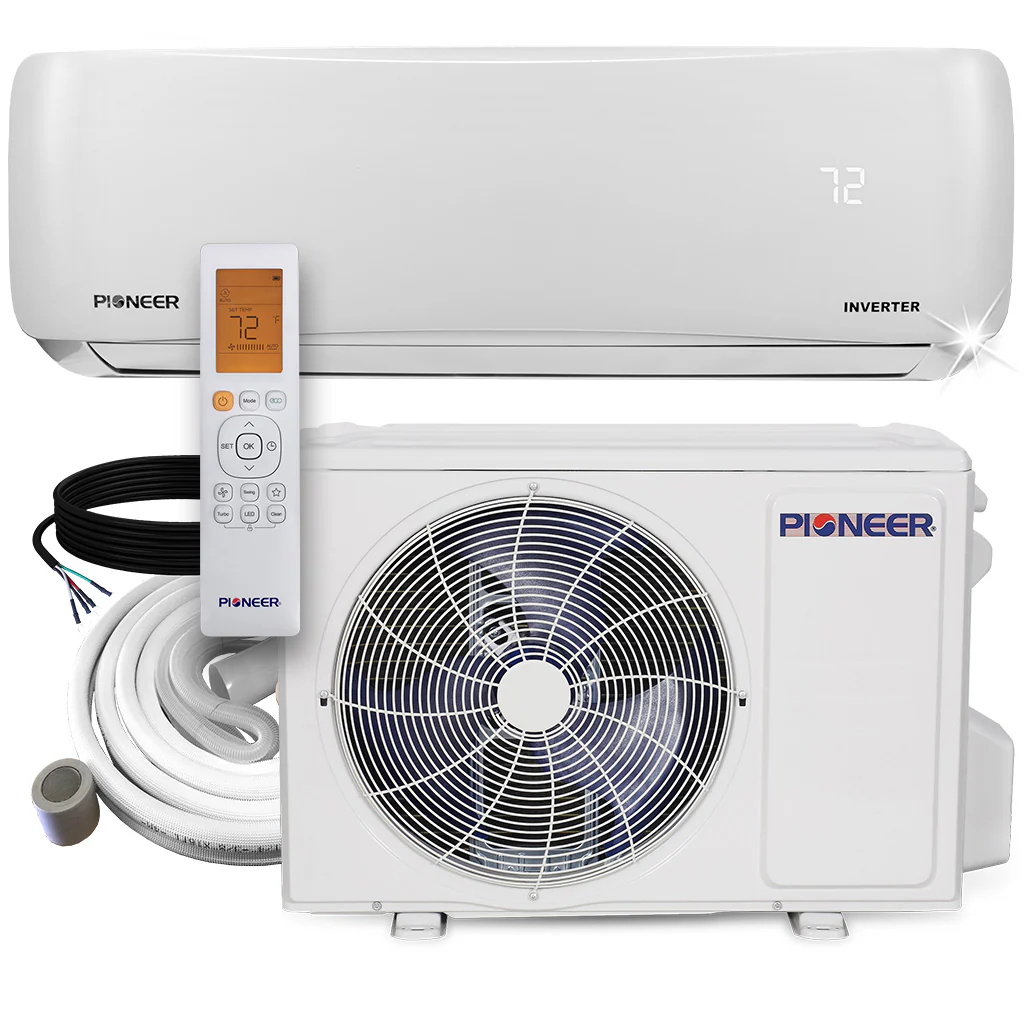

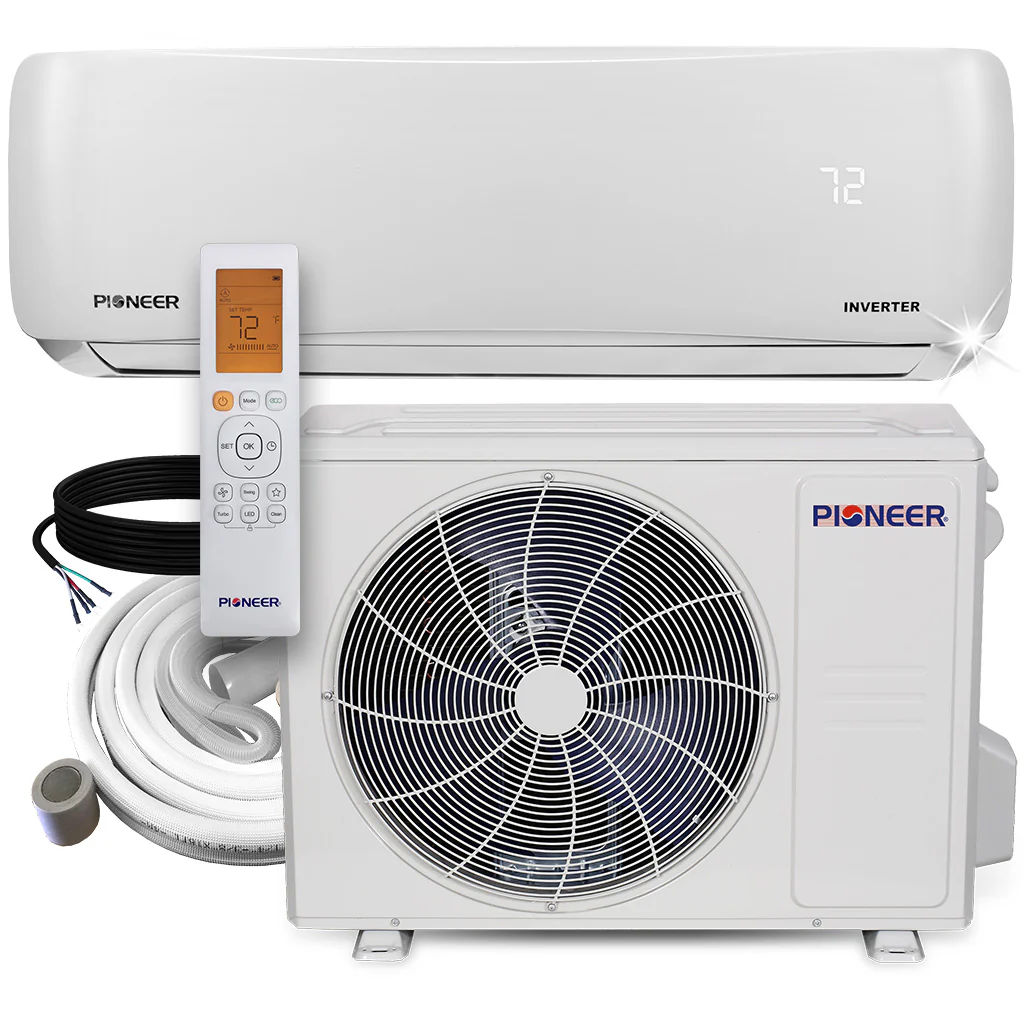

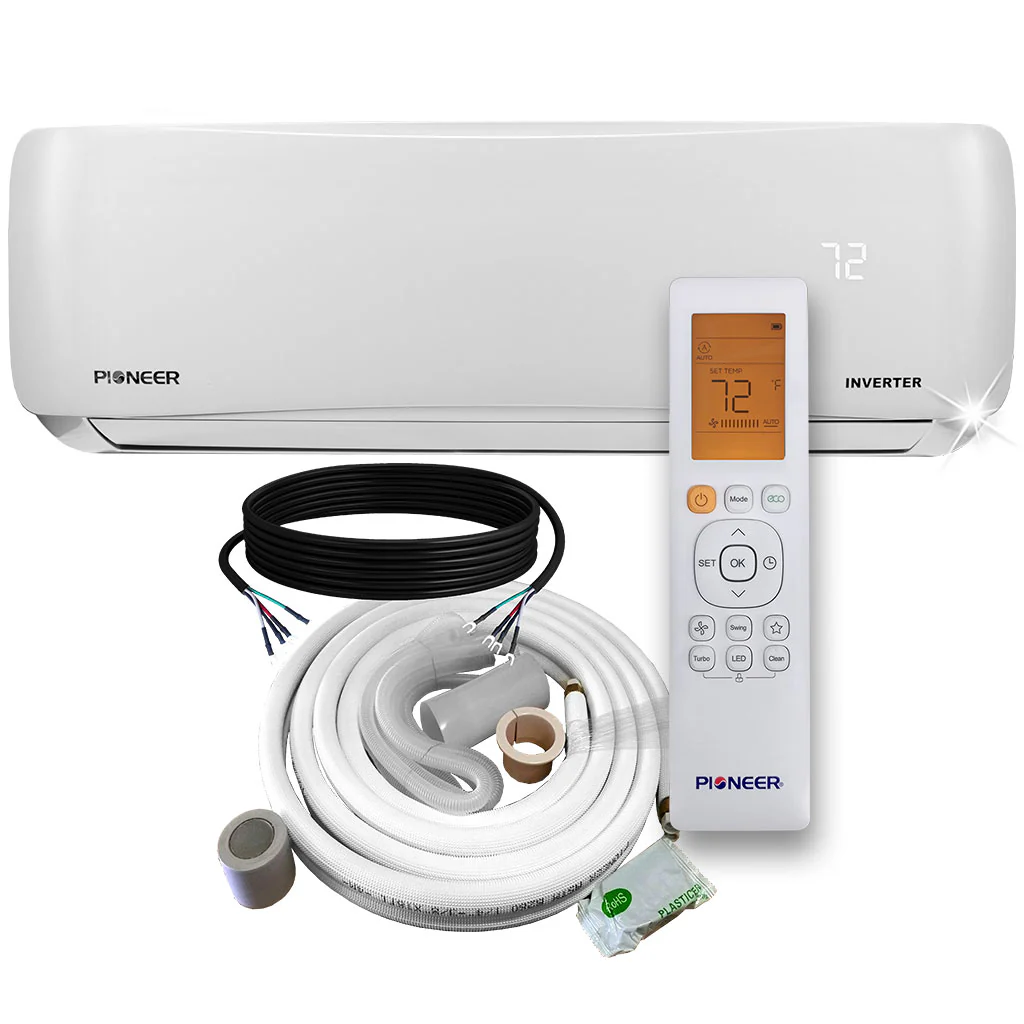

What's Included

• Indoor Unit
• Outdoor Unit

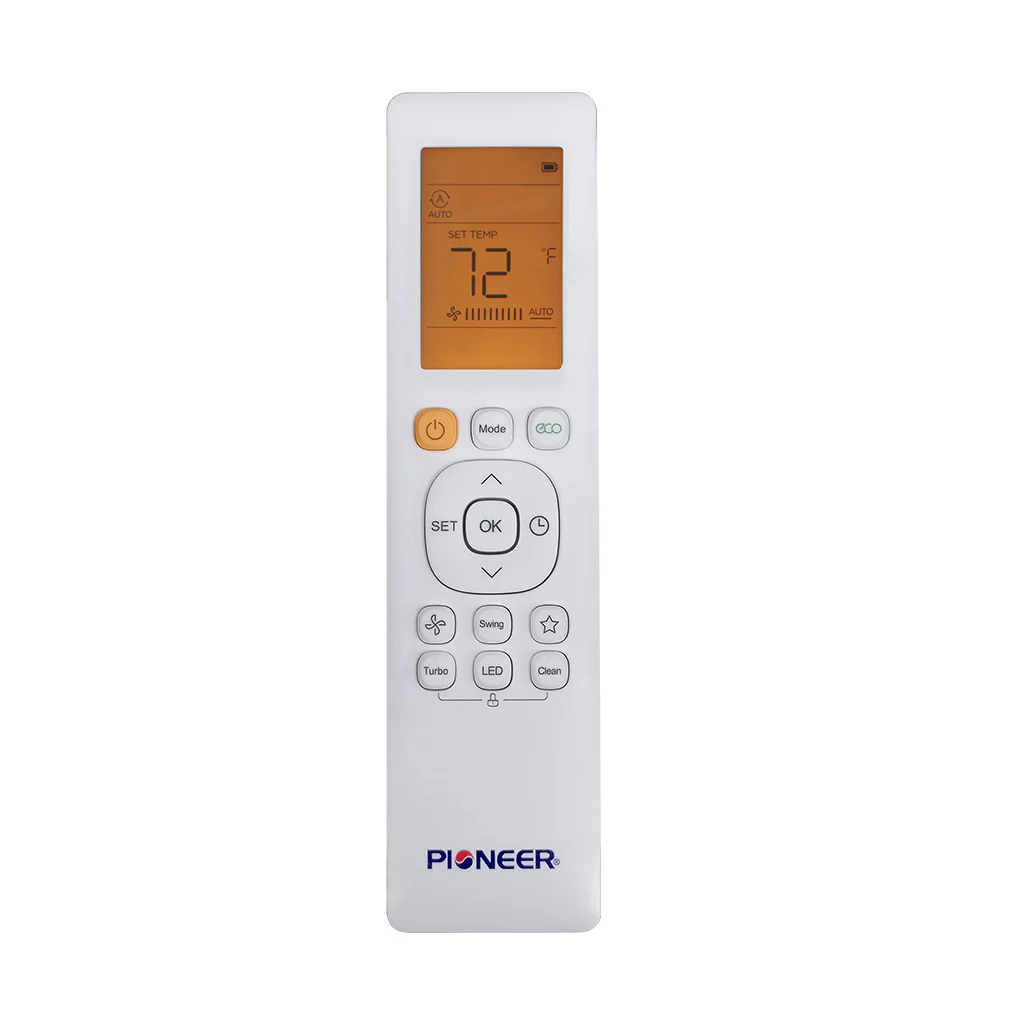

• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 12,000 BTU/h
• Cooling Capacity Range: 2,850~13,000 BTU/h
• Cooling SEER2: 22.7 BTU/W.hr
• Cooling EER2: 13.0 BTU/W.hr
• Heating Rated Capacity: 12,000 BTU/h
• Heating Capacity Range: 2,250~14,800 BTU/h
• Heating HSPF: 10.0 BTU/w
• Refrigerant Type: R410a
• Suitable Area: 200~450 Sq.F

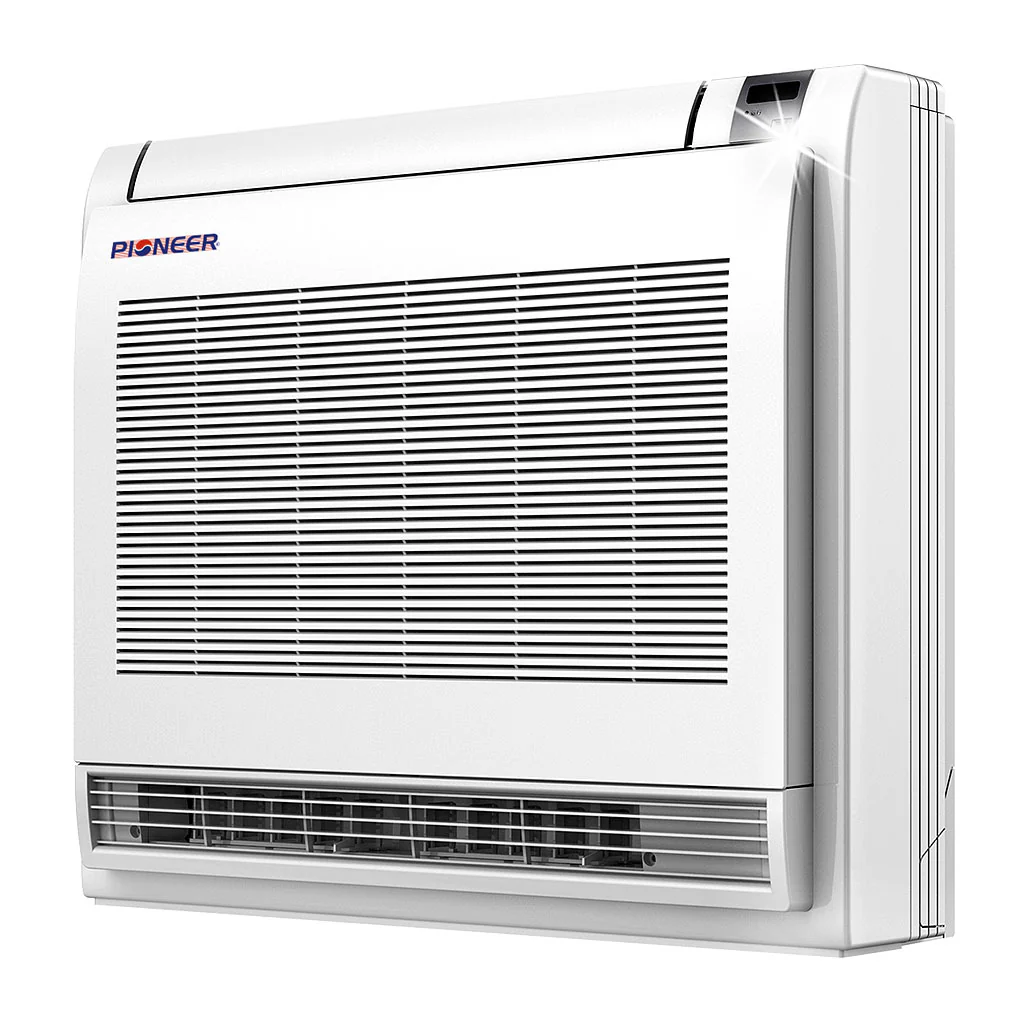

Indoor Unit Data

• Model Number: FB012GMFILDFHE
• Air Flow (Hi/Med/Lo): 365 / 318 / 248 CFM
• Sound Level (Hi/Med/Lo): 43.0 / 39.0 / 33.0 dB(A)
• Net Dimensions (WDH): 31-1/4 x 7-7/8 x 24-1/2 Inches
• Carton Dimensions (WDH): 34 x 11 x 28-1/4 Inches
• Net / Gross Weight: 32.8 / 41.5 Lbs

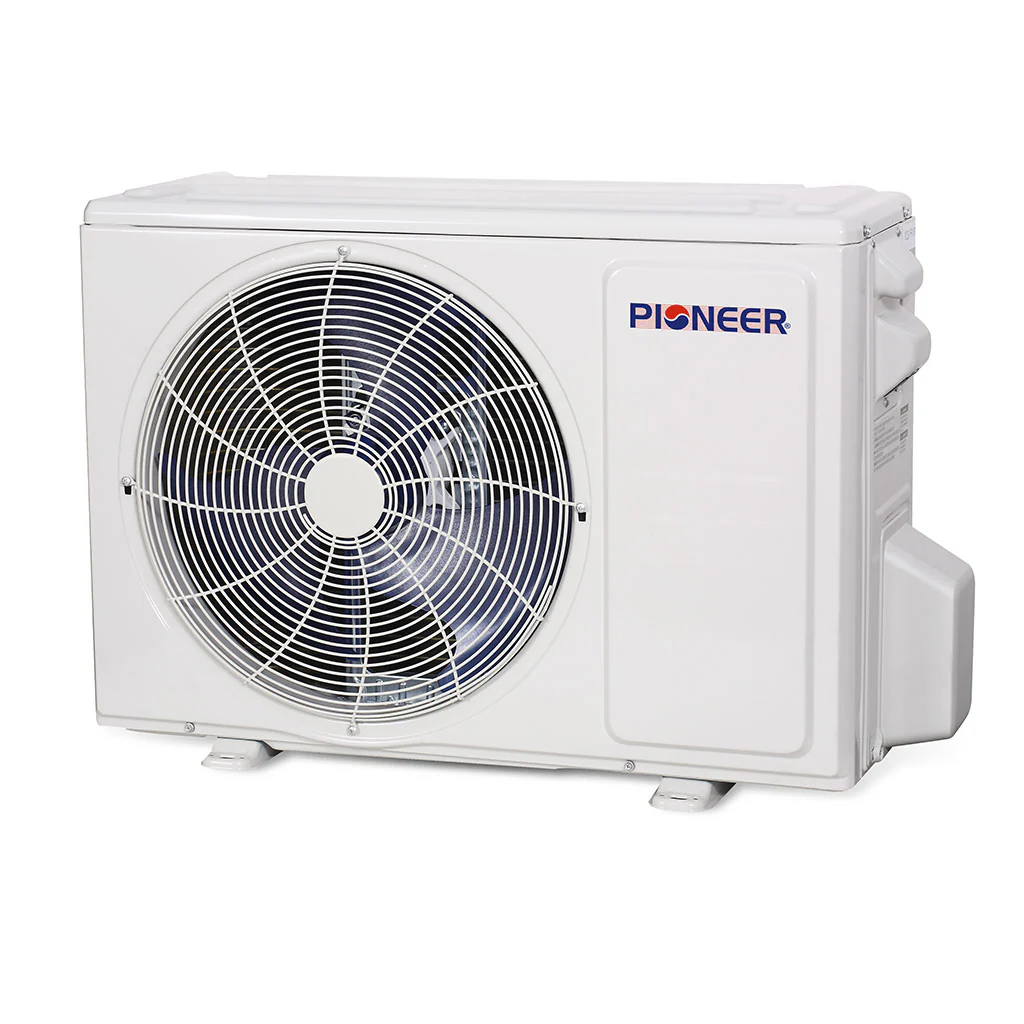

Outdoor Unit Data

• Model Number: YN012GMFI22RPE
• Sound Level: 53.5 dB(A)
• Breaker Needed: 15A (double-pole)
• Expansion Device Type: EXV
• Net Dimensions (WDH): 30-1/8 x 11-7/8 x 21-7/8 Inches
• Carton Dimensions (WDH): 34-7/8 x 13-1/4 x 24 Inches
• Net / Gross Weight: 63.7 / 69 Lbs

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• AHRI Certificate
• Energy Guide
