Summary

• High Efficiency Quantum Ultra Single-Way Ceiling Recessed Cassette Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 22.1 SEER2 / 12.3 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 10.0 HSPF2 / 3.4 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Single-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

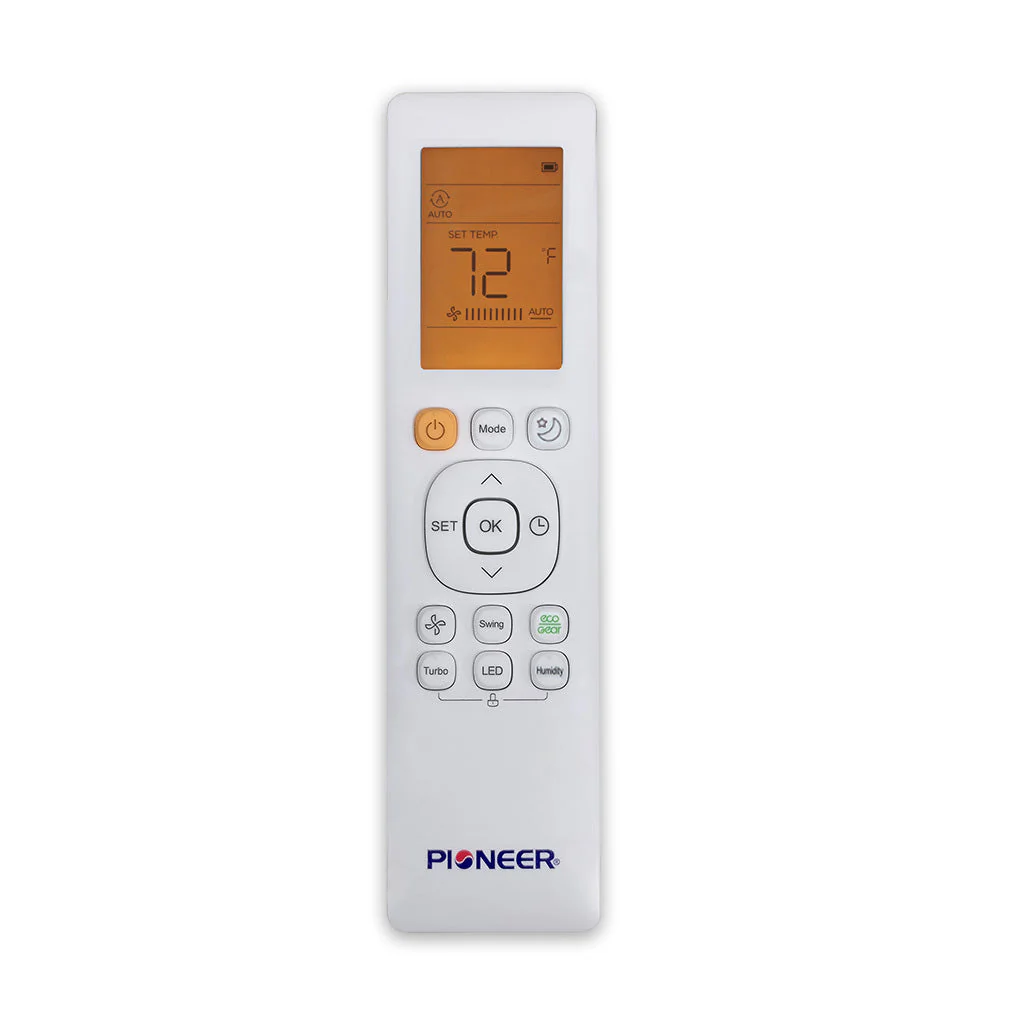

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,900~13,800 BTU/h
  • Cooling SEER2: 22.1 BTU/W.h
  • Cooling EER2: 12.3 BTU/W.h
  • Heating Rated Capacity: 12,000 BTU/h
  • Heating Capacity Range: 4,700~15,300 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 7.8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.4 / 2.48 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 350~500 sq ft
  • Minimum Room Size: 37 sq ft
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 218010987

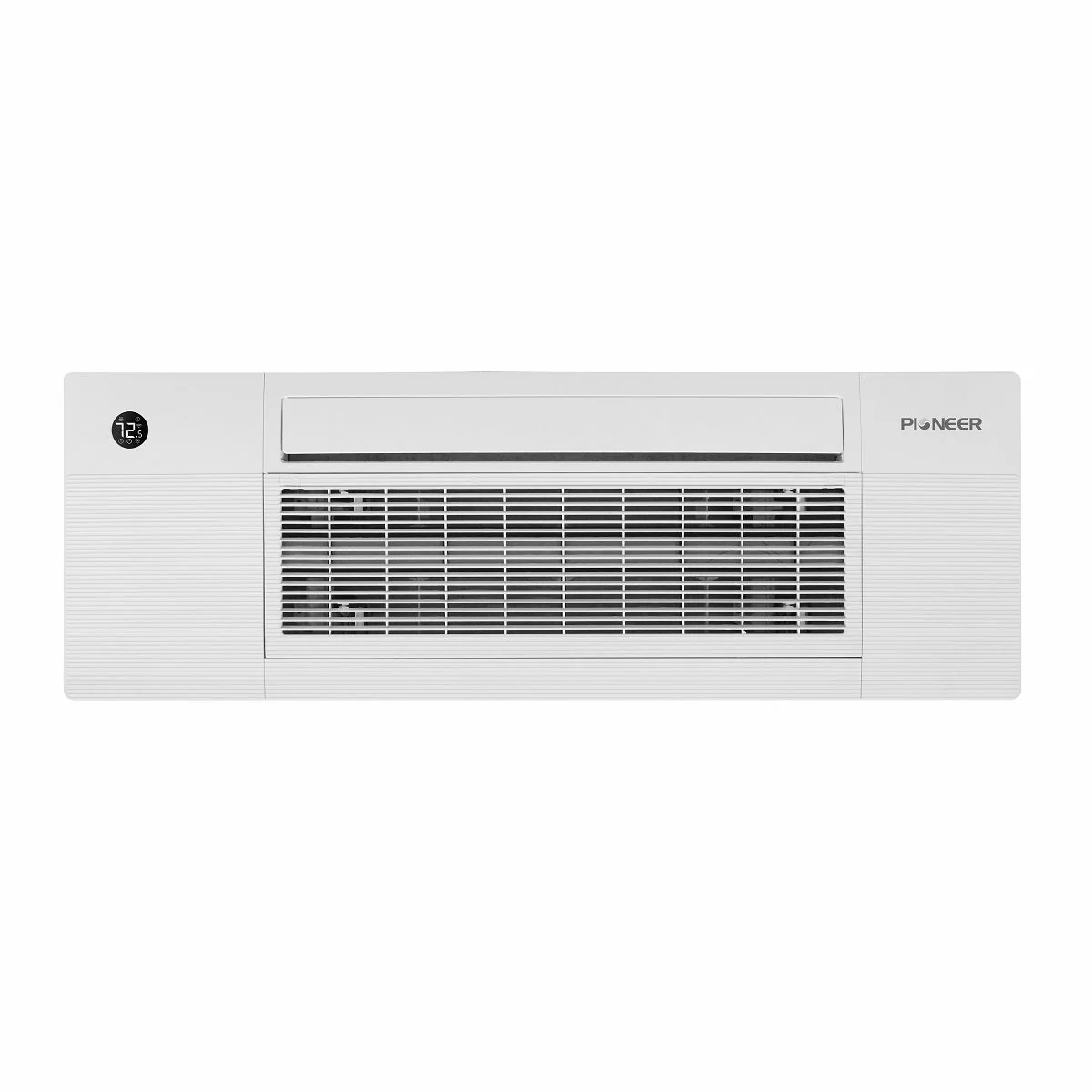

• Indoor Unit
  • Part Number: CK012GMSILDFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 353 / 312 / 282 / 247 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 47 / 43 / 38 / 26 / 22 dB(A)
  • Product Dimensions (WDH): 50"-3/8 x 13"-1/4 x 10" Inches
  • Carton Dimensions (WDH): 57"-5/8 x 22"-1/2 x 22"-5/8 Inches
  • Net / Gross Weight: 45.0 / 82.0 lbs
• Decorative Panel
  • Part Number: ---
  • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8 Inches
  • Carton Dimensions (WDH): Packed with the indoor unit inside same carton
  • Net / Gross Weight: 15.0 / N/A lbs

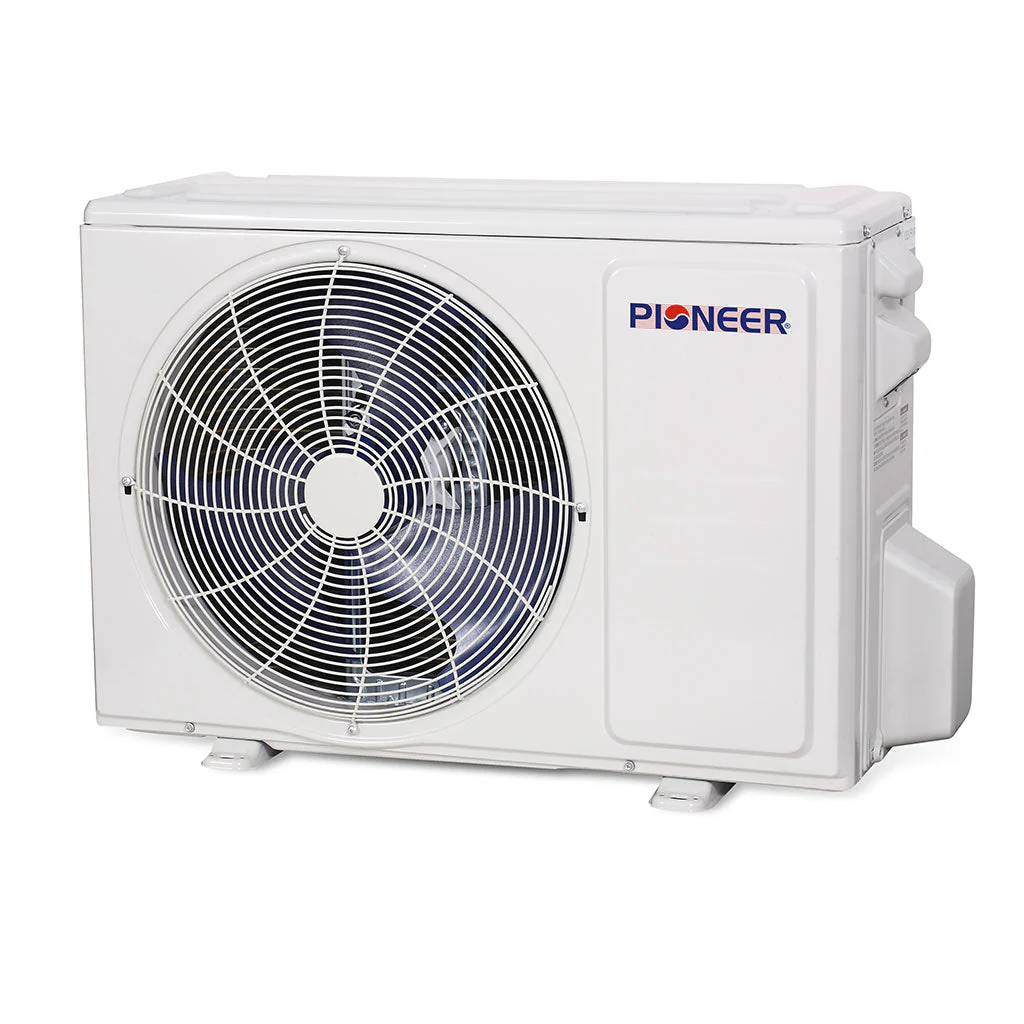

• Outdoor Unit
  • Part Number: YN012GMSI24RPG
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 54 dB(A)
  • Net Dimensions (WDH): 30"-1/8 x 12" x 21"-7/8 Inches
  • Carton Dimensions (WDH): 35" x 13"-1/4 x 24" Inches
  • Net / Gross Weight: 62.1 / 67.7 lbs
