Summary

• High Efficiency Quantum Ultra Four-Way Ceiling Recessed Cassette Split Heat Pump System
• Cooling capacity: 36,000 BTU/H with 20.0 SEER2 / 9.6 EER2 efficiency
• Heating capacity: 38,000 BTU/H with 10.3 HSPF2 / 3.31 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Four-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

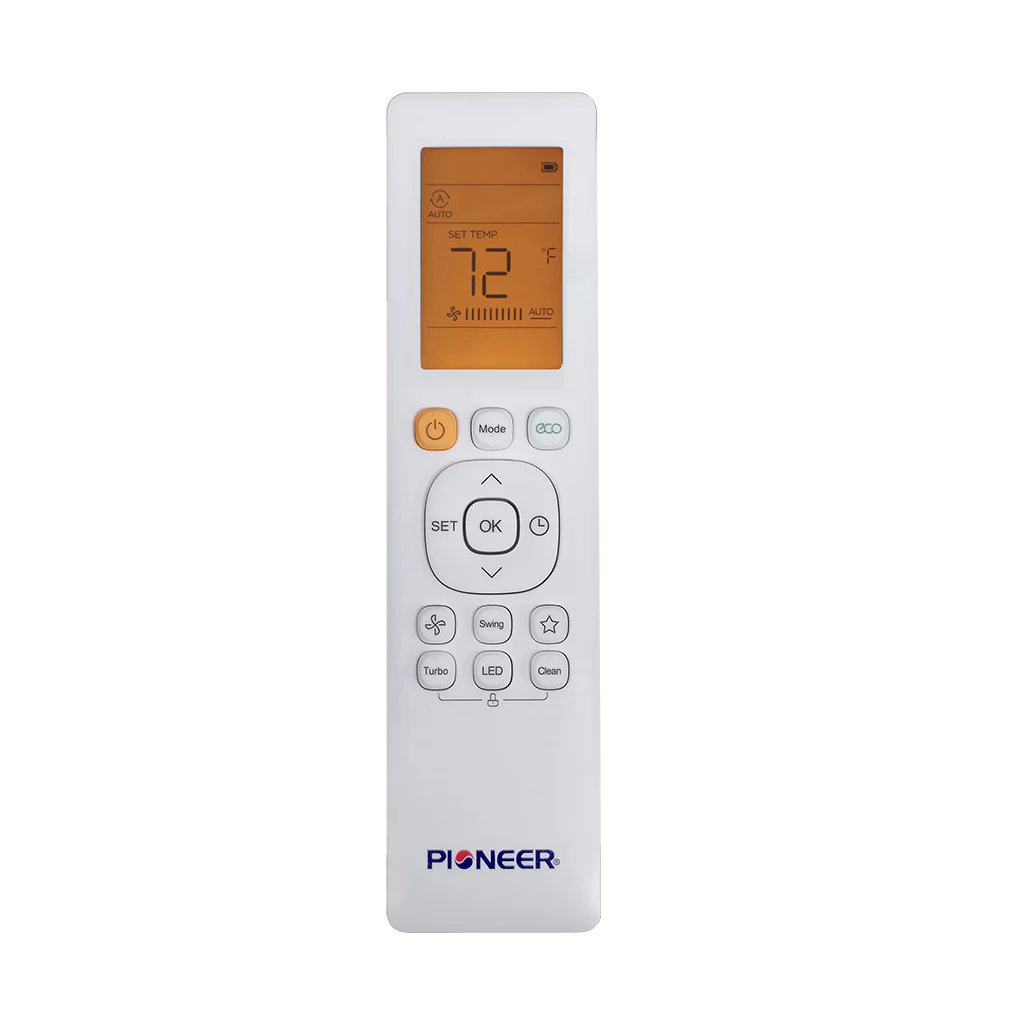

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • FOLLOW ME, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

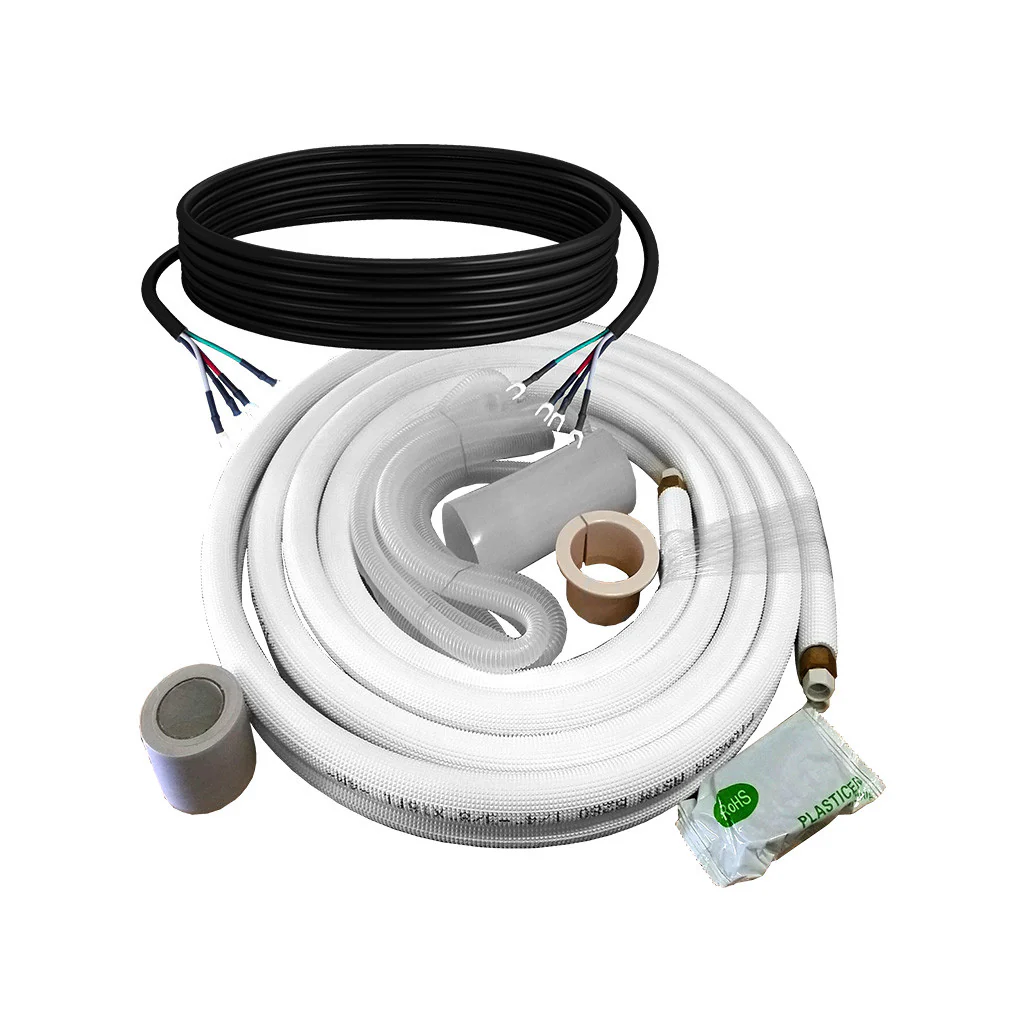

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 36,000 BTU/h
  • Cooling Capacity Range: 6,400~39,800 BTU/h
  • Cooling SEER2: 20.0 BTU/W.h
  • Cooling EER2: 9.6 BTU/W.h
  • Heating Rated Capacity: 38,000 BTU/h
  • Heating Capacity Range: 14,400~42,200 BTU/h
  • Heating HSPF2 (Region IV/V): 10.3 / 7.9 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.31 / 2.2 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 1,000~1,400 sq ft
  • Minimum Room Size: 103 sq ft
  • Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
  • AHRI Reference: 218010991
• Indoor Unit
  • Part Number: CB036GMSILDFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 1,042 / 948 / 853 / 753 / 659 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 54 / 52 / 47 / 40 / 36 dB(A)
  • Product Dimensions (WDH): 32"-5/8 x 32"-5/8 x 9"-5/8 Inches
  • Carton Dimensions (WDH): 35"-7/8 x 35"-7/8 x 11"-3/8 Inches
  • Net / Gross Weight: 59.3 / 71.5 lbs
• Decorative Panel
  • Product Dimensions (WDH): 37"-3/8 x 37"-3/8 x 2"-1/8 Inches
  • Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2 Inches
  • Net / Gross Weight: 13.2 / 19.8 lbs

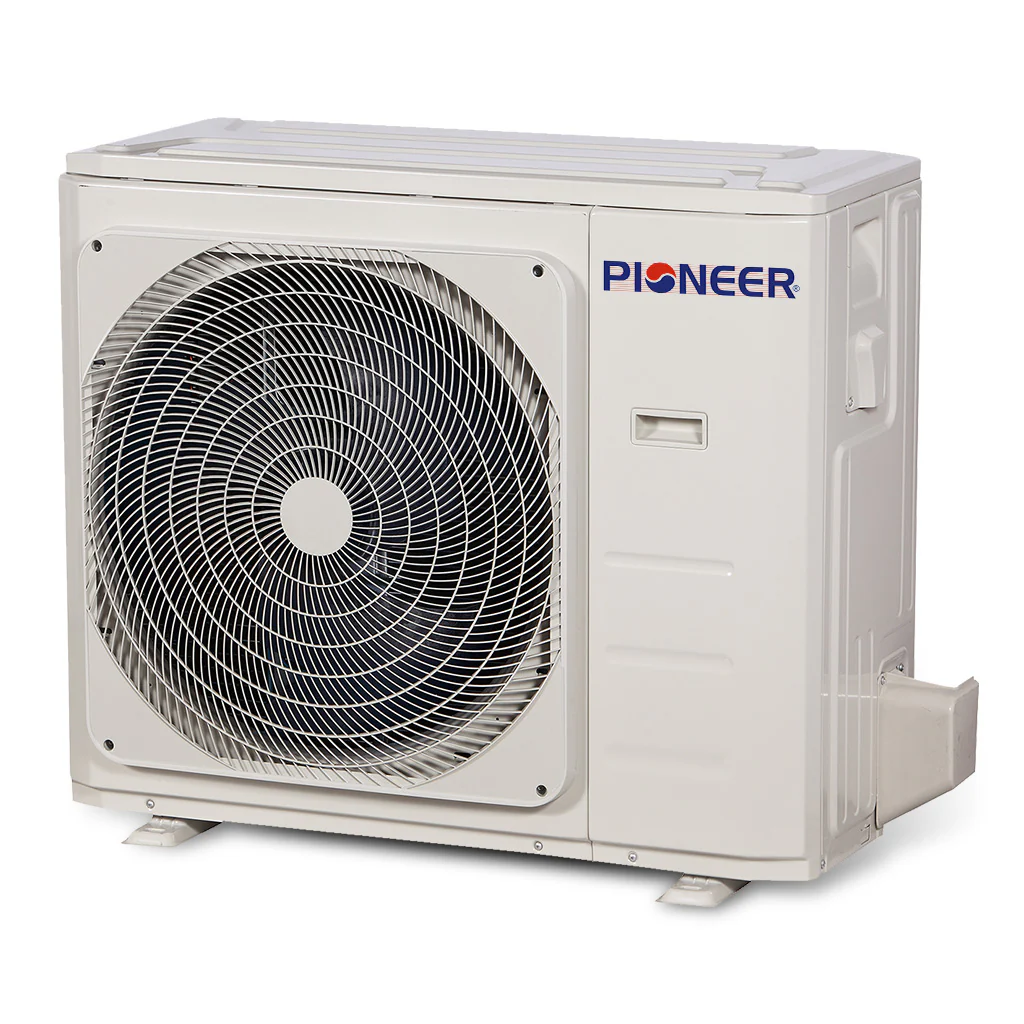

• Outdoor Unit
  • Part Number: YN036GMSI20RUG
  • Breaker Needed: 35A (double-pole)
  • Sound Level: 63 dB(A)
  • Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
  • Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34"-7/8 Inches
  • Net / Gross Weight: 152.4 / 162.5 lbs

Dimension Chart
