Pioneer® Quantum Ultra™ 36,000 BTU 18.7 SEER2 230V Slim-Duct Ceiling Concealed Mini-Split Air Conditioner Inverter Heat Pump Full Set

Product image 1
1 / 6
+1

Pioneer® Quantum Ultra™ 36,000 BTU 18.7 SEER2 230V Slim-Duct Ceiling Concealed Mini-Split Air Conditioner Inverter Heat Pump Full Set

Summary

  • High Efficiency Quantum Ultra Slim-Duct Ceiling Concealed Split Heat Pump System
  • Cooling capacity: 36,000 BTU/H with 18.7 SEER2 / 10.1 EER2 efficiency
  • Heating capacity: 40,000 BTU/H with 10.2 HSPF2 / 3.7 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Slim-Duct Ceiling Concealed Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • FOLLOW ME, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • AHRI Certificate
  • Energy Guide
  • Submittal Sheet
  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 36,000 BTU/h
    • Cooling Capacity Range: 7,900~42,500 BTU/h
    • Cooling SEER2: 18.7 BTU/W.h
    • Cooling EER2: 10.1 BTU/W.h
    • Heating Rated Capacity: 40,000 BTU/h
    • Heating Capacity Range: 8,100~43,500 BTU/h
    • Heating HSPF2 (Region IV/V): 10.2 / 7.8 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.7 / 2.1 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 1,000~1,400 sq ft
    • Minimum Room Size: 104 sq ft
    • Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
    • AHRI Reference: 218010993
  • Indoor Unit
    • Part Number: RB036GMSILDFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 1,235 / 1,059 / 941 / 765 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 45 / 39.5 / 33 / 30 dB(A)
    • Product Dimensions (WDH): 47"-1/4 x 29"-1/2 x 11"-7/8 Inches
    • Carton Dimensions (WDH): 56"-1/8 x 33"-7/8 x 14"-1/8 Inches
    • Net / Gross Weight: 106.3 / 120.3 lbs

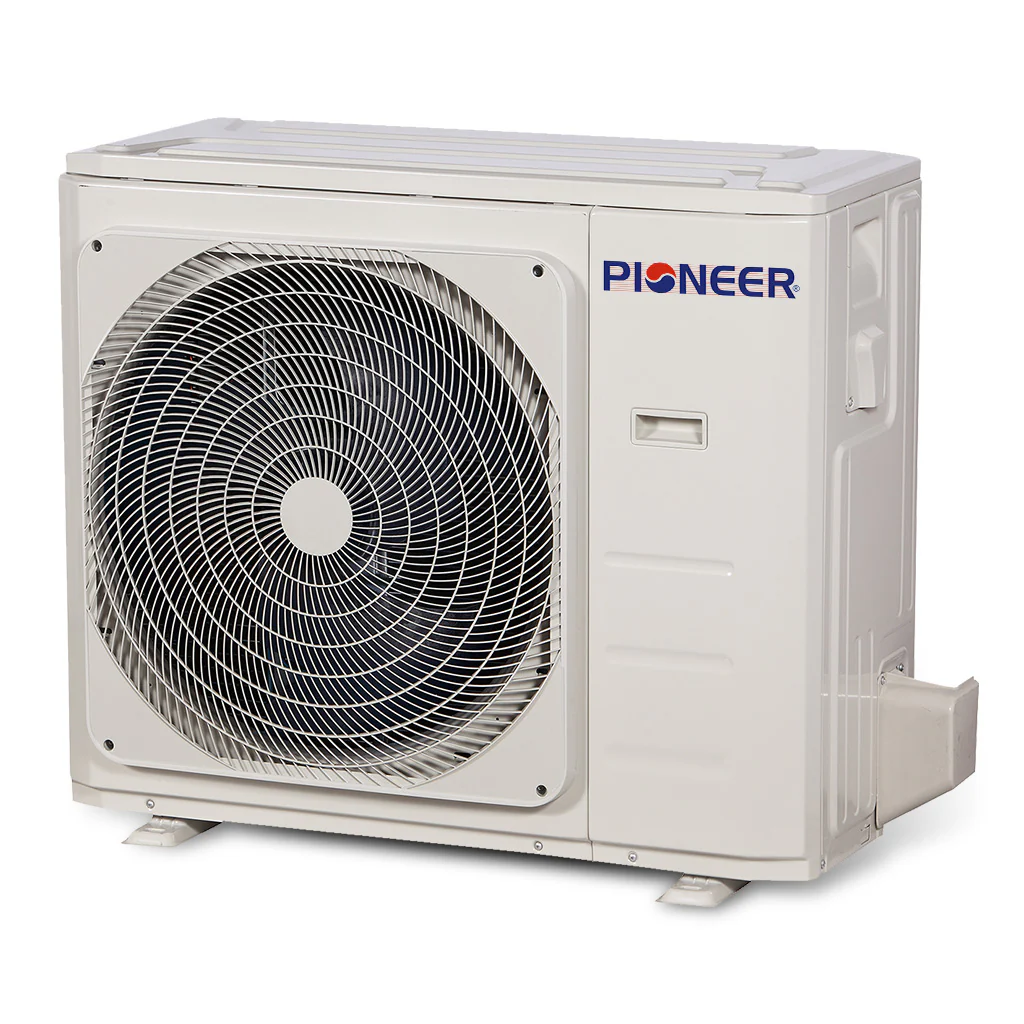

  • Outdoor Unit
    • Part Number: YN036GMSI20RUG
    • Breaker Needed: 40A (double-pole)
    • Sound Level: 63 dB(A)
    • Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
    • Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34"-7/8 Inches
    • Net / Gross Weight: 152.4 / 162.5 lbs

Dimension Chart

47¼ 29½ 11⅞ 37¼ 16¼ 31⅞ 2¼ ¾ 8½

Summary

  • High Efficiency Quantum Ultra Slim-Duct Ceiling Concealed Split Heat Pump System
  • Cooling capacity: 36,000 BTU/H with 18.7 SEER2 / 10.1 EER2 efficiency
  • Heating capacity: 40,000 BTU/H with 10.2 HSPF2 / 3.7 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Slim-Duct Ceiling Concealed Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • FOLLOW ME, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • AHRI Certificate
  • Energy Guide
  • Submittal Sheet
  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 36,000 BTU/h
    • Cooling Capacity Range: 7,900~42,500 BTU/h
    • Cooling SEER2: 18.7 BTU/W.h
    • Cooling EER2: 10.1 BTU/W.h
    • Heating Rated Capacity: 40,000 BTU/h
    • Heating Capacity Range: 8,100~43,500 BTU/h
    • Heating HSPF2 (Region IV/V): 10.2 / 7.8 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.7 / 2.1 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 1,000~1,400 sq ft
    • Minimum Room Size: 104 sq ft
    • Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
    • AHRI Reference: 218010993
  • Indoor Unit
    • Part Number: RB036GMSILDFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 1,235 / 1,059 / 941 / 765 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 45 / 39.5 / 33 / 30 dB(A)
    • Product Dimensions (WDH): 47"-1/4 x 29"-1/2 x 11"-7/8 Inches
    • Carton Dimensions (WDH): 56"-1/8 x 33"-7/8 x 14"-1/8 Inches
    • Net / Gross Weight: 106.3 / 120.3 lbs
  • Outdoor Unit
    • Part Number: YN036GMSI20RUG
    • Breaker Needed: 40A (double-pole)
    • Sound Level: 63 dB(A)
    • Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
    • Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34"-7/8 Inches
    • Net / Gross Weight: 152.4 / 162.5 lbs

Dimension Chart

47¼ 29½ 11⅞ 37¼ 16¼ 31⅞ 2¼ ¾ 8½

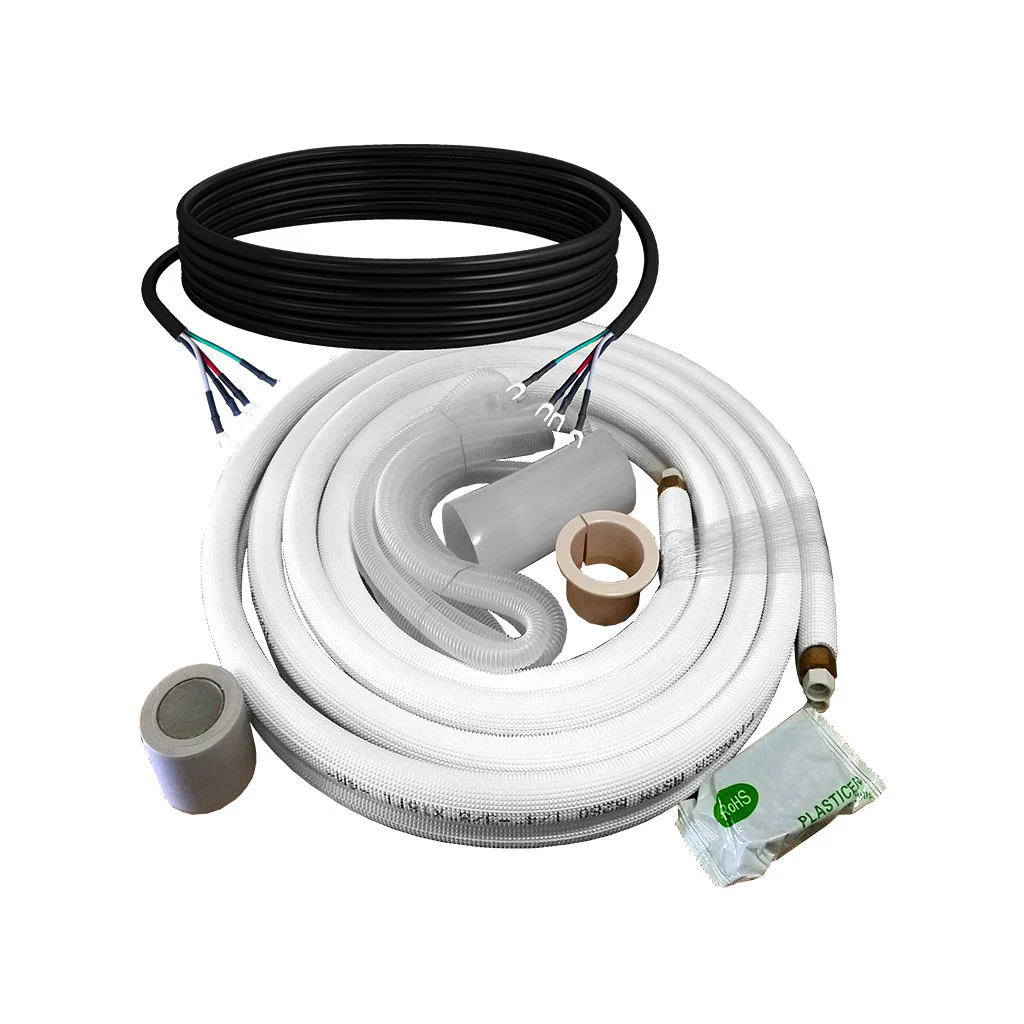

Select Installation Kit Options
From $1,297.80

Original: $3,708.00

-65%
Pioneer® Quantum Ultra™ 36,000 BTU 18.7 SEER2 230V Slim-Duct Ceiling Concealed Mini-Split Air Conditioner Inverter Heat Pump Full Set—

$3,708.00

$1,297.80
