Pioneer® Quantum Ultra™ 16,000 BTU 23.8 SEER2 230V Floor/Low-Wall Mounted Console Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Summary
- High Efficiency Quantum Ultra Floor/Low-Wall Mounted Console Split Heat Pump System
- Cooling capacity: 16,000 BTU/H with 23.8 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 17,000 BTU/H with 13.5 HSPF2 / 3.4 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Floor/Low-Wall Mounted Console Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature
Technical Information & Performance
- AHRI Certificate
- Energy Guide
- Submittal Sheet
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 16,000 BTU/h
- Cooling Capacity Range: 4,700~18,000 BTU/h
- Cooling SEER2: 23.8 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 17,000 BTU/h
- Heating Capacity Range: 7,300~22,900 BTU/h
- Heating HSPF2 (Region IV/V): 13.5 / 9.4 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.4 / 2.16 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 500~750 sq ft
- Minimum Room Size: 227 sq ft
- Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
- AHRI Reference: 218010990
-

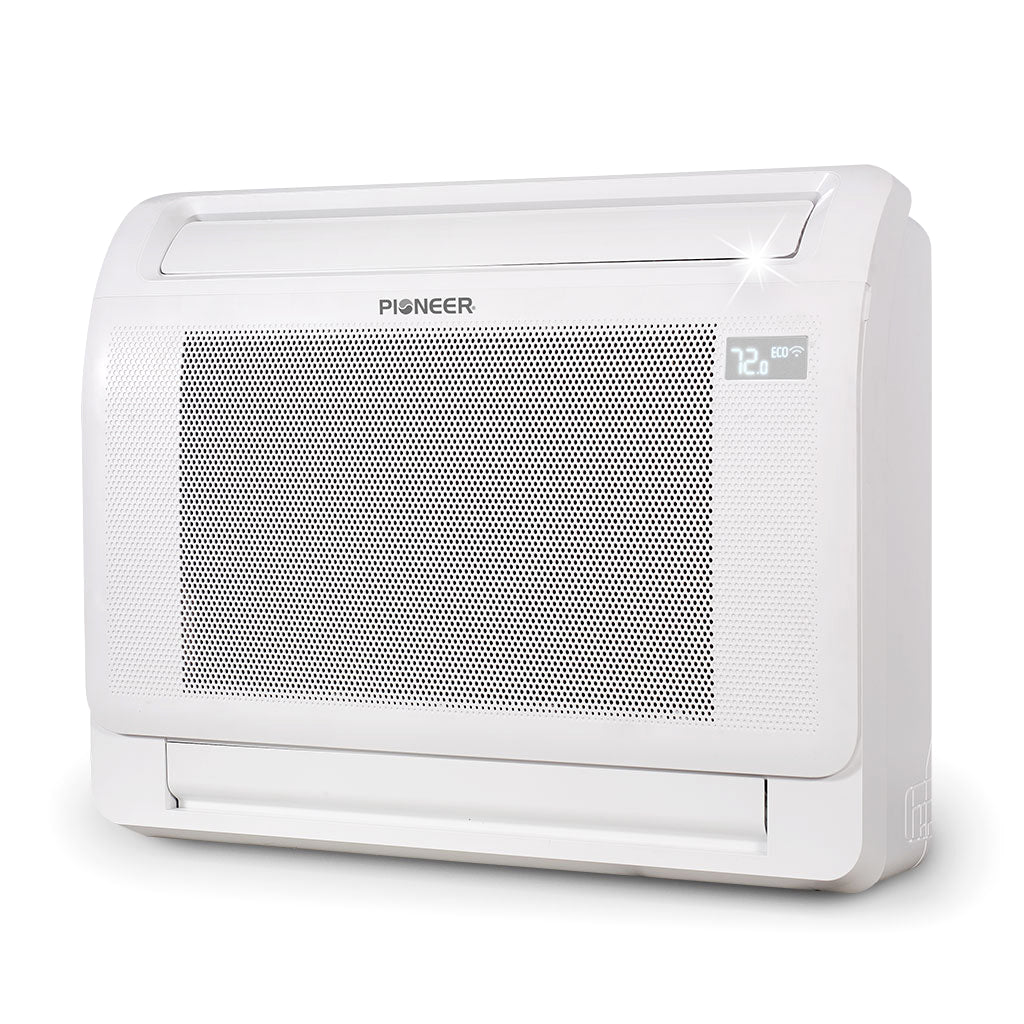

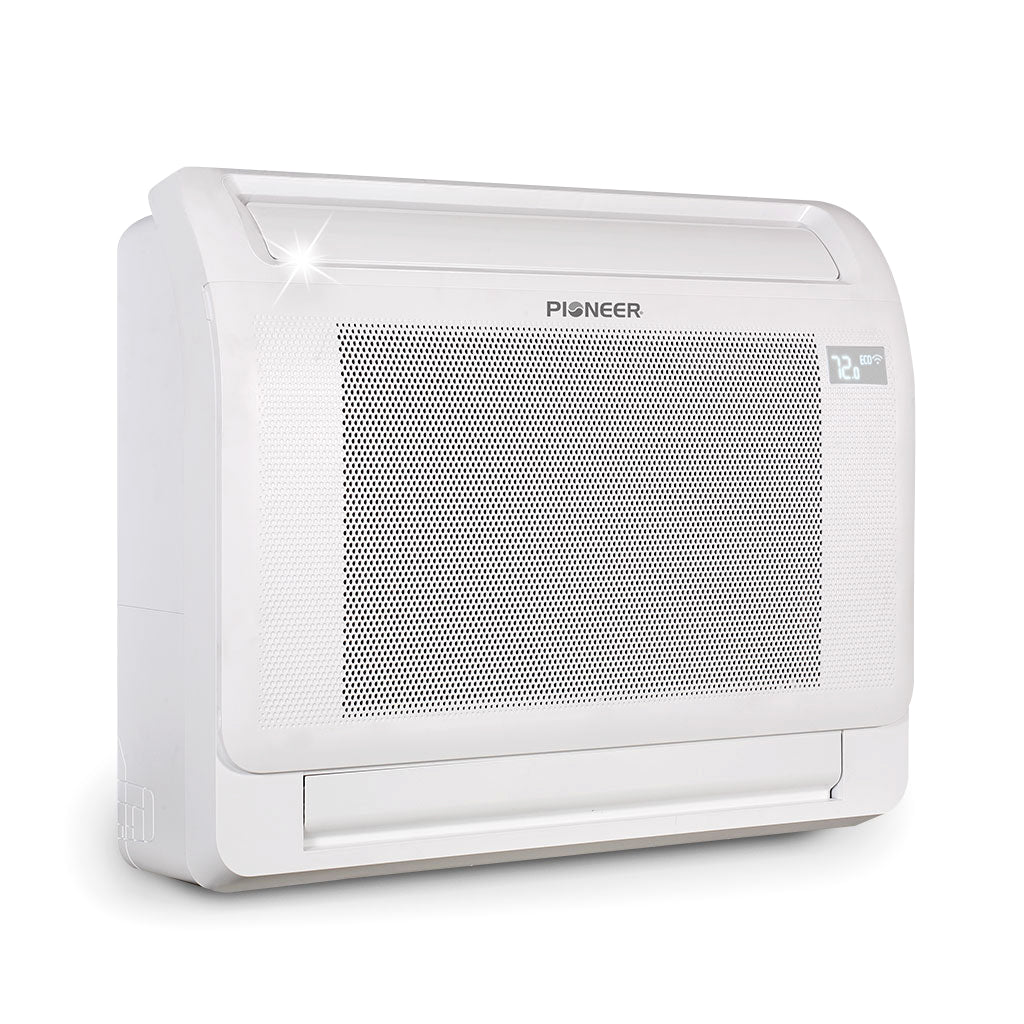

Indoor Unit
- Part Number: FB018GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 441 / 382 / 324 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 41.5 / 39 / 28.5 dB(A)
- Product Dimensions (WDH): 31"-1/4 x 7"-7/8 x 24"-1/2 Inches
- Carton Dimensions (WDH): 34"-1/8 x 11" x 28"-3/8 Inches
- Net / Gross Weight: 32.9 / 41.9 lbs
-

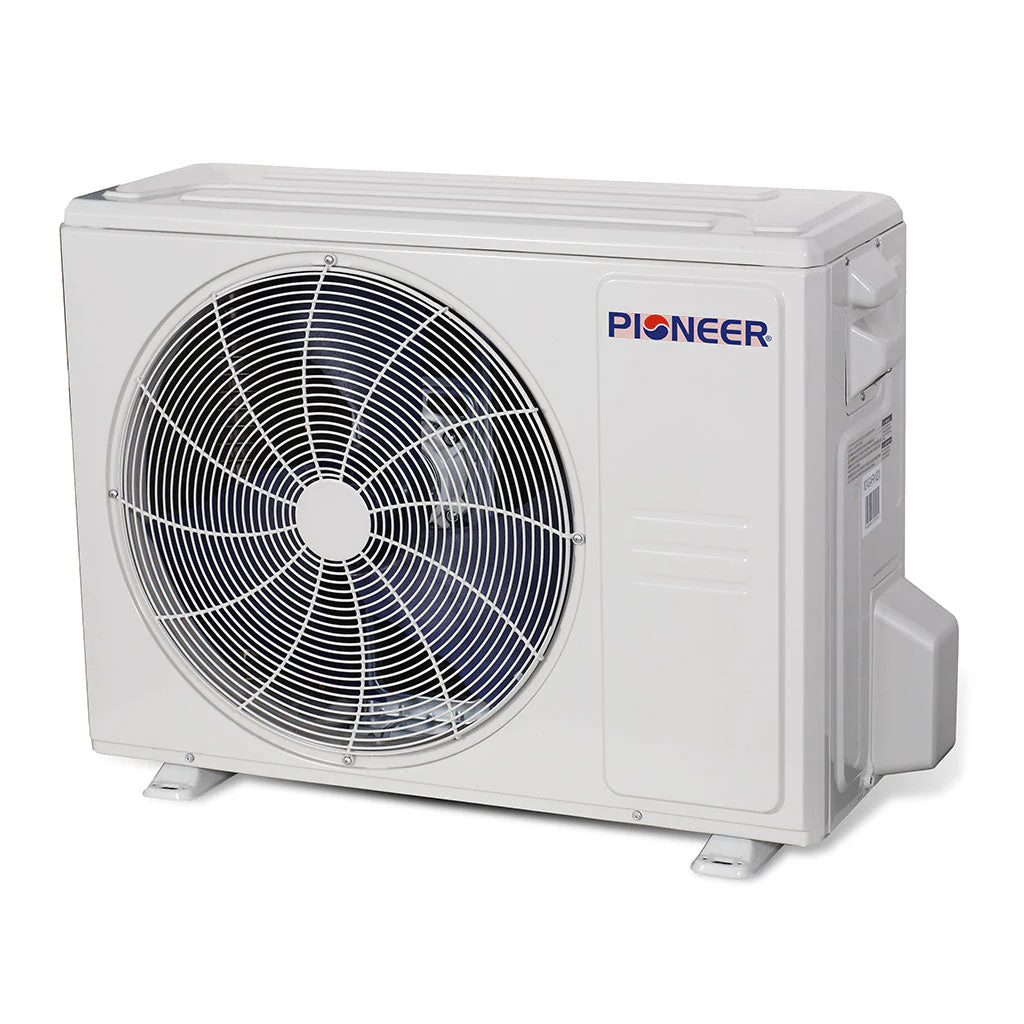

Outdoor Unit
- Part Number: YN018GMSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 57 dB(A)
- Net Dimensions (WDH): 35" x 13"-1/2 x 26"-1/2 Inches
- Carton Dimensions (WDH): 39"-1/4 x 15"-5/8 x 29"-1/8 Inches
- Net / Gross Weight: 92.6 / 100.3 lbs
Dimension Chart
