Summary

• High Efficiency Quantum Ultra Single-Way Ceiling Recessed Cassette Split Heat Pump System
• Cooling capacity: 18,000 BTU/H with 22.2 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 18,000 BTU/H with 12.2 HSPF2 / 3.3 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Single-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

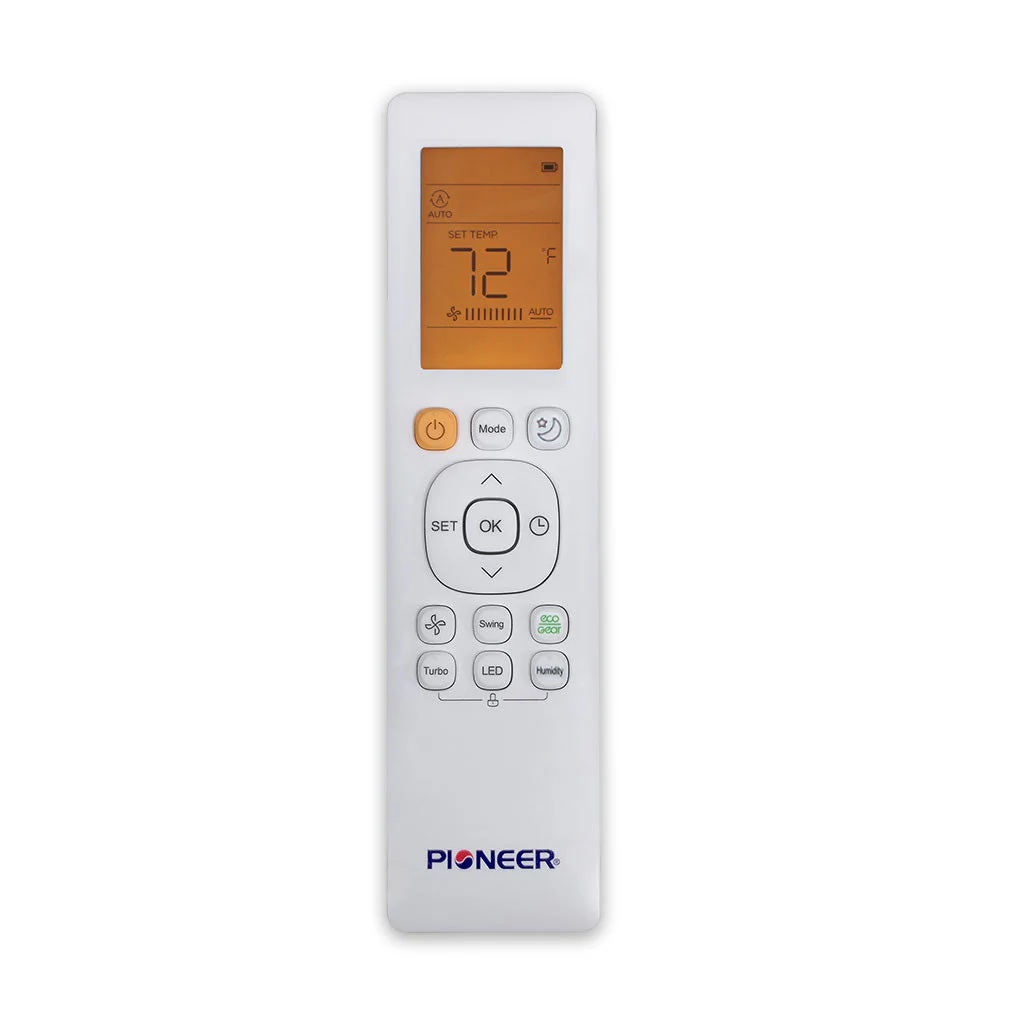

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

• AHRI Certificate
• Energy Guide
• Submittal Sheet

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 18,000 BTU/h
  • Cooling Capacity Range: 4,000~18,800 BTU/h
  • Cooling SEER2: 22.2 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 18,000 BTU/h
  • Heating Capacity Range: 7,600~22,800 BTU/h
  • Heating HSPF2 (Region IV/V): 12.2 / 8.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.3 / 2.24 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 500~750 sq ft
  • Minimum Room Size: 54 sq ft
  • Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)
  • AHRI Reference: 218010988

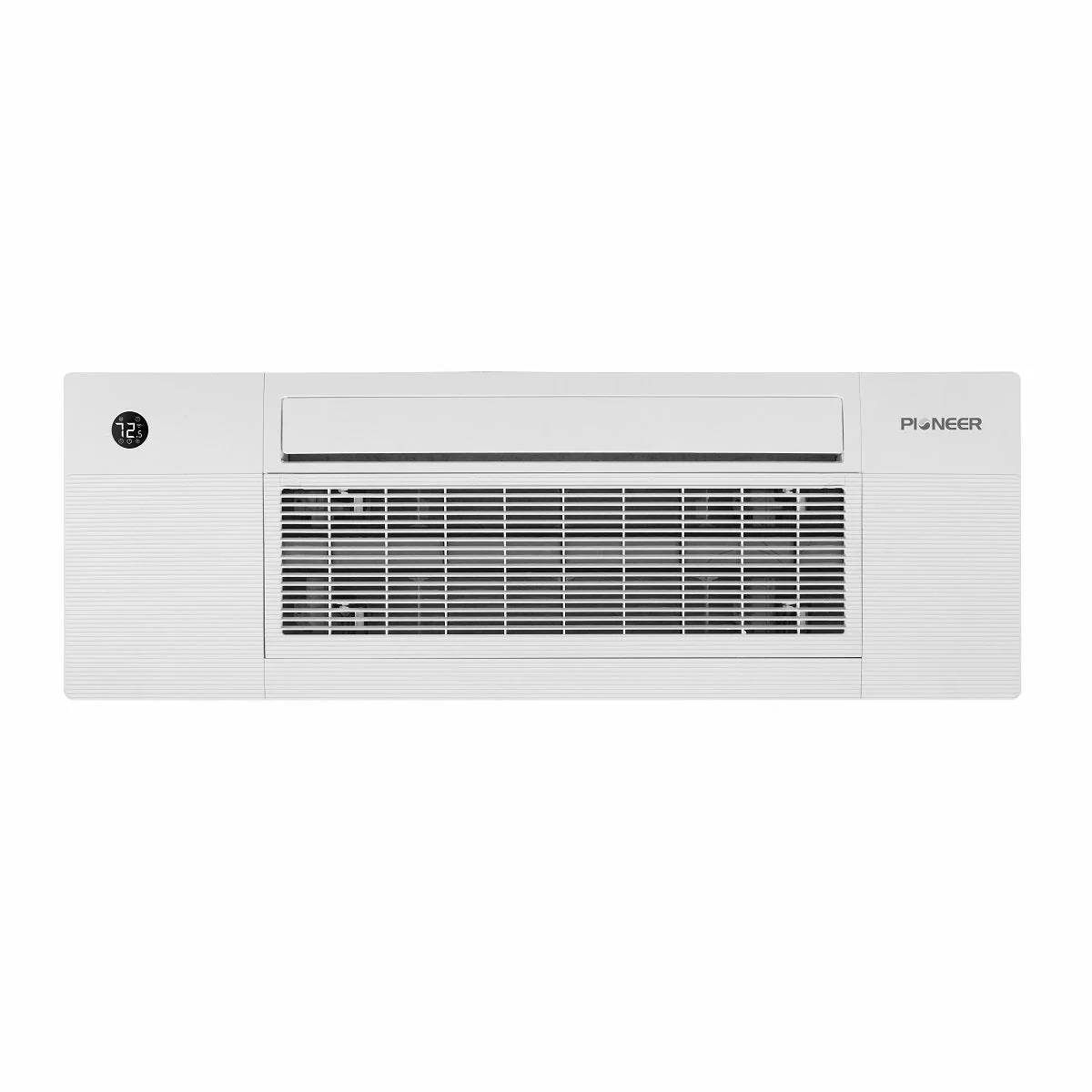

• Indoor Unit
  • Part Number: CK018GMSILDFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 400 / 352 / 300 / 258 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 48 / 44 / 41 / 30 / 24 dB(A)
  • Product Dimensions (WDH): 50"-3/8 x 13"-1/4 x 10" Inches
  • Carton Dimensions (WDH): 57"-5/8 x 22"-1/2 x 22"-5/8 Inches
  • Net / Gross Weight: 45.5 / 83.0 lbs
• Decorative Panel
  • Part Number: ---
  • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8 Inches
  • Carton Dimensions (WDH): Packed with the indoor unit inside same carton
  • Net / Gross Weight: 15.0 / N/A lbs

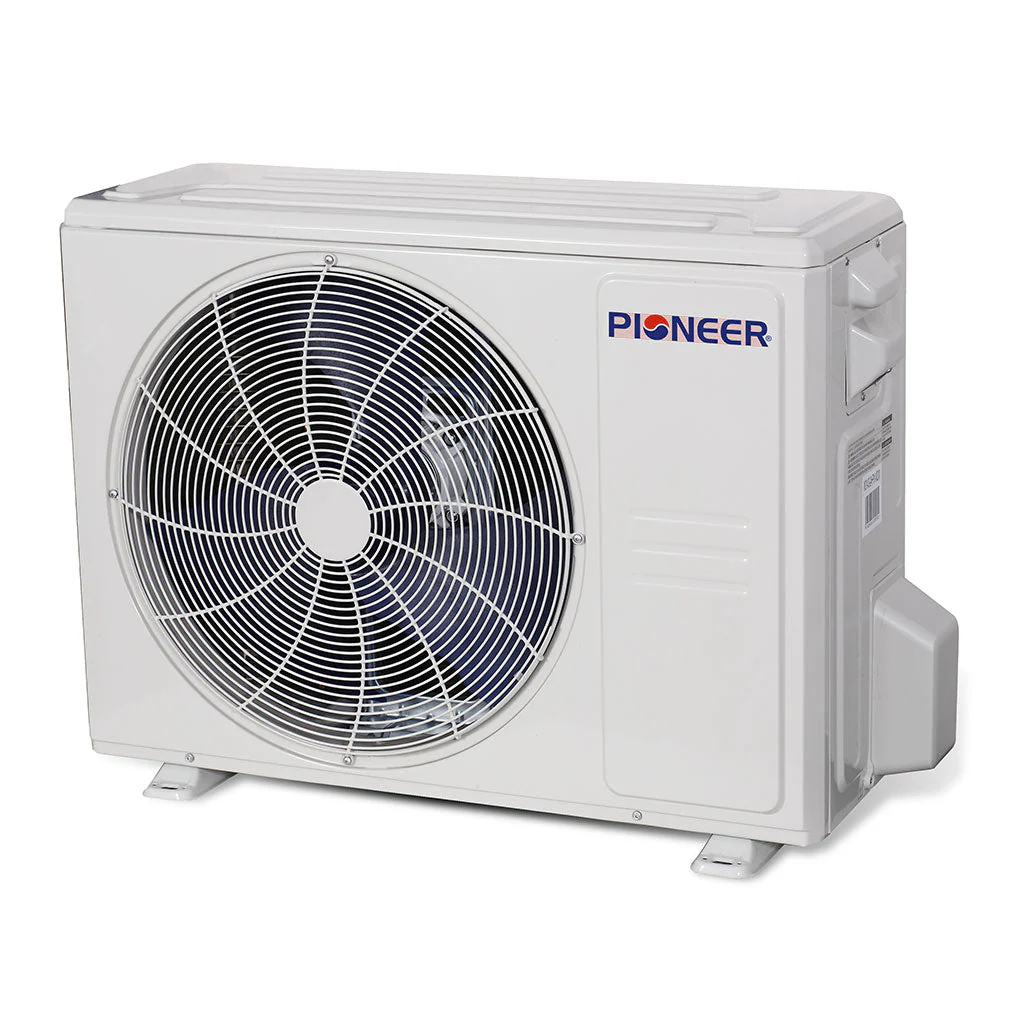

• Outdoor Unit
  • Part Number: YN018GMSI24RPG
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 58 dB(A)
  • Net Dimensions (WDH): 35" x 13"-1/2 x 26"-1/2 Inches
  • Carton Dimensions (WDH): 39"-1/4 x 15"-5/8 x 29"-1/8 Inches
  • Net / Gross Weight: 92.6 / 100.3 lbs
