Pioneer® Multi Zone 9,000 BTU Diamante Ultra Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 9,000 BTU/h
- Cooling SEER: 23
- Heating Capacity: 9,500 BTU/h
- Heating HSPF: 10
- Suitable Area: 250~350 Sq.F
- Air Flow (Hi/Med/Lo): 382 / 324 / 265 CFM
- Sound Level (Hi/Med/Lo/Mute): 39 / 34 / 29 / 27 dB(A)
- Net Dimensions (WDH): 32-1/4 × 7-5/8 × 12 Inches
- Carton Dimensions (WDH): 35 × 10-3/8 × 15 Inches
- Net / Gross Weight: 19.8 / 24.3 Lbs
Manuals & Documents
-
Technical Brochure
- Installation and User's Manual
What's Included
- Indoor Unit

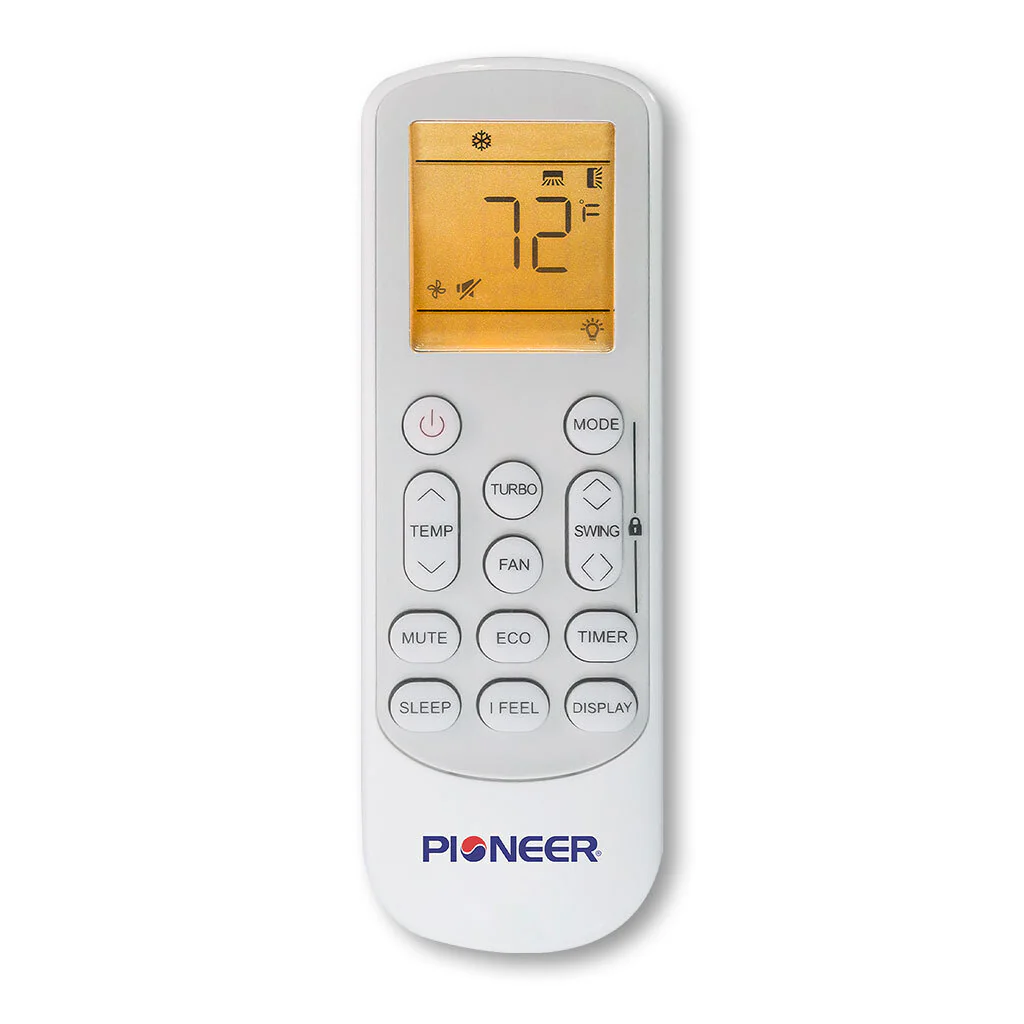

- Wireless Remote Control
- Wi-Fi Module w/ Free App

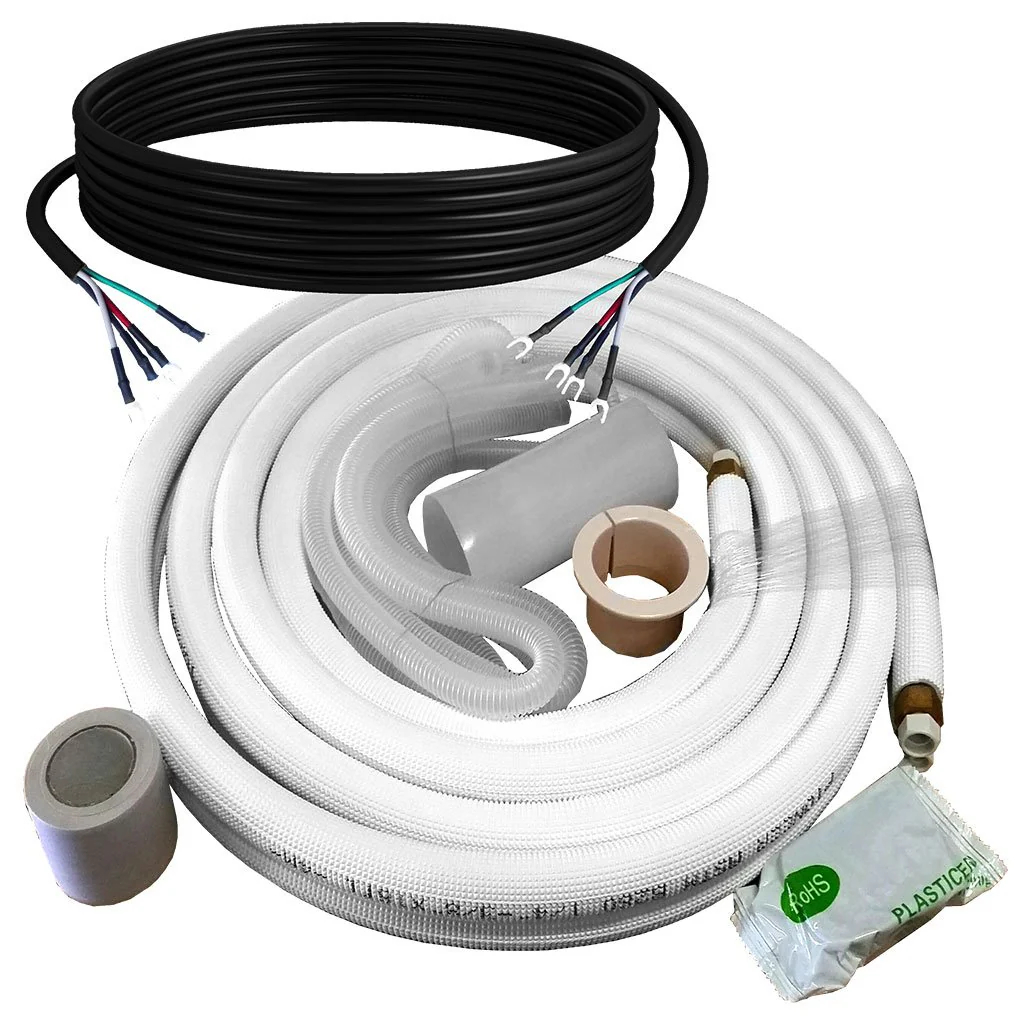

- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 9,000 BTU/h
- Cooling SEER: 23
- Heating Capacity: 9,500 BTU/h
- Heating HSPF: 10
- Suitable Area: 250~350 Sq.F
- Air Flow (Hi/Med/Lo): 382 / 324 / 265 CFM
- Sound Level (Hi/Med/Lo/Mute): 39 / 34 / 29 / 27 dB(A)
- Net Dimensions (WDH): 32-1/4 × 7-5/8 × 12 Inches
- Carton Dimensions (WDH): 35 × 10-3/8 × 15 Inches
- Net / Gross Weight: 19.8 / 24.3 Lbs
Manuals & Documents
-
Technical Brochure
- Installation and User's Manual
What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Select Installation Kit Options
From $178.00
Pioneer® Multi Zone 9,000 BTU Diamante Ultra Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V—
$178.00
Description
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 9,000 BTU/h
- Cooling SEER: 23
- Heating Capacity: 9,500 BTU/h
- Heating HSPF: 10
- Suitable Area: 250~350 Sq.F
- Air Flow (Hi/Med/Lo): 382 / 324 / 265 CFM
- Sound Level (Hi/Med/Lo/Mute): 39 / 34 / 29 / 27 dB(A)
- Net Dimensions (WDH): 32-1/4 × 7-5/8 × 12 Inches
- Carton Dimensions (WDH): 35 × 10-3/8 × 15 Inches
- Net / Gross Weight: 19.8 / 24.3 Lbs
Manuals & Documents
-
Technical Brochure
- Installation and User's Manual
What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
