Pioneer® Multi-Zone 9,500 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Product image 1
1 / 3

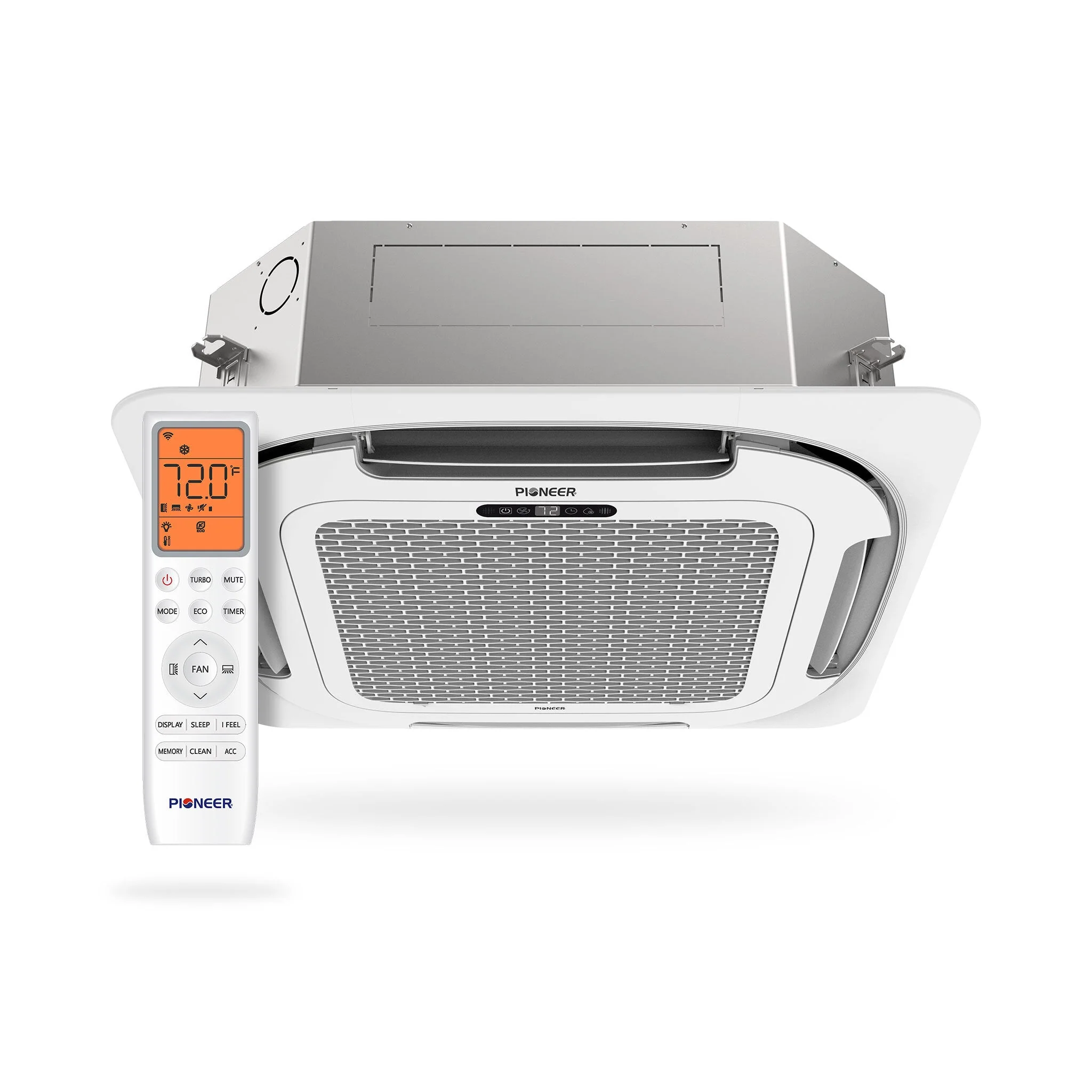

Pioneer® Multi-Zone 9,500 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Specifications

Indoor Unit

  • Part Number: CT009GLSILCFHG
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Refrigerant Type: R454b
  • Recommended Room Size: 250~350 sq ft
  • Minimum Room Size: 28 sq ft
  • Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
  • Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
  • Net / Gross Weight: 32.0 / 38.6 lbs
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Decorative Panel

  • Part Number: CT0918DPNL
  • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
  • Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
  • Net / Gross Weight: 6.0 / 9.5 lbs

Performance

  • Cooling Rated Capacity: 9,500 BTU/h
  • Cooling Capacity Range: 2,000~10,400 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 2,500~12,500 BTU/h
  • Heating HSPF2 (Region IV/V): 10.5 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.8 / 1.95 W/W
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 33 / 31 / 30 dB(A)
  • Moisture Removal: 55 Pint/day

Multi-Zone Compatibility

  • Dual (2) Zone Condenser: YN020GLSI24M2G
  • Triple (3) Zone Condenser: YN030GLSI24M3G
  • Quad (4) Zone Condenser: YN040GLSI24M4G
  • Quint (5) Zone Condenser: YN050GLSI24M5G

What's Included

    • Indoor Unit
    • Wireless Remote Control
    • Wi-Fi Module w/ Free App
    • Full Installation Kit (unless "No Installation Kit" is selected)
    • Flare Connection Leak Guard Sealer
    • Installation Manual
    • User’s Manual
    • Manufacturer Warranty

Specifications

Indoor Unit

  • Part Number: CT009GLSILCFHG
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Refrigerant Type: R454b
  • Recommended Room Size: 250~350 sq ft
  • Minimum Room Size: 28 sq ft
  • Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
  • Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
  • Net / Gross Weight: 32.0 / 38.6 lbs
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Decorative Panel

  • Part Number: CT0918DPNL
  • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
  • Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
  • Net / Gross Weight: 6.0 / 9.5 lbs

Performance

  • Cooling Rated Capacity: 9,500 BTU/h
  • Cooling Capacity Range: 2,000~10,400 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 2,500~12,500 BTU/h
  • Heating HSPF2 (Region IV/V): 10.5 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.8 / 1.95 W/W
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 33 / 31 / 30 dB(A)
  • Moisture Removal: 55 Pint/day

Multi-Zone Compatibility

  • Dual (2) Zone Condenser: YN020GLSI24M2G
  • Triple (3) Zone Condenser: YN030GLSI24M3G
  • Quad (4) Zone Condenser: YN040GLSI24M4G
  • Quint (5) Zone Condenser: YN050GLSI24M5G

What's Included

    • Indoor Unit
    • Wireless Remote Control
    • Wi-Fi Module w/ Free App
    • Full Installation Kit (unless "No Installation Kit" is selected)
    • Flare Connection Leak Guard Sealer
    • Installation Manual
    • User’s Manual
    • Manufacturer Warranty
Select System Installation Kit
Select Pipe Length
From $249.55

Original: $713.00

-65%
Pioneer® Multi-Zone 9,500 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V—

$713.00

$249.55

Description

Specifications

Indoor Unit

  • Part Number: CT009GLSILCFHG
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Refrigerant Type: R454b
  • Recommended Room Size: 250~350 sq ft
  • Minimum Room Size: 28 sq ft
  • Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
  • Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
  • Net / Gross Weight: 32.0 / 38.6 lbs
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Decorative Panel

  • Part Number: CT0918DPNL
  • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
  • Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
  • Net / Gross Weight: 6.0 / 9.5 lbs

Performance

  • Cooling Rated Capacity: 9,500 BTU/h
  • Cooling Capacity Range: 2,000~10,400 BTU/h
  • Cooling SEER2: 23.0 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 9,500 BTU/h
  • Heating Capacity Range: 2,500~12,500 BTU/h
  • Heating HSPF2 (Region IV/V): 10.5 / 9.0 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.8 / 1.95 W/W
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 33 / 31 / 30 dB(A)
  • Moisture Removal: 55 Pint/day

Multi-Zone Compatibility

  • Dual (2) Zone Condenser: YN020GLSI24M2G
  • Triple (3) Zone Condenser: YN030GLSI24M3G
  • Quad (4) Zone Condenser: YN040GLSI24M4G
  • Quint (5) Zone Condenser: YN050GLSI24M5G

What's Included

    • Indoor Unit
    • Wireless Remote Control
    • Wi-Fi Module w/ Free App
    • Full Installation Kit (unless "No Installation Kit" is selected)
    • Flare Connection Leak Guard Sealer
    • Installation Manual
    • User’s Manual
    • Manufacturer Warranty
