Specifications

• Part Number: UT024GLSILSFHG
• Power Supply: 208~230V, 60Hz, 1Ph
• Refrigerant Type: R454b
• Recommended Room Size: 750~1,000 sq ft
• Minimum Room Size (Ceiling Suspended): 62 sq ft
• Minimum Room Size (Floor/Low Wall): 260 sq ft
• Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
• Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
• Net / Gross Weight: 57.3 / 68.3 lbs
• Piping Diameter: 5/8" (Gas) / 1/4" (Liquid)

Performance

• Cooling Rated Capacity: 22,200 BTU/h
• Cooling Capacity Range: 6,010~24,610 BTU/h
• Cooling SEER2: 20.0 BTU/W.h
• Cooling EER2: 11.7 BTU/W.h
• Heating Rated Capacity: 24,400 BTU/h
• Heating Capacity Range: 4,750~28,640 BTU/h
• Heating HSPF2 (Region IV/V): 9.5 / 8.5 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.44 / 2.0 W/W
• Air Flow (Turbo/Hi/Med/Lo/Mute): 647 / 588 / 517 / 470 / 412 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 53 / 52 / 48 / 44 / 40 dB(A)
• Moisture Removal: 130 Pint/day

Multi-Zone Compatibility

• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

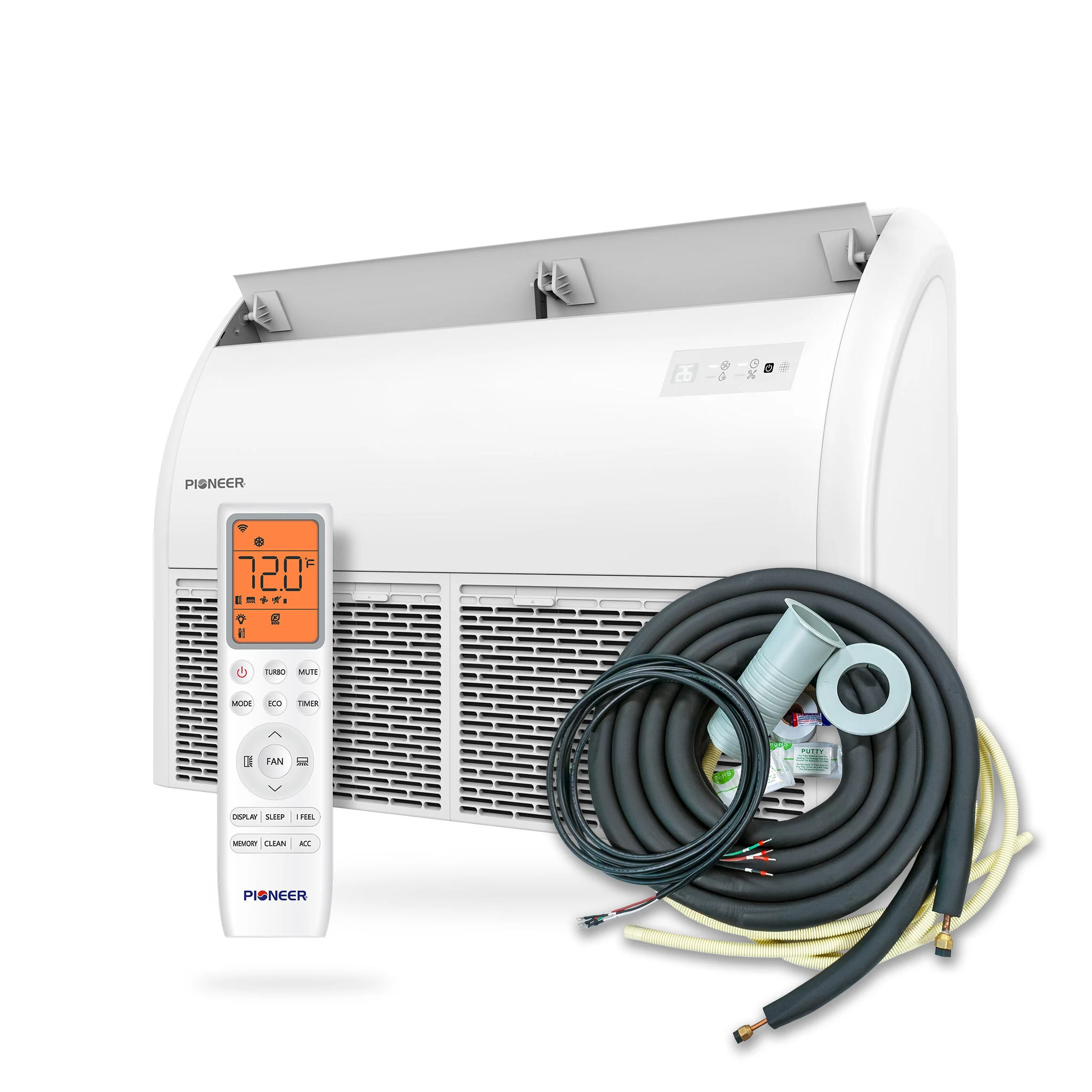

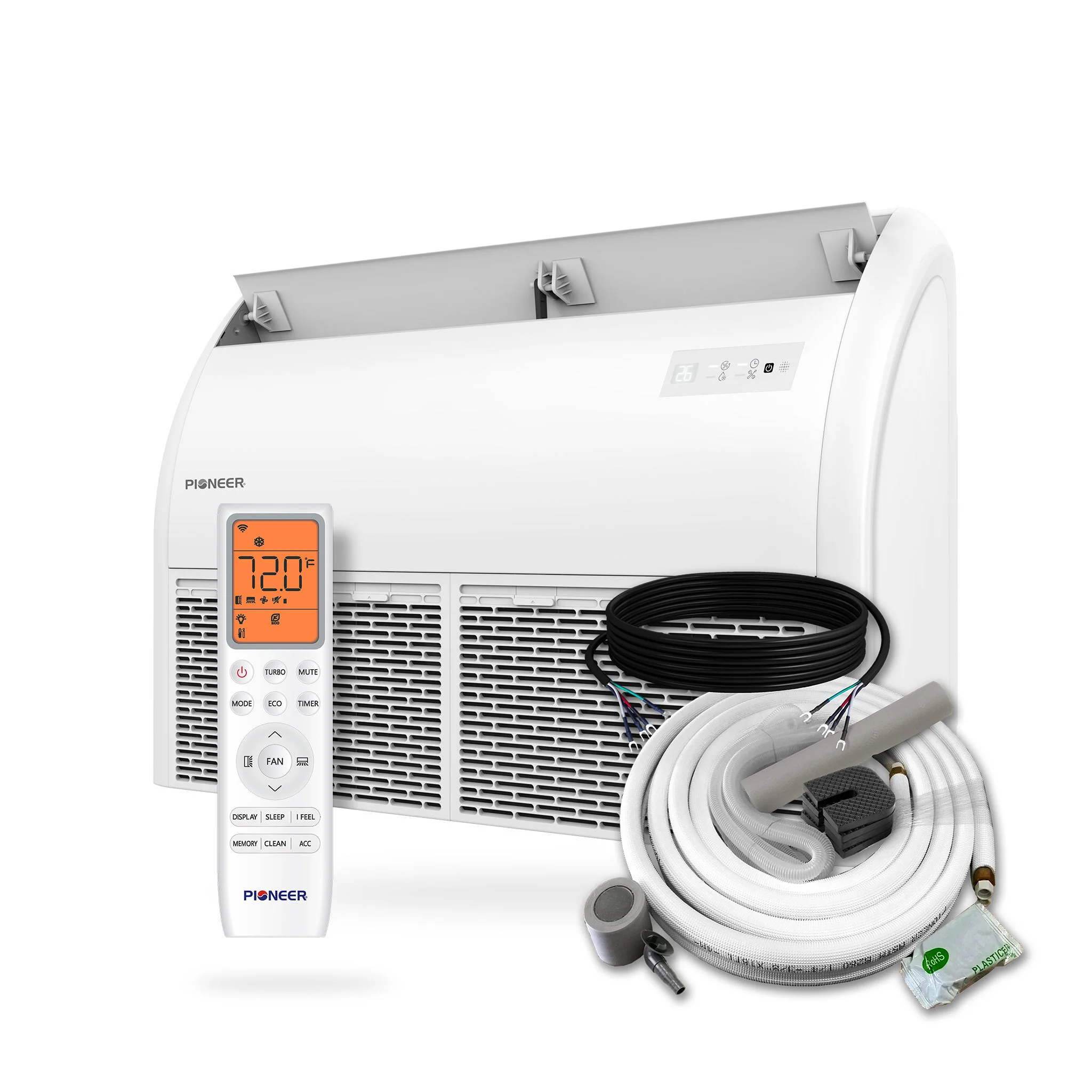

What's Included

• • Indoor Unit
  • Wireless Remote Control
  • Wi-Fi Module w/ Free App
  • Full Installation Kit (unless "No Installation Kit" is selected)
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
