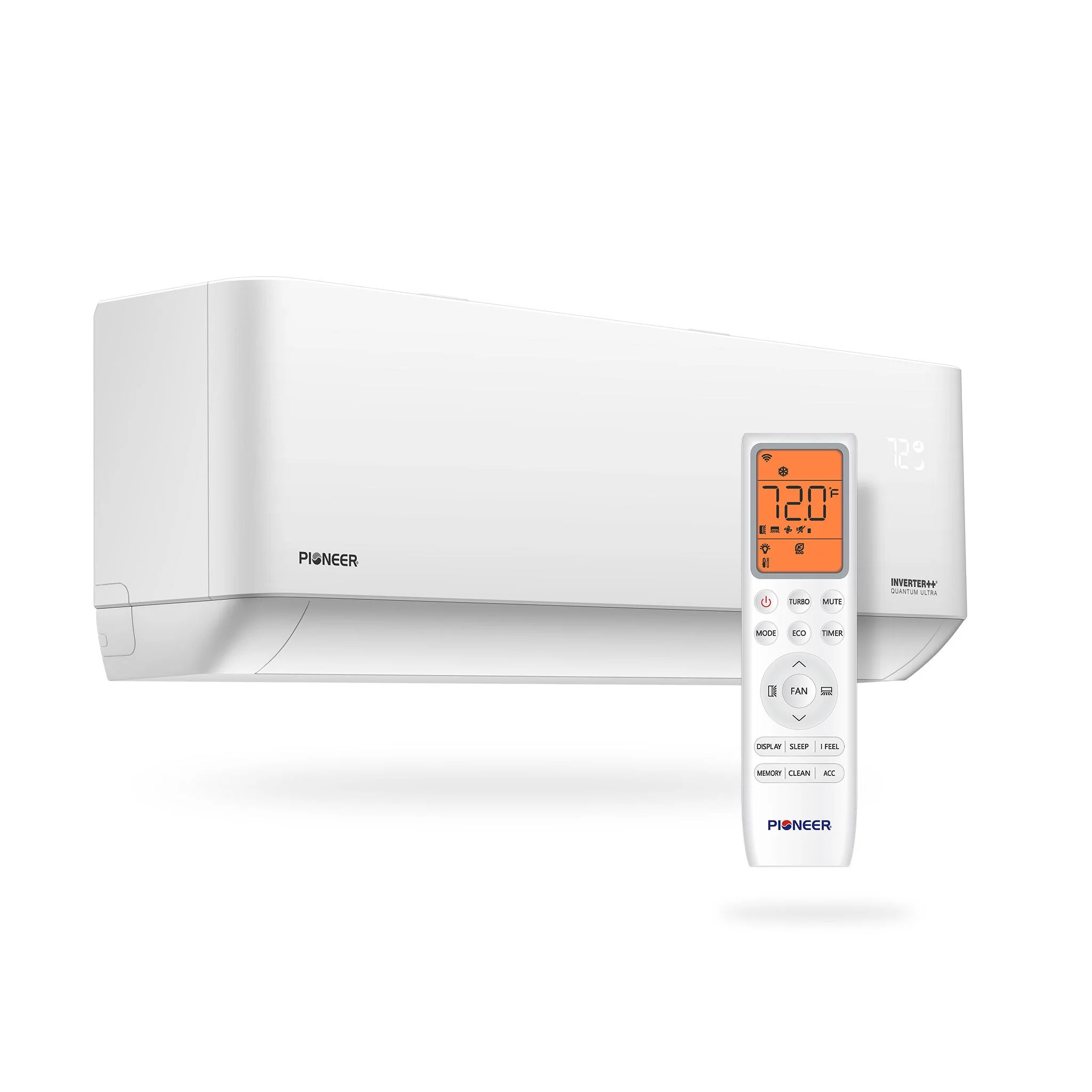

Pioneer® Multi-Zone 12,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Product image 1
1 / 3

Pioneer® Multi-Zone 12,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Specifications

  • Part Number: WT012GLSI24HLG
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Refrigerant Type: R454B
  • Recommended Room Size: 350~500 sq ft
  • Minimum Room Size: 40 sq ft
  • Product Dimensions (WDH): 36"-1/2 x 7"-5/8 x 12" Inches
  • Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
  • Net / Gross Weight: 23.1 / 30.9 lbs
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Performance

  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,500~12,500 BTU/h
  • Cooling SEER2: 24.0 BTU/W.h
  • Cooling EER2: 13.0 BTU/W.h
  • Heating Rated Capacity: 12,600 BTU/h
  • Heating Capacity Range: 2,500~15,000 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 8.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 470 / 411 / 323 / 205 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 46 / 44 / 36 / 32 / 30 dB(A)
  • Moisture Removal: 80 Pint/day

Multi-Zone Compatibility

  • Dual (2) Zone Condenser: YN020GLSI24M2G
  • Triple (3) Zone Condenser: YN030GLSI24M3G
  • Quad (4) Zone Condenser: YN040GLSI24M4G
  • Quint (5) Zone Condenser: YN050GLSI24M5G

What's Included

  • Indoor Unit
  • Wireless Remote Control
  • Wi-Fi Module w/ Free App
  • Full Installation Kit (unless "No Installation Kit" is selected)
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Specifications

  • Part Number: WT012GLSI24HLG
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Refrigerant Type: R454B
  • Recommended Room Size: 350~500 sq ft
  • Minimum Room Size: 40 sq ft
  • Product Dimensions (WDH): 36"-1/2 x 7"-5/8 x 12" Inches
  • Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
  • Net / Gross Weight: 23.1 / 30.9 lbs
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Performance

  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,500~12,500 BTU/h
  • Cooling SEER2: 24.0 BTU/W.h
  • Cooling EER2: 13.0 BTU/W.h
  • Heating Rated Capacity: 12,600 BTU/h
  • Heating Capacity Range: 2,500~15,000 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 8.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 470 / 411 / 323 / 205 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 46 / 44 / 36 / 32 / 30 dB(A)
  • Moisture Removal: 80 Pint/day

Multi-Zone Compatibility

  • Dual (2) Zone Condenser: YN020GLSI24M2G
  • Triple (3) Zone Condenser: YN030GLSI24M3G
  • Quad (4) Zone Condenser: YN040GLSI24M4G
  • Quint (5) Zone Condenser: YN050GLSI24M5G

What's Included

  • Indoor Unit
  • Wireless Remote Control
  • Wi-Fi Module w/ Free App
  • Full Installation Kit (unless "No Installation Kit" is selected)
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
Select System Installation Kit
Select Pipe Length
From $116.55

Original: $333.00

-65%
Pioneer® Multi-Zone 12,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V—

$333.00

$116.55

Description

Specifications

  • Part Number: WT012GLSI24HLG
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Refrigerant Type: R454B
  • Recommended Room Size: 350~500 sq ft
  • Minimum Room Size: 40 sq ft
  • Product Dimensions (WDH): 36"-1/2 x 7"-5/8 x 12" Inches
  • Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
  • Net / Gross Weight: 23.1 / 30.9 lbs
  • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Performance

  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,500~12,500 BTU/h
  • Cooling SEER2: 24.0 BTU/W.h
  • Cooling EER2: 13.0 BTU/W.h
  • Heating Rated Capacity: 12,600 BTU/h
  • Heating Capacity Range: 2,500~15,000 BTU/h
  • Heating HSPF2 (Region IV/V): 10.0 / 8.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 470 / 411 / 323 / 205 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 46 / 44 / 36 / 32 / 30 dB(A)
  • Moisture Removal: 80 Pint/day

Multi-Zone Compatibility

  • Dual (2) Zone Condenser: YN020GLSI24M2G
  • Triple (3) Zone Condenser: YN030GLSI24M3G
  • Quad (4) Zone Condenser: YN040GLSI24M4G
  • Quint (5) Zone Condenser: YN050GLSI24M5G

What's Included

  • Indoor Unit
  • Wireless Remote Control
  • Wi-Fi Module w/ Free App
  • Full Installation Kit (unless "No Installation Kit" is selected)
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
