Summary

Enjoy comfortable indoor atmospheres with an air conditioner heat pump that’s sleek, easy to use, and efficient. Our Pioneer® multi zone 18,000 BTU diamante ultra indoor section 21.5 SEER 230V ductless mini-split wi-fi inverter++ air conditioner heat pump gives you all that and more.

It’s a ductless mini split air conditioner heat pump that comes with Wi-Fi capabilities, allowing you to control and track your AC usage conveniently and remotely. It also offers maximized room capacity with its wall-mount placement and quiet heating and cooling, allowing you to relish your indoor spaces in comfort and peace. Order your Pioneer® multi zone 18,000 BTU diamante ultra indoor section 21.5 SEER 230V ductless mini-split wi-fi inverter++ air conditioner heat pump today.

Performance

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 18,000 BTU/h
• Cooling SEER: 21.5
• Heating Capacity: 18,000 BTU/h
• Heating HSPF: 10
• Suitable Area: 400~650 Sq.F
• Air Flow (Hi/Med/Lo): 735 / 618 / 529 CFM
• Sound Level (Hi/Med/Lo/Mute): 45 / 40/ 35 / 31 dB(A)
• Net Dimensions (WDH): 43-3/8 × 8-3/4 × 13-1/8 Inches
• Carton Dimensions (WDH): 45-7/8 × 11-5/8 × 16 Inches
• Net / Gross Weight: 30.9 / 35.3 Lbs

Manuals & Documents

• Technical Brochure

• Installation and User's Manual

What's Included

• Indoor Unit

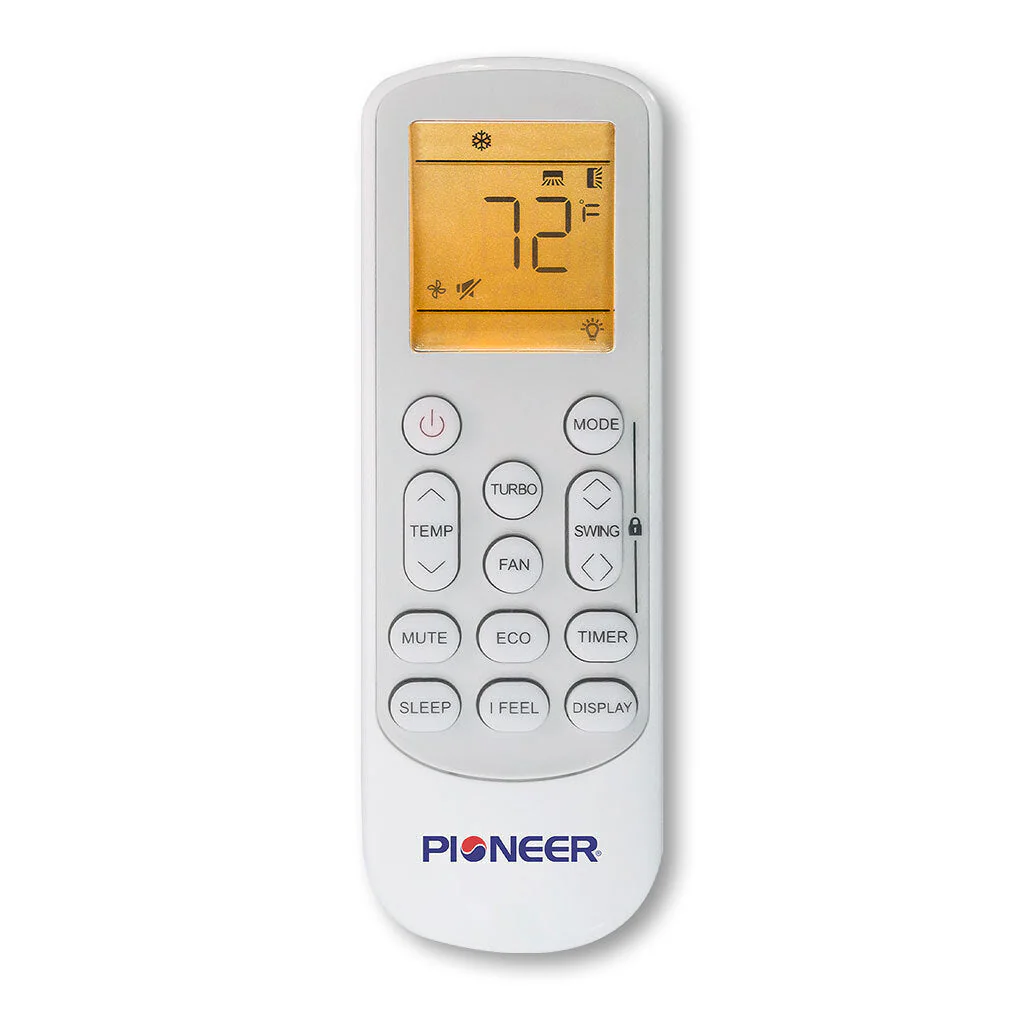

• Wireless Remote Control
• Wi-Fi Module w/ Free App

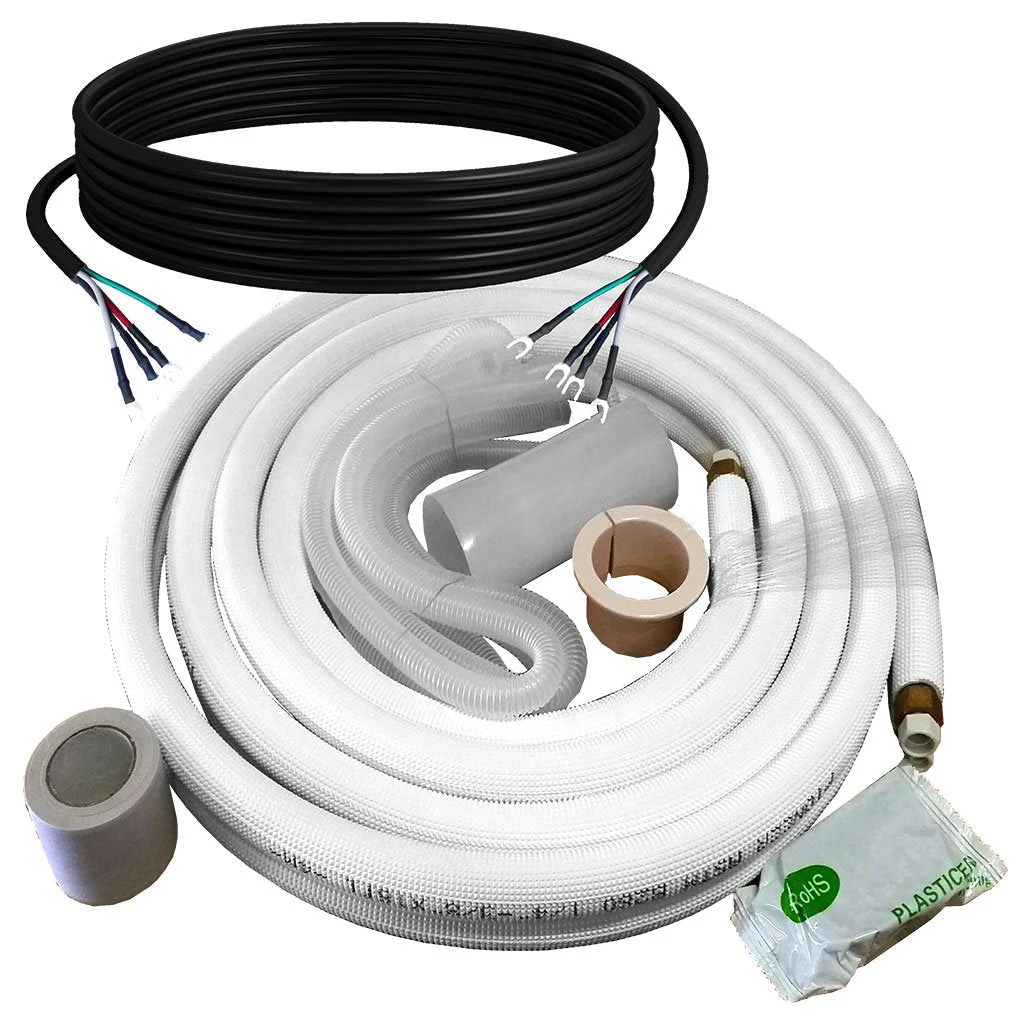

• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty
