Pioneer® Diamante Ultra 12,000 BTU 22 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 115V with 16 Ft. Kit

Overview

Summary

  • Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 22 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 12,000 BTU/H with 9.0 HSPF2 / 3.5 COP efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • Wireless Internet Access Included (Via Free Smartphone App)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $72.00
    • Heating: $254.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit

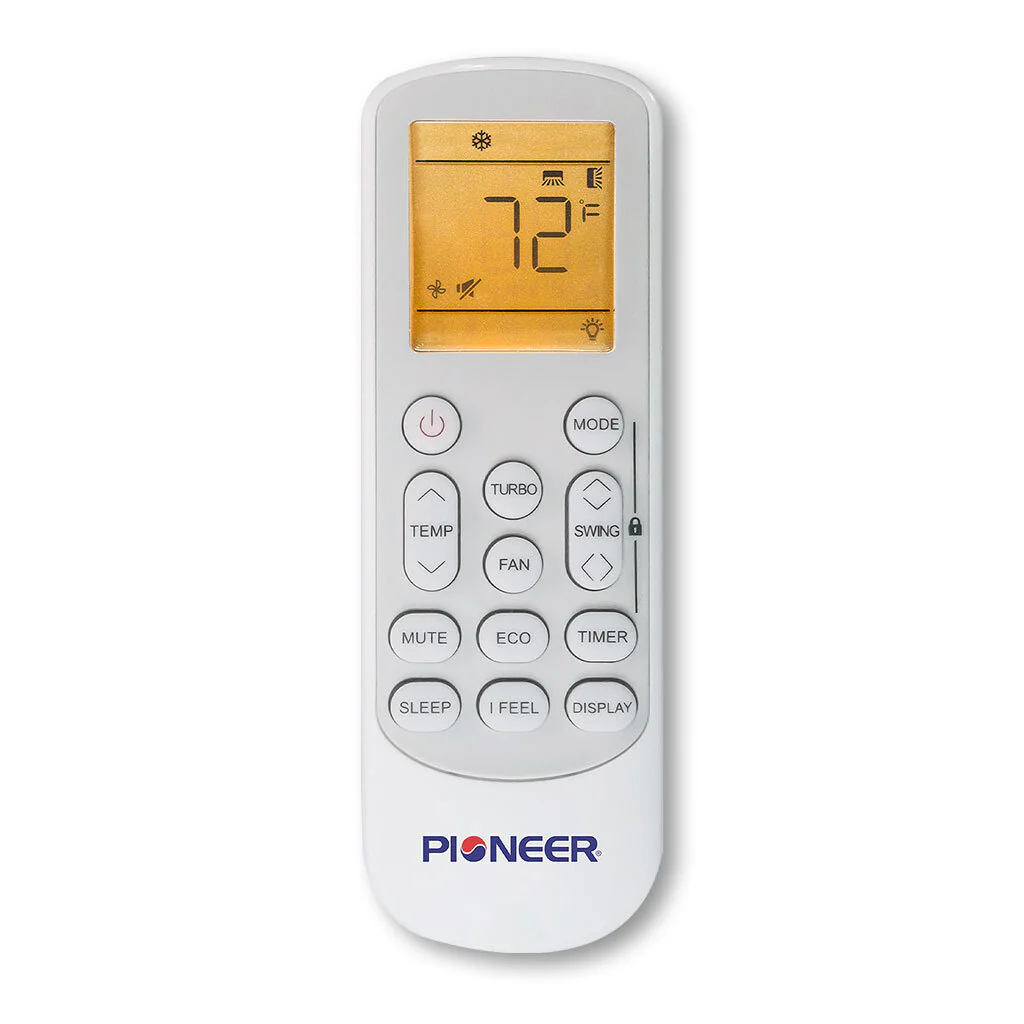

  • Wireless Remote Control (with wall holder and batteries)
  • Internet Control Module
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts (Extendable to up to 7 years)
  • 5 years for Compressor (Extendable to up to 10 years)

Features

[[FEATURES]]

Technical Information

Performance Data

  • Power Supply: 115V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h (1 Ton)
  • Rated Power Input (Cooling): 920W
  • Cooling SEER2: 22 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 12,000 BTU/h (1 Ton)
  • Rated Power Input (Heating): 910W
  • Heating HSPF2: 9.0 BTU/W.h
  • Heating C.O.P.: 3.5 W/W
  • Refrigerant Type: R410A
  • Recommended Application Area: 200~450 Sq.Ft

Indoor Unit Data

  • Part Number: WT012ALFI22HLD
  • Air Flow (Hi/Med/Lo): 471 / 382 / 294 CFM
  • Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
  • Net Dimensions (WDH): 36-1/4 x 7-5/8 x 12 Inches
  • Carton Dimensions (WDH): 39 x 10-3/8 x 15 Inches
  • Net / Gross Weight: 23.1 / 26.5 Lbs

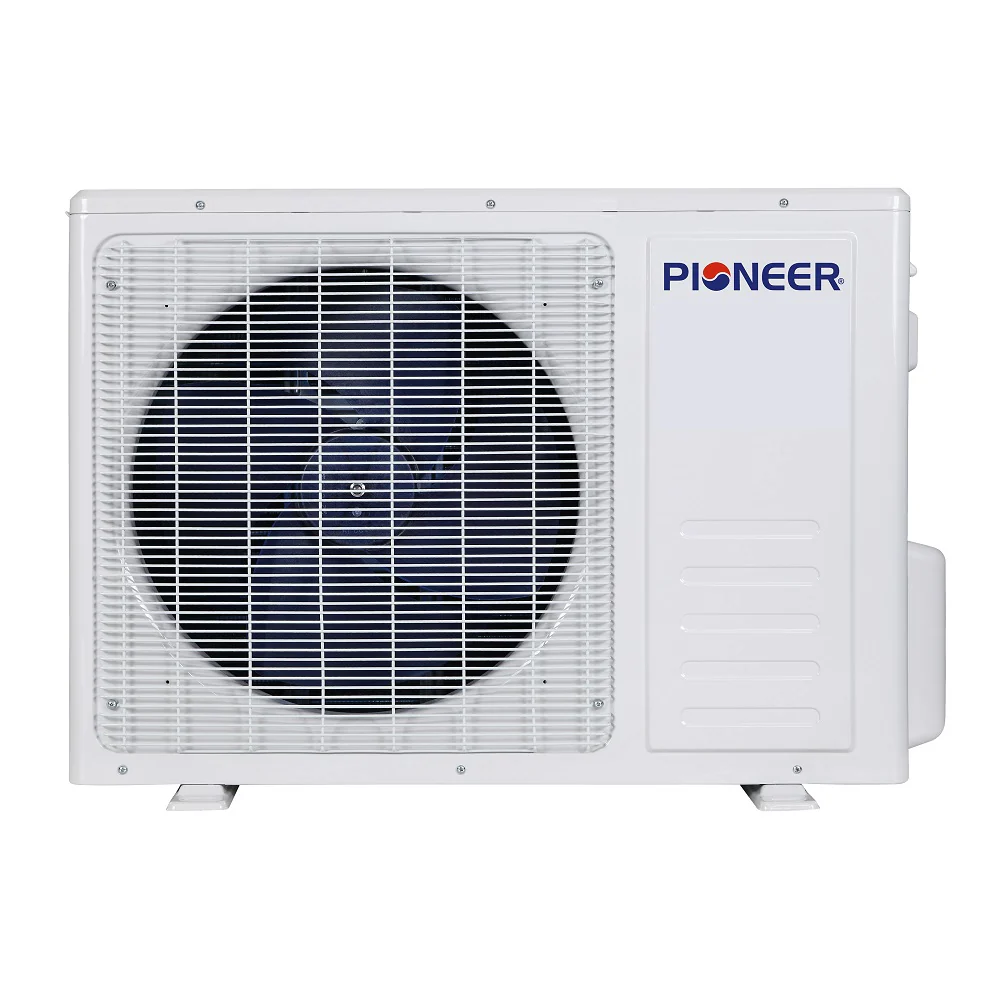

Outdoor Unit Data

  • Part Number: YN012ALFI22RPD
  • Sound Level: 52 dB(A)
  • Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
  • Carton Dimensions (WDH): 33-1/2  x 14-1/8 x 24 Inches
  • Net / Gross Weight: 60.4 / 65.5 lbs
  • Electrical Circuit Size: 20A (single-pole)

Manuals & Documents

  • Sales Brochure
  • Technical Brochure
  • Submittal Sheet
  • User & Installation Manual
  • Service Manual
  • WiFi Pairing Instructions
  • Parts Diagrams
  • AHRI Certificate
  • Energy Guide
