Pioneer® 24,000 BTU Ducted Central Split Inverter+ Air Handler Unit Inside Section 230V
Overview
Summary
Air Handler Unit indoor section of DYR1824GMFI18R set series.
This is not a full system, only the partial section of a complete set!
Highlights
- Compatible with any standard 24V wall thermostat
- Universal match for all AC heat pumps of matching capacity
- Dual electric racks accept 5, 7.5, and 10kW electric heaters

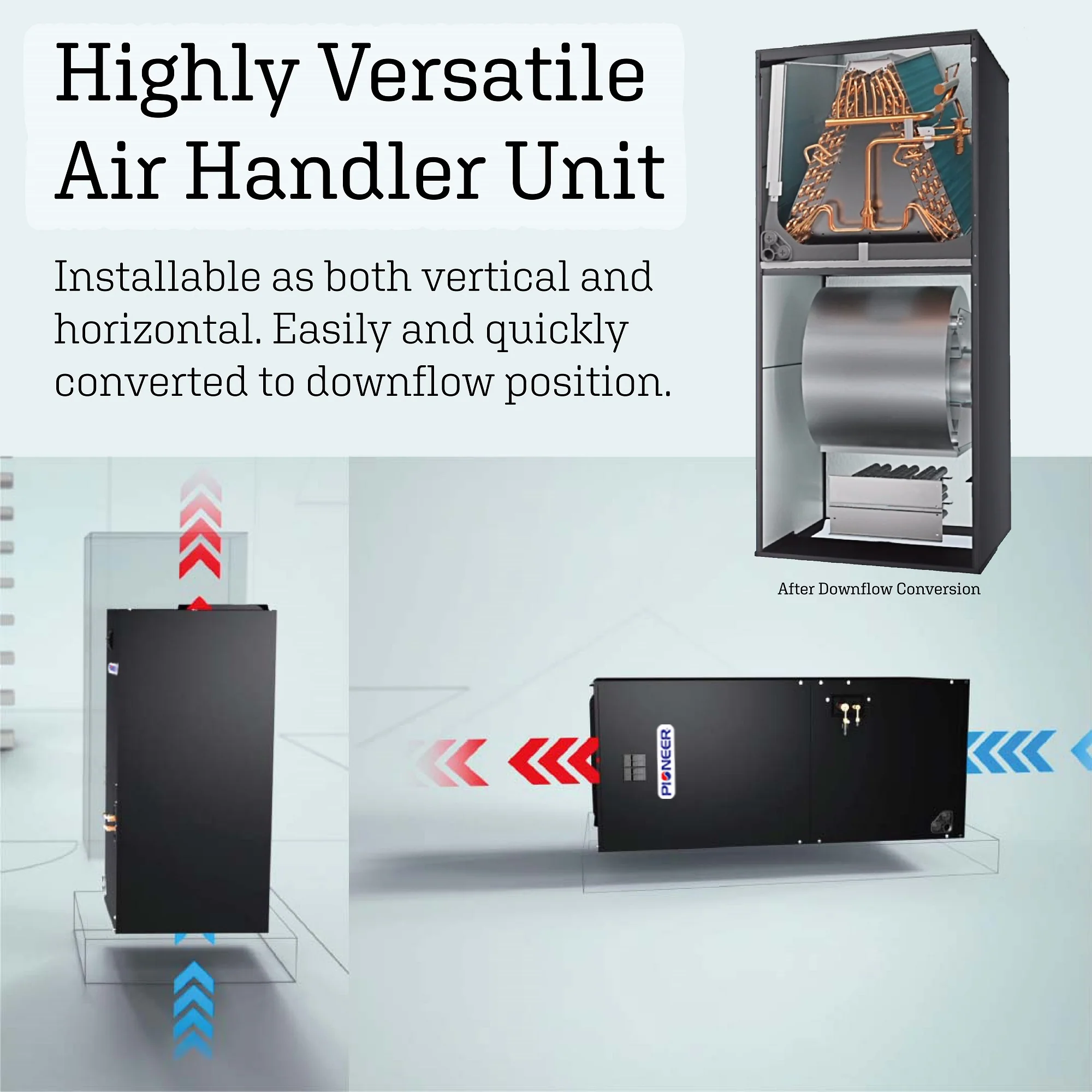

- Multi-position, field convertible (vertical, horizontal, downflow)
Outdoor Unit Data
- Model: DR024GHFD18HT2
- Sound Level: 55 dB(A)
- Throttle Type: TXV
- Net Dimensions (WDH): 19-5/8 x 21-5/8 x 46-1/8 Inches
- Carton Dimensions (WDH): 22-1/2 x 21-5/8 x 49-5/8 Inches
- Net / Gross Weight: 135.5 / 158.6 Lbs
Manuals & Downloads
- Series Technical Brochure
- Indoor Section Installation Manual
- Indoor Section Service Manual
Overview
Summary
Air Handler Unit indoor section of DYR1824GMFI18R set series.
This is not a full system, only the partial section of a complete set!
Highlights
- Compatible with any standard 24V wall thermostat
- Universal match for all AC heat pumps of matching capacity
- Dual electric racks accept 5, 7.5, and 10kW electric heaters
- Multi-position, field convertible (vertical, horizontal, downflow)
Outdoor Unit Data
- Model: DR024GHFD18HT2
- Sound Level: 55 dB(A)
- Throttle Type: TXV
- Net Dimensions (WDH): 19-5/8 x 21-5/8 x 46-1/8 Inches
- Carton Dimensions (WDH): 22-1/2 x 21-5/8 x 49-5/8 Inches
- Net / Gross Weight: 135.5 / 158.6 Lbs
Manuals & Downloads
- Series Technical Brochure
- Indoor Section Installation Manual
- Indoor Section Service Manual
$431.90
Original: $1,234.00
-65%Pioneer® 24,000 BTU Ducted Central Split Inverter+ Air Handler Unit Inside Section 230V—
$1,234.00
$431.90Description
