Overview

Summary

• Ultra High Efficiency Inverter++ floor console split heat pump system
• Cooling capacity: 16,000 BTU/H with 22.4 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 17,000 BTU/H with 10.4 HSPF2 / 3.00 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor Console Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit

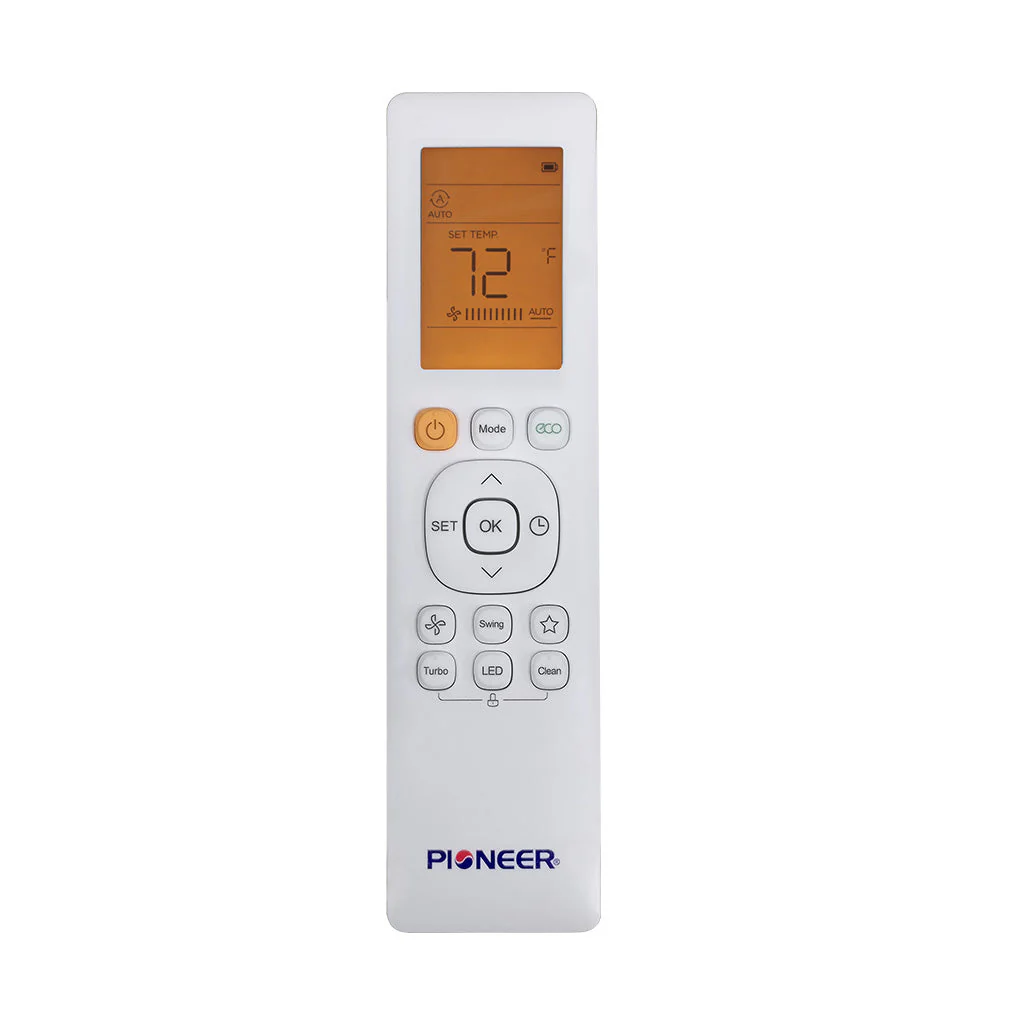

• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 16,000 BTU/h
• Cooling Capacity Range: 6,600~17,200 BTU/h
• Cooling SEER2: 22.4 BTU/W.hr
• Cooling EER2: 12.5 BTU/W.hr
• Heating Rated Capacity: 17,000 BTU/h
• Heating Capacity Range: 6,800~21,6800 BTU/h
• Heating HSPF: 10.4 BTU/w
• Refrigerant Type: R410a
• Suitable Area: 350~600 Sq.F

Indoor Unit Data

• Model Number: FB018GMFILDFHE
• Air Flow (Hi/Med/Lo): 500 / 441 / 382 / 323 CFM
• Sound Level (Hi/Med/Lo): 45.0 / 43.5 / 30.5 dB(A)
• Net Dimensions (WDH): 31-1/4 x 7-7/8 x 24-1/2 Inches
• Carton Dimensions (WDH): 34 x 11 x 28-1/4 Inches
• Net / Gross Weight: 32.8 / 41.5 Lbs

Outdoor Unit Data

• Model Number: YN018GMFI22RPE
• Sound Level: 58 dB(A)
• Breaker Needed: 20A (double-pole)
• Expansion Device Type: EXV
• Net Dimensions (WDH): 35 x 13-1/2 x 26-1/2 Inches
• Carton Dimensions (WDH): 39-1/4 x 15-5/8 x 29-1/8 Inches
• Net / Gross Weight: 94.4 / 101 Lbs

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• FYB018GMFILCAD Submittal Sheet
• Series Service Manual
• AHRI Certificate
• Energy Guide
