Pioneer® 56,000 BTU 17 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation

Product image 1
1 / 7
+2

Pioneer® 56,000 BTU 17 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation

Overview

Summary

  • Ultra High Efficiency Inverter+ central ducted split heat pump system
  • Cooling capacity: 56,000 BTU/H with 17 SEER2 / 8.25 EER2 efficiency
  • Heating capacity: 56,000 BTU/H with 8.5 HSPF2 / 3.1 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Central Ducted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Communicating system with dedicated signal transmission
  • Includes Electric Strip Heater
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $422.00
    • Heating: $1184.00

[[SERIES]]

What's Included

  • Indoor Unit (Downflow-capable, with TXV)

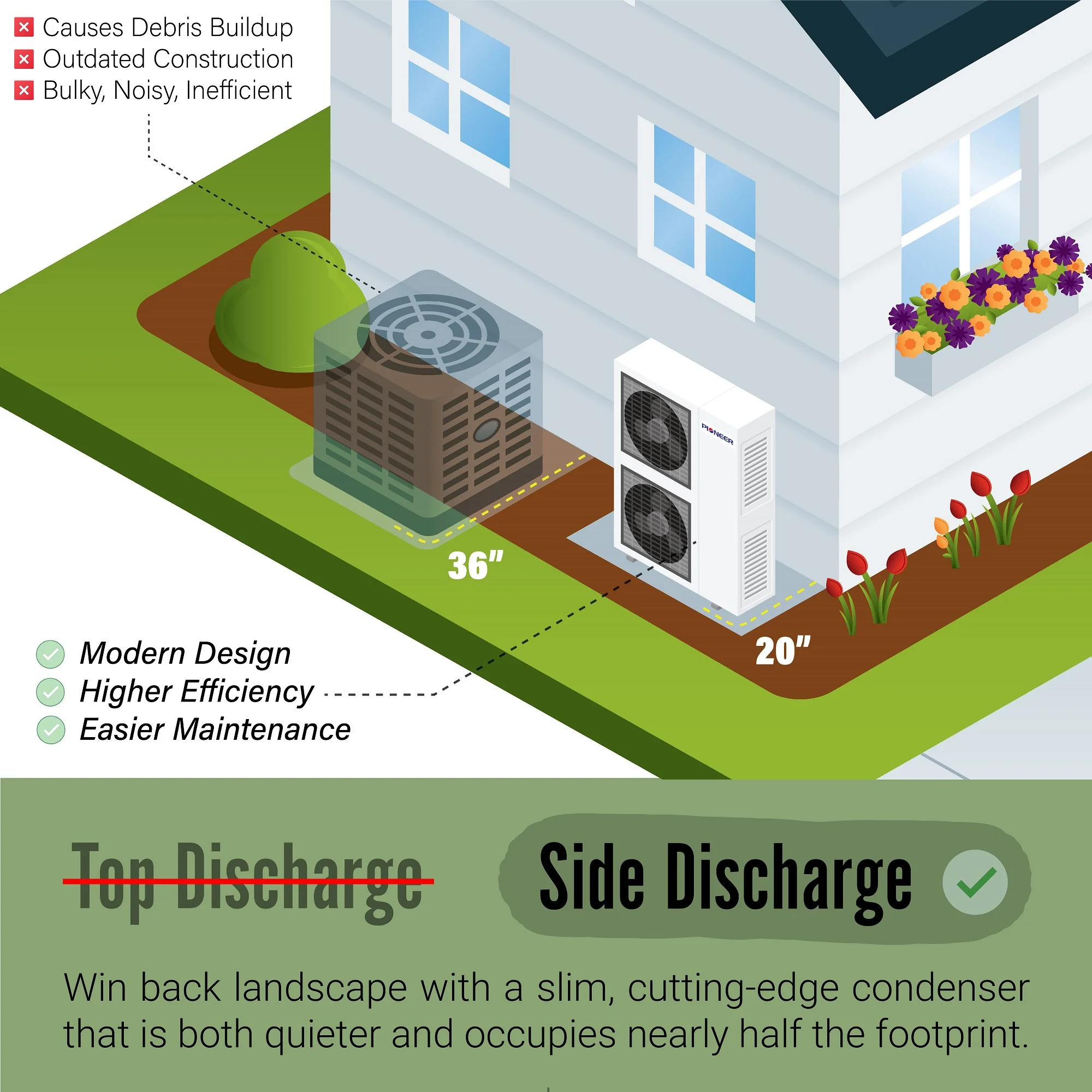

  • Outdoor Unit (Side-Discharge, with filter drier)
  • Electric Strip Heater (10 kW)
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 years compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Max Cooling Rated Capacity (Min~Max): 56,000 (18,300~59,400) BTU/h
  • Cooling SEER2: 17 BTU/W.h
  • Cooling EER2: 8.25 BTU/W.h
  • Max Heating Rated Capacity (Min~Max): 56,000 (17,600 ~ 57,500) BTU/h
  • Heating HSPF2 (Region IV): 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.1 / 1.86 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 2,000 Sq.F

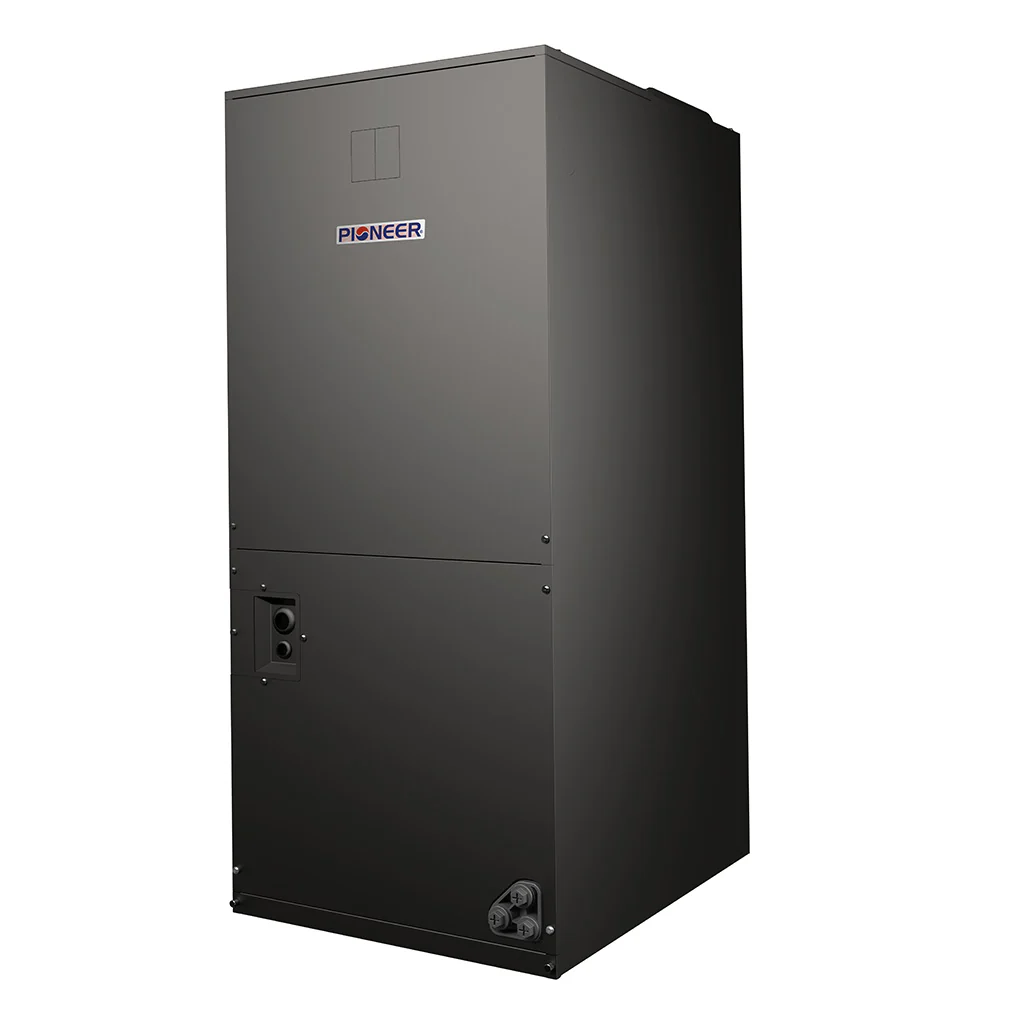

Indoor Unit Data

  • Model: DR060GHFD18HT2
  • Air Flow: 1706 CFM
  • Sound Level: 65 dB(A)
  • Fan Motor Type: Multi-Speed ECM
  • Net Dimensions (WDH): 22 × 24 × 53-7/8 Inches
  • Carton Dimensions (WDH): 25-1/4 × 28 × 55-1/2 Inches
  • Net / Gross Weight: 187 / 214 Lbs

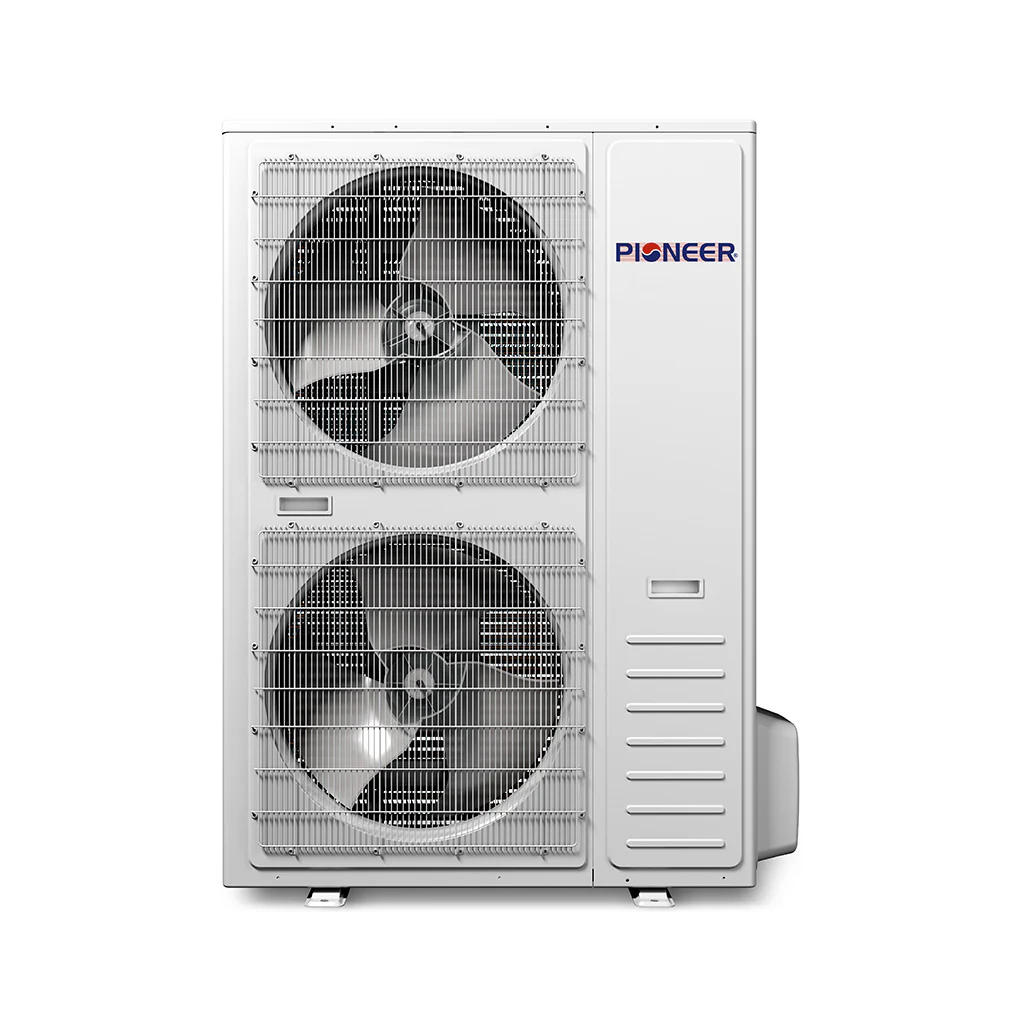

Outdoor Unit Data

  • Model: YH4860GHFD18R2
  • Sound Level: 60 dB(A)
  • Metering Device: EXV
  • Net Dimensions (WDH): 37-3/8 × 13-3/8 × 54-1/2 Inches
  • Carton Dimensions (WDH): 43-3/4 ×18-1/8 × 60-1/4 Inches
  • Net / Gross Weight: 251 / 278 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Indoor Section Installation Manual
  • Outdoor Section Installation Manual
  • Indoor Section Service Manual
  • Outdoor Section Service Manual
  • DYR4860GMFI18R Submittal Sheet
  • AHRI Certificate
  • Energy Guide
