Pioneer® 9,000 BTU 19.2 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Product image 1
1 / 5

Pioneer® 9,000 BTU 19.2 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

  • Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
  • Cooling capacity: 9,000 BTU/H with 19.2 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 10,000 BTU/H with 10.2 HSPF2/ 3.62 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Ceiling Concealed Ducted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $57.00
    • Heating: $184.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit

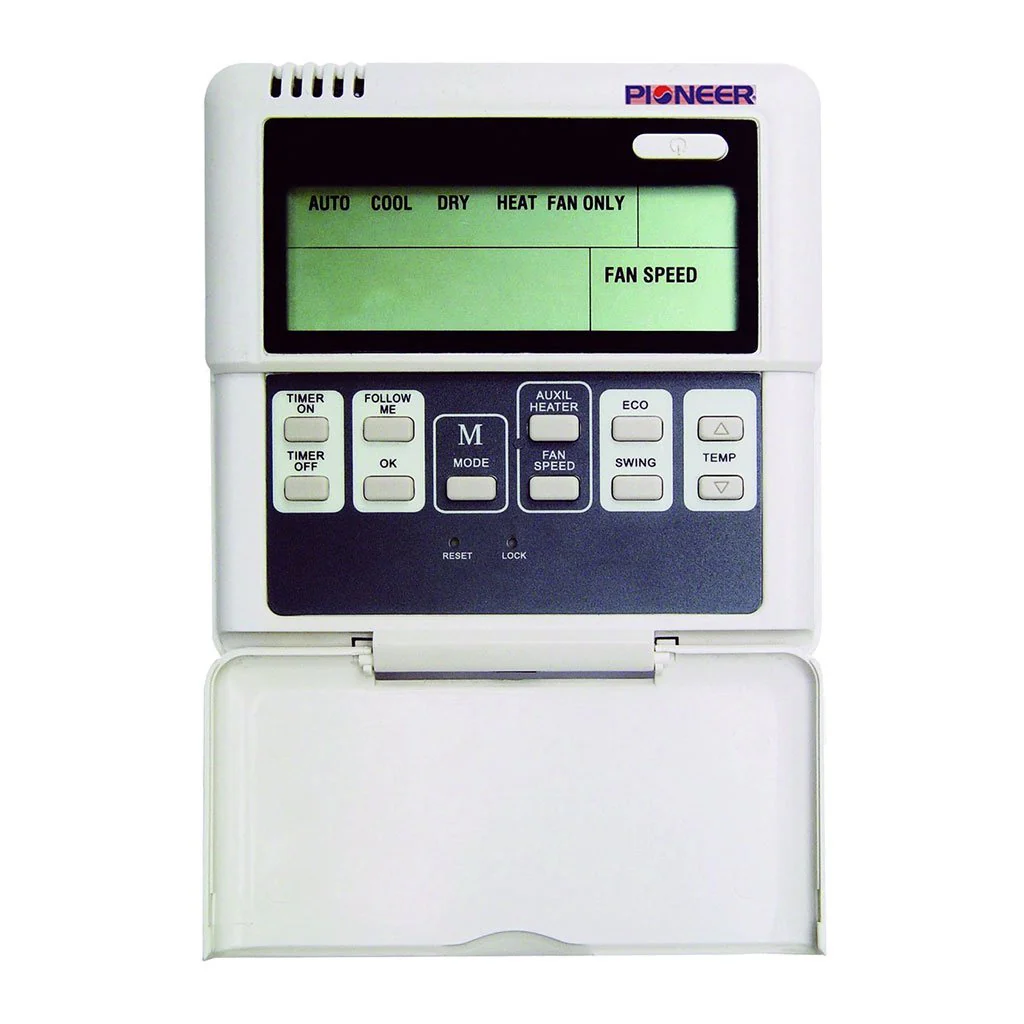

  • Wire Remote Control

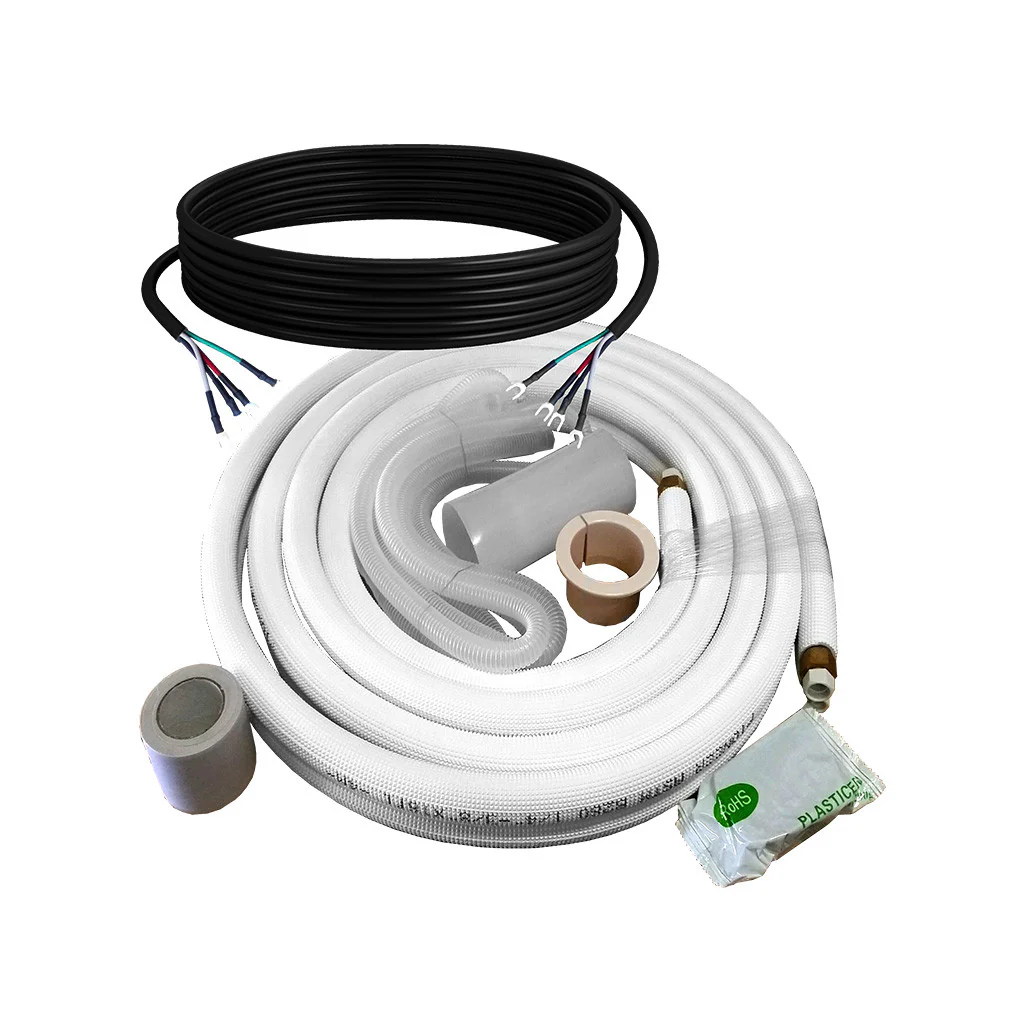

  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 2,220~11,600 BTU/h
  • Cooling SEER2: 19.2 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 10,000 BTU/h
  • Heating Capacity Range: 2,240~13,350 BTU/h
  • Heating HSPF2 (Region IV/V): 10.2 / 8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.62 / 2.09 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 100~350 Sq.F

Indoor Unit Data

  • Part Number: RB009GMFILDFHD
  • Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
  • External Static Pressure: 0.0~0.16 Inch WC
  • Sound Level (Hi/Med/Lo): 33.5 / 28.5 / 27.0 dB(A)
  • Net Dimensions (WDH): 27"-1/2 x 20" x 7"-7/8
  • Carton Dimensions (WDH): 33"-7/8 x 21"-1/4 x 11"-1/4
  • Net / Gross Weight: 39.0 / 48.3 Lbs

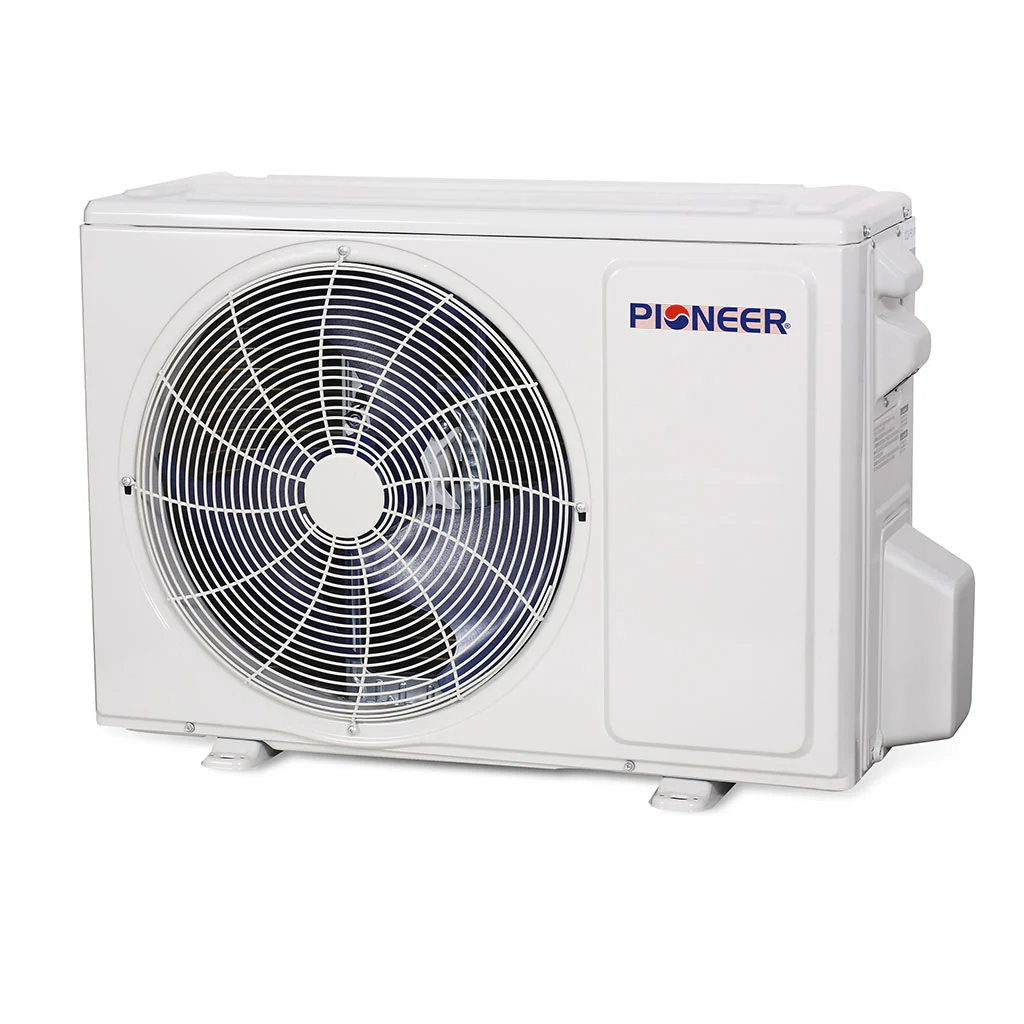

Outdoor Unit Data

  • Part Number: YN009GMFI22RPE
  • Sound Level: 54.5 dB(A)
  • Breaker Needed: 15A (double-pole)
  • Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
  • Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
  • Net / Gross Weight: 63.7 / 69.0 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Series User Manual
  • Series Technical Manual
  • Series Installation Manual
  • Series Service Manual
  • Series Disassembly Guide
  • RYB009GMFILDAD Submittal Sheet
  • AHRI Certificate
  • Energy Guide

Overview

Summary

  • Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
  • Cooling capacity: 9,000 BTU/H with 19.2 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 10,000 BTU/H with 10.2 HSPF2/ 3.62 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Ceiling Concealed Ducted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $57.00
    • Heating: $184.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wire Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 2,220~11,600 BTU/h
  • Cooling SEER2: 19.2 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 10,000 BTU/h
  • Heating Capacity Range: 2,240~13,350 BTU/h
  • Heating HSPF2 (Region IV/V): 10.2 / 8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.62 / 2.09 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 100~350 Sq.F

Indoor Unit Data

  • Part Number: RB009GMFILDFHD
  • Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
  • External Static Pressure: 0.0~0.16 Inch WC
  • Sound Level (Hi/Med/Lo): 33.5 / 28.5 / 27.0 dB(A)
  • Net Dimensions (WDH): 27"-1/2 x 20" x 7"-7/8
  • Carton Dimensions (WDH): 33"-7/8 x 21"-1/4 x 11"-1/4
  • Net / Gross Weight: 39.0 / 48.3 Lbs

Outdoor Unit Data

  • Part Number: YN009GMFI22RPE
  • Sound Level: 54.5 dB(A)
  • Breaker Needed: 15A (double-pole)
  • Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
  • Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
  • Net / Gross Weight: 63.7 / 69.0 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Series User Manual
  • Series Technical Manual
  • Series Installation Manual
  • Series Service Manual
  • Series Disassembly Guide
  • RYB009GMFILDAD Submittal Sheet
  • AHRI Certificate
  • Energy Guide
Select Installation Kit Options
From $396.55

Original: $1,133.00

-65%
Pioneer® 9,000 BTU 19.2 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V—

$1,133.00

$396.55

Description

Overview

Summary

  • Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
  • Cooling capacity: 9,000 BTU/H with 19.2 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 10,000 BTU/H with 10.2 HSPF2/ 3.62 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Ceiling Concealed Ducted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $57.00
    • Heating: $184.00
[[SERIES]]

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Wire Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 2,220~11,600 BTU/h
  • Cooling SEER2: 19.2 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 10,000 BTU/h
  • Heating Capacity Range: 2,240~13,350 BTU/h
  • Heating HSPF2 (Region IV/V): 10.2 / 8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.62 / 2.09 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 100~350 Sq.F

Indoor Unit Data

  • Part Number: RB009GMFILDFHD
  • Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
  • External Static Pressure: 0.0~0.16 Inch WC
  • Sound Level (Hi/Med/Lo): 33.5 / 28.5 / 27.0 dB(A)
  • Net Dimensions (WDH): 27"-1/2 x 20" x 7"-7/8
  • Carton Dimensions (WDH): 33"-7/8 x 21"-1/4 x 11"-1/4
  • Net / Gross Weight: 39.0 / 48.3 Lbs

Outdoor Unit Data

  • Part Number: YN009GMFI22RPE
  • Sound Level: 54.5 dB(A)
  • Breaker Needed: 15A (double-pole)
  • Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
  • Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
  • Net / Gross Weight: 63.7 / 69.0 Lbs

Manuals & Downloads

  • Series Technical Brochure
  • Series User Manual
  • Series Technical Manual
  • Series Installation Manual
  • Series Service Manual
  • Series Disassembly Guide
  • RYB009GMFILDAD Submittal Sheet
  • AHRI Certificate
  • Energy Guide
