Overview

Summary

• High Efficiency Inverter+ ceiling concealed duct split heat pump system
• Cooling capacity: 48,000 BTU/H with 15.1 SEER2 / 8.5 EER2 efficiency
• Heating capacity: 49,500 BTU/H with 9.3 HSPF2 / 3.19 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Concealed Ducted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $364.00
• Heating: $1026.00

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit

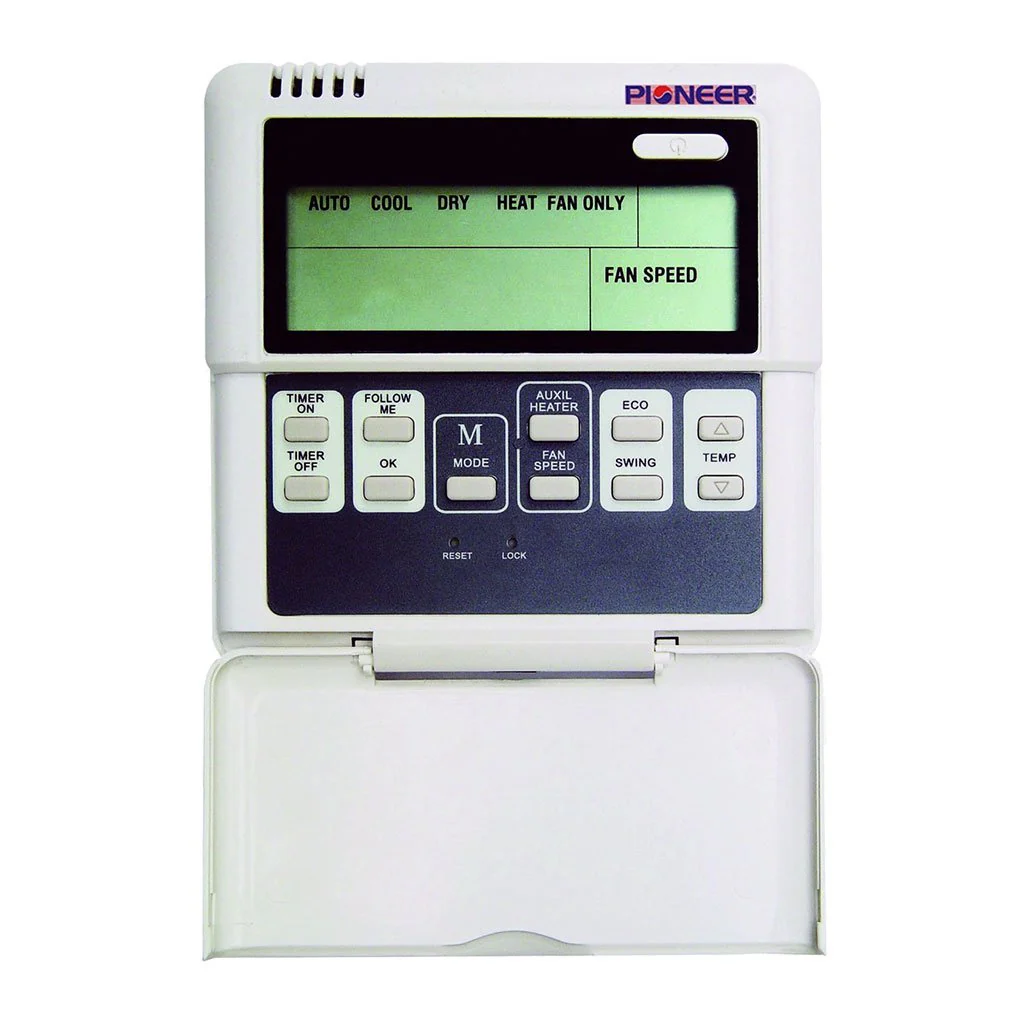

• Wire Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 48,000 BTU/h
• Cooling Capacity Range: 10,500~48,000 BTU/h
• Cooling SEER2: 15.1 BTU/W.h
• Cooling EER2: 8.5 BTU/W.h
• Heating Rated Capacity: 50,000 BTU/h
• Heating Capacity Range: 11,000~53,400 BTU/h
• Heating HSPF2 (Region IV/V): 9.3 / 7.3 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.19 / 1.91 W/W
• Refrigerant Type: R410a
• Suitable Area: 1,350~1,800 Sq.F

Indoor Unit Data

• Part Number: RB048GMFILDFHD

• Air Flow (Hi/Med/Lo): 1,228 / 1,031 / 715 CFM
• External Static Pressure: 0 ~ 0.64 Inch WC
• Sound Level (Hi/Med/Lo): 52.0 / 50.0 / 49.0 dB(A)
• Net Dimensions (WDH): 47"-1/4 x 34"-3/8 x 11"-3/4
• Carton Dimensions (WDH): 55"-1/4 x 36" x 14"

• Net / Gross Weight: 120 / 142 Lbs

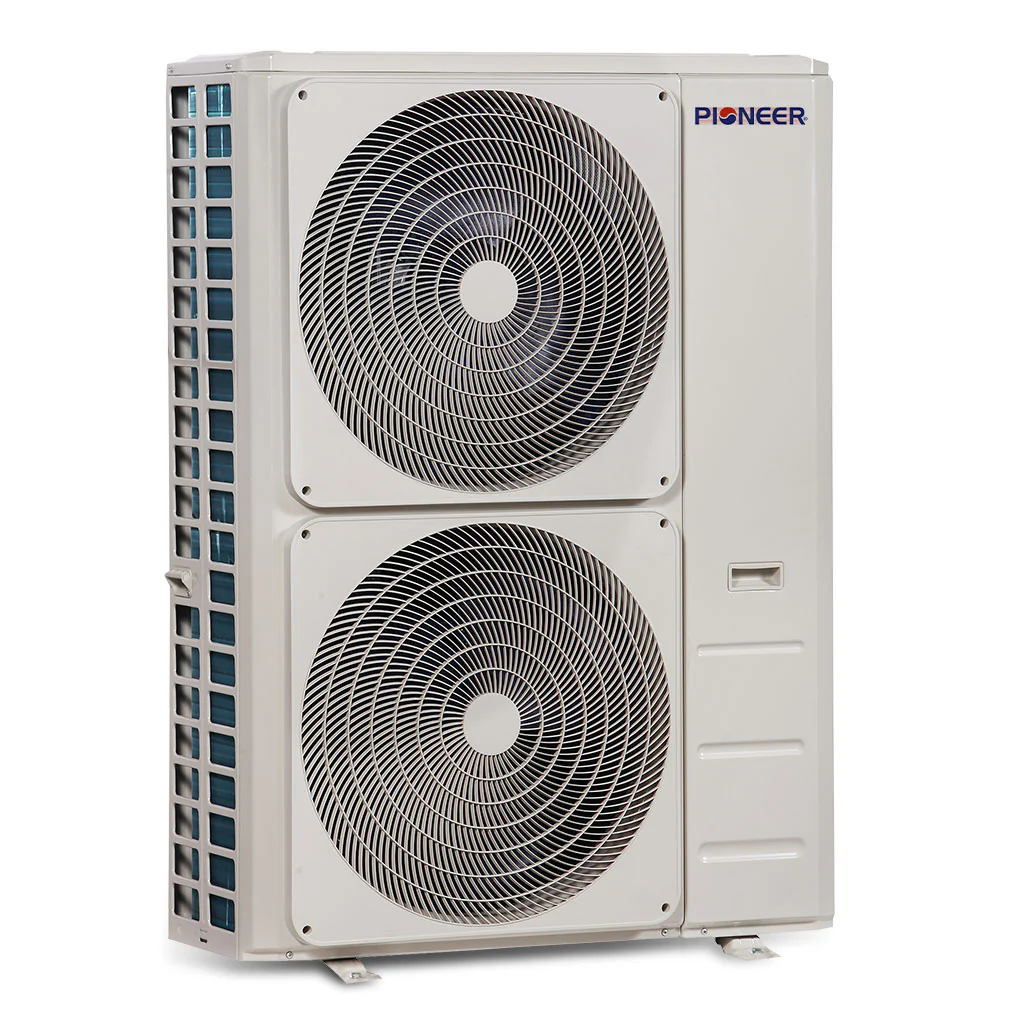

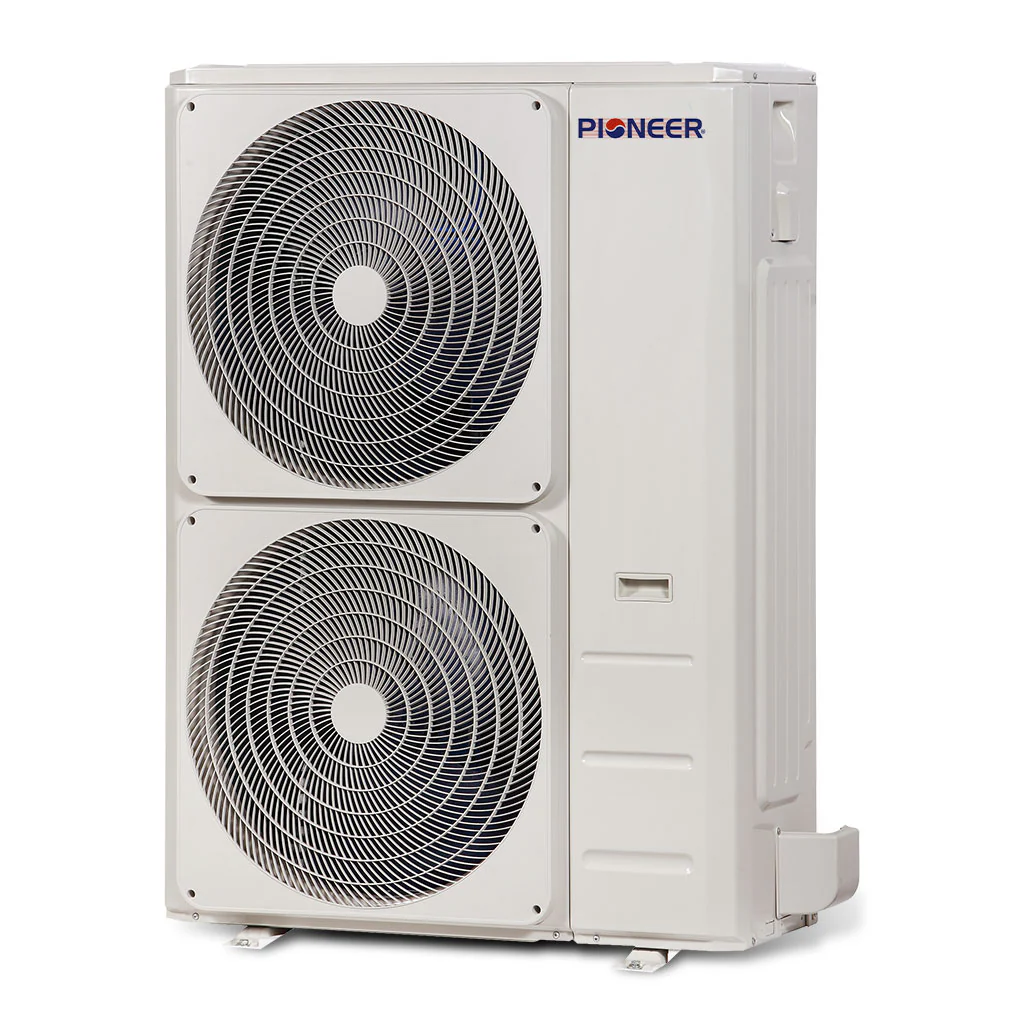

Outdoor Unit Data

• Part Number: YN048GMFI18RUE
• Sound Level: 65 dB(A)
• Breaker Needed: 40A (double-pole)
• Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2

• Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 58"-1/2

• Net / Gross Weight: 219 / 249 Lbs

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Technical Manual
• Series Installation Manual
• Series Service Manual
• Series Disassembly Guide
• RYB048GMFILDBD Submittal Sheet
• AHRI Certificate
• Energy Guide
